SQUARE D

additionnal EMC filter S6 M2 - 1-phase supply - 16 A

EMC filter Size 6 M2

SQDVW3A31403 VW3A31403 3389110689075
133.22 / EA
http://schema.org/OutOfStock

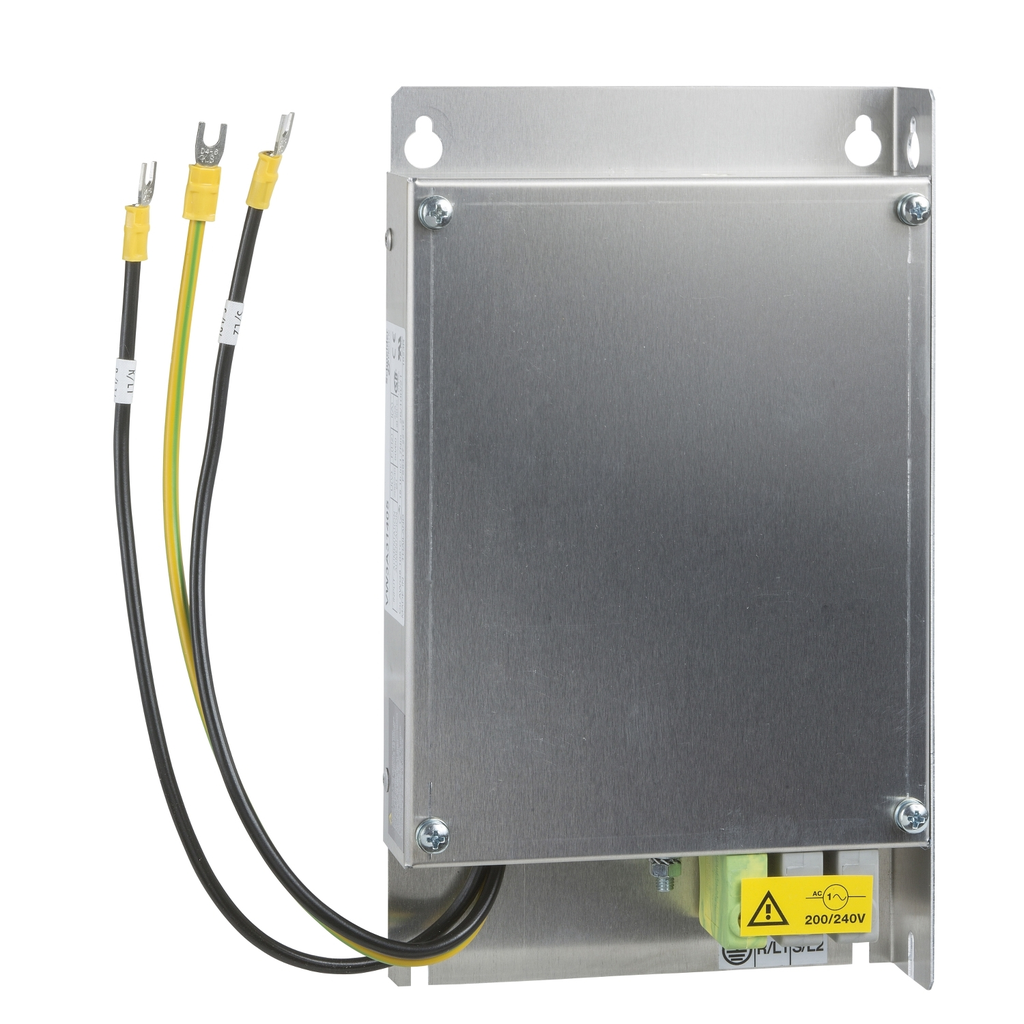

Mayer-DDS-additionnal EMC filter S6 M2 - 1-phase supply - 16 A-1
  • Country of Origin: Thailand
  • Net Weight: 0.775 kg
  • Warranty Length: 18 mth
  • Weight: 0.775 kg
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Standards : IEC 61800-3
    • Ambient Air Temperature For Operation : -10-50 °C
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 || 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 0-93 % IEC 68-2-3
    • Ip Degree Of Protection : IP20 || IP41 upper part)
    • Operating Altitude : <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Tolerance : 10 %
    • Net Weight : 0.775 kg
    • Earth Leakage Current : 150 mA 50 Hz
    • Network Rated Voltage : 200-240 V
  • Specifications
    • Country of Origin : Thailand
    • Weight : 0.775 kg
    • Range Of Product : Altivar
    • Product Compatibility : servo drive LXM230.75 kW || servo drive LXM231 kW || servo drive LXM231.5 kW || ATV312HU11M2 || ATV312HU15M2 || ATV31CU11M2 || ATV31CU15M2 || LXM05AD17F1 || LXM05AD17M2 || LXM05BD17F1 || LXM05BD17M2 || LXM05CD17M2 || variable speed drive ATV320...C1.1 kW, 200...240 V single phase || variable speed drive ATV320...C1.5 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS1.1 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS1.5 kW, 200...240 V single phase
    • Product Or Component Type : EMC input filter
    • Phase : single phase
    • Product Specific Application : radio interference input filter
    • Line Rated Current : 16 A
    • Range Compatibility : Lexium 05 || Altivar 312 || Altivar 31C || Lexium 23 Plus || Altivar 312 Solar || Altivar Machine ATV320
    • Thermal Losses : 6.9 W ATV31CU11M2
