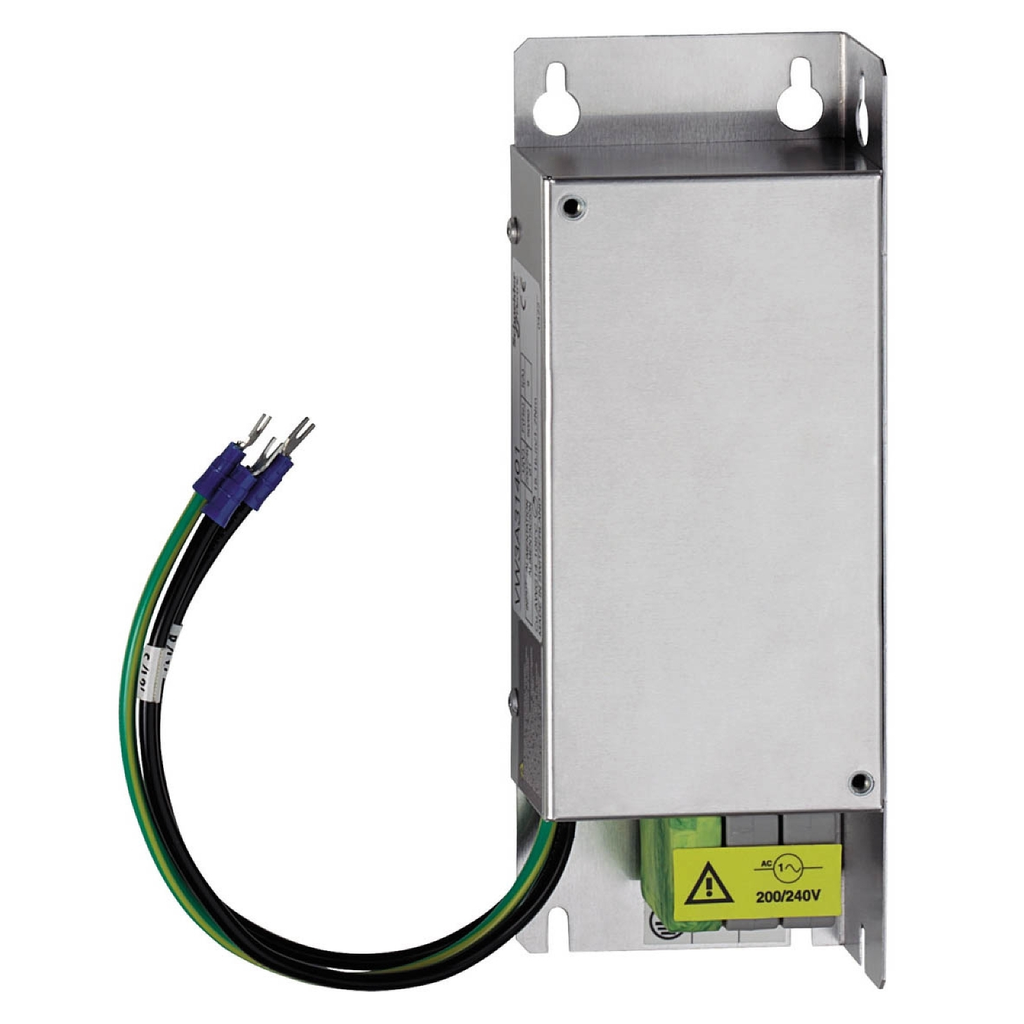

This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 9A. It is used to redu

• Range Compatibility
• Lexium SD3
• Altivar 312 Solar
• Lexium 23 Plus
• Altivar Machine ATV320
• Altivar 312
• Altivar 31C
• Lexium 05
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ip Degree Of Protection
• IP20
• IP41 upper part)
• Earth Leakage Current
• 100 mA 50 Hz
• Vibration Resistance
• 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
• 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
• 1.5 mm peak to peak (f= 3-13 Hz) conforming to IE
• Relative Humidity
• 0-93 % IEC 68-2-3
• Thermal Losses
• 3.7 W ATV31C018M2
• Operating Altitude
• <= 3280.84 ft (1000 m) without current derating
• 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Product Compatibility
• servo drive LXM230.1 kW
• servo drive LXM230.2 kW
• servo drive LXM230.4 kW
• ATV312H018M2
• ATV312H037M2
• ATV312H055M2

• Conformance Attributes
• Standards : IEC 61800-3
• Complementary Attributes
• Line Rated Current : 9:00 AM
• Network Rated Voltage : 200-240 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1929
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Persona Type Ids : EU
• Persona Type Names : End User
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Compatibility Code : LXM23
• Package Weight Lbs : 499.000 g
• Phase : single phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : EMC input filter
• Product Specific Application : radio interference input filter
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Tolerance : 10%
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : single phase
• Product Or Component Type : EMC input filter
• Range Of Product : Altivar
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=6940868&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -10-50 °C
• Ambient Air Temperature For Storage : -25-70 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Thailand
