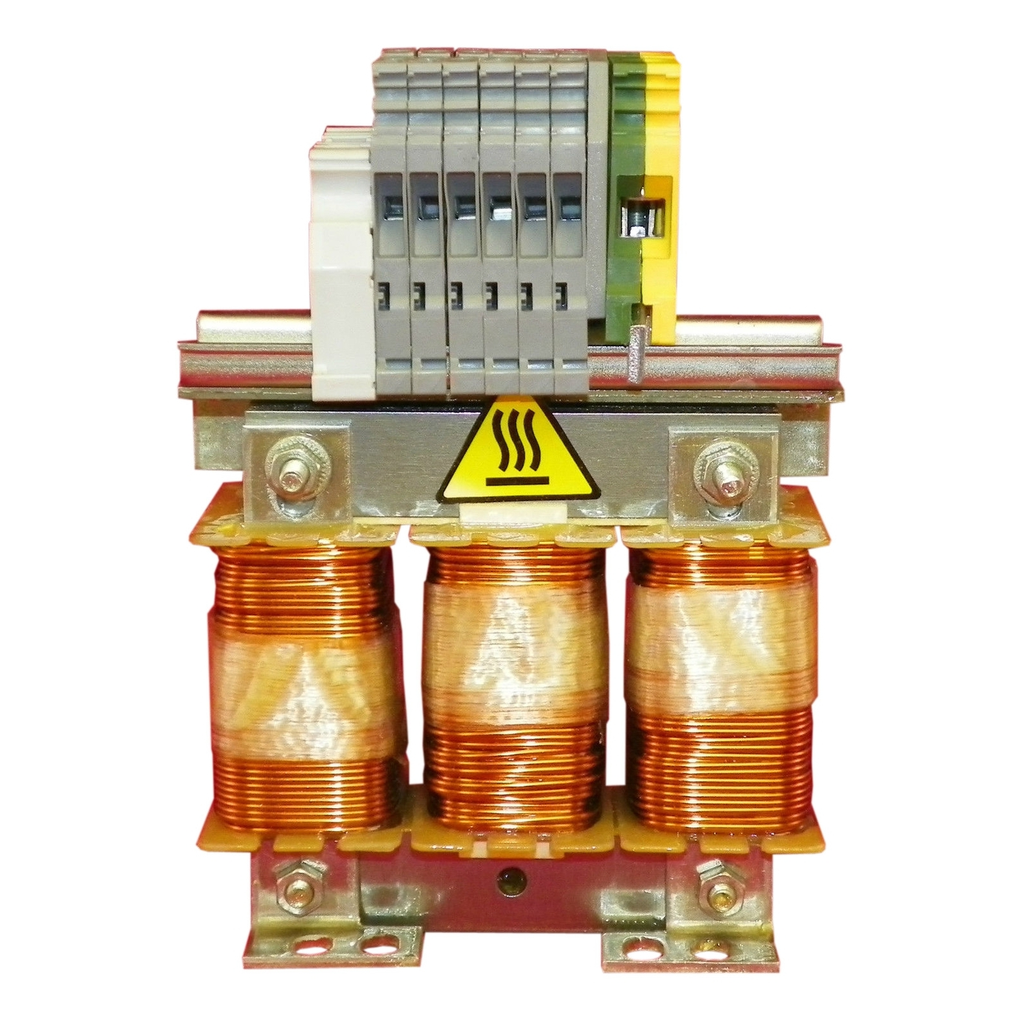

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Features
• Improved protection against overvoltages on the line supply
• Reduce the harmonic distortion of the current produced by the drive
• In line with standard EN 50178
• Easy to install

• Conformance Attributes
• Standards : VDE 0160 level 1, IEC 60076 (with HD398), EN 50178
• Complementary Attributes
• Line Rated Current : 4 A
• Maximum Voltage Drop At Rated Load : 5 %
• Minimum Clearance Distance : 5.5 mm IEC 60664
• Important Information Attributes
• Environmental Characteristic : 3B1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3S1 conforming to IEC 721-3-3
• Vibration Resistance : 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Device Application : reduction of current harmonics
• Electrical Connection : terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
• Electrical Insulation Class : class F
• Package Weight Lbs : 1.527 kg
• Phase : three phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : line/motor choke
• Range Of Product : Altivar
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Supply Frequency : 50...60 Hz
• Sustainable Packaging : No
• Accessory Separate Part Category2 : protection accessories
• Medium Desc : line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
• Stocking Flag : N
• Product Kit Identifier : N
• Leakage Distance : 11.5 mm IEC 60664
• Max Current : 1.65 x nominal current 60 s)
• Thermal Losses : 45 W
• Value Of Inductance : 10 mH
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• Ambient Air Temperature For Operation : 45-55 °C (with current derating of 2 % per °C), 0-45 °C (without current derating)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : choke IP00, terminals IP20
• Operating Altitude : <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
• Product Compatibility : variable speed drive ATV320 0.75 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 1.5 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.37 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.55 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.75 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 1.5 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV930 3 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 4 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 600 V - three phase - line choke - 3 hp - 1 per drive, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, ATV12H018F1 - motor choke - 1 per drive, ATV12H018M2 - motor choke - 1 per drive, ATV12H018M3 - motor choke - 1 per drive, ATV12H037F1 - motor choke - 1 per drive, ATV12H037M2 - motor choke - 1 per drive, ATV12H037M3 - motor choke - 1 per drive, ATV12H055M2 - motor choke - 1 per drive, ATV12P037F1 - motor choke - 1 per drive, ATV12P037M2 - motor choke - 1 per drive, ATV12P037M3 - motor choke - 1 per drive, ATV12P055M2 - motor choke - 1 per drive, ATV312H018M3 - line choke - 1 per drive, ATV312H037M3 - line choke - 1 per drive, ATV312H037N4 - line choke - 1 per drive, ATV312H055M3 - line choke - 1 per drive, ATV312H055N4 - line choke - 1 per drive, ATV312H075M3 - line choke - 1 per drive, ATV312H075N4 - line choke - 1 per drive, ATV312H075S6 - line choke - 1 per drive, ATV312HU11N4 - line choke - 1 per drive, ATV312HU15N4 - line choke - 1 per drive, ATV312HU15S6 - line choke - 1 per drive, ATV32H037N4 - line choke - 1 per drive, ATV32H055N4 - line choke - 1 per drive, ATV32H075N4 - line choke - 1 per drive, ATV32HU11N4 - line choke - 1 per drive, ATV32HU15N4 - line choke - 1 per drive, ATV61H075M3 - line choke - 1 per drive, ATV61H075N4 - line choke - 1 per drive, ATV61HU15N4 - line choke - 1 per drive, ATV61HU30Y - line choke - 1 per drive, ATV61W075N4 - line choke - 1 per drive, ATV61W075N4C - line choke - 1 per drive, ATV61WU15N4 - line choke - 1 per drive, ATV61WU15N4C - line choke - 1 per drive, ATV71H037M3 - line choke - 1 per drive, ATV71H075M3 - line choke - 1 per drive, ATV71H075N4 - line choke - 1 per drive, ATV71HU15N4 - line choke - 1 per drive, ATV71HU22Y - line choke - 1 per drive, ATV71HU30Y - line choke - 1 per drive, ATV71P075N4Z - line choke - 1 per drive, ATV71PU15N4Z - line choke - 1 per drive, ATV71W075N4 - line choke - 1 per drive, ATV71WU15N4 - line choke - 1 per drive, ATV61HU22S6X - line choke - 1 per drive, ATV71HU15S6X - line choke - 1 per drive, ATV71HU22S6X - line choke - 1 per drive, ATV31C037N4 - line choke - 1 per drive, ATV31C055N4 - line choke - 1 per drive, ATV31C075N4 - line choke - 1 per drive, ATV31CU11N4 - line choke - 1 per drive, ATV31CU15N4 - line choke - 1 per drive, variable speed drive ATV310 0.37 kW - line choke - 1 per drive, variable speed drive ATV310 0.75 kW - line choke - 1 per drive, variable speed drive ATV340 0.75 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV320 0.37 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.55 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 1.1 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.18 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 0.75 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 2.2 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV630 2.2 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 3 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 4 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 2.2 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 600 V - three phase - line choke - 3 hp - 1 per drive, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 5.5 kW
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -25-70 °C
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• General Attributes
• Phase : three phase
• Product Or Component Type : line/motor choke
• Range Of Product : Altivar
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, United States
• Depth : 60 mm
