High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector

HTL Encoder Card ATV900

SQDVW3A3424 VW3A3424 3606481211491
177.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector-1
  • Connection Type: 1 Removable Spring Connector

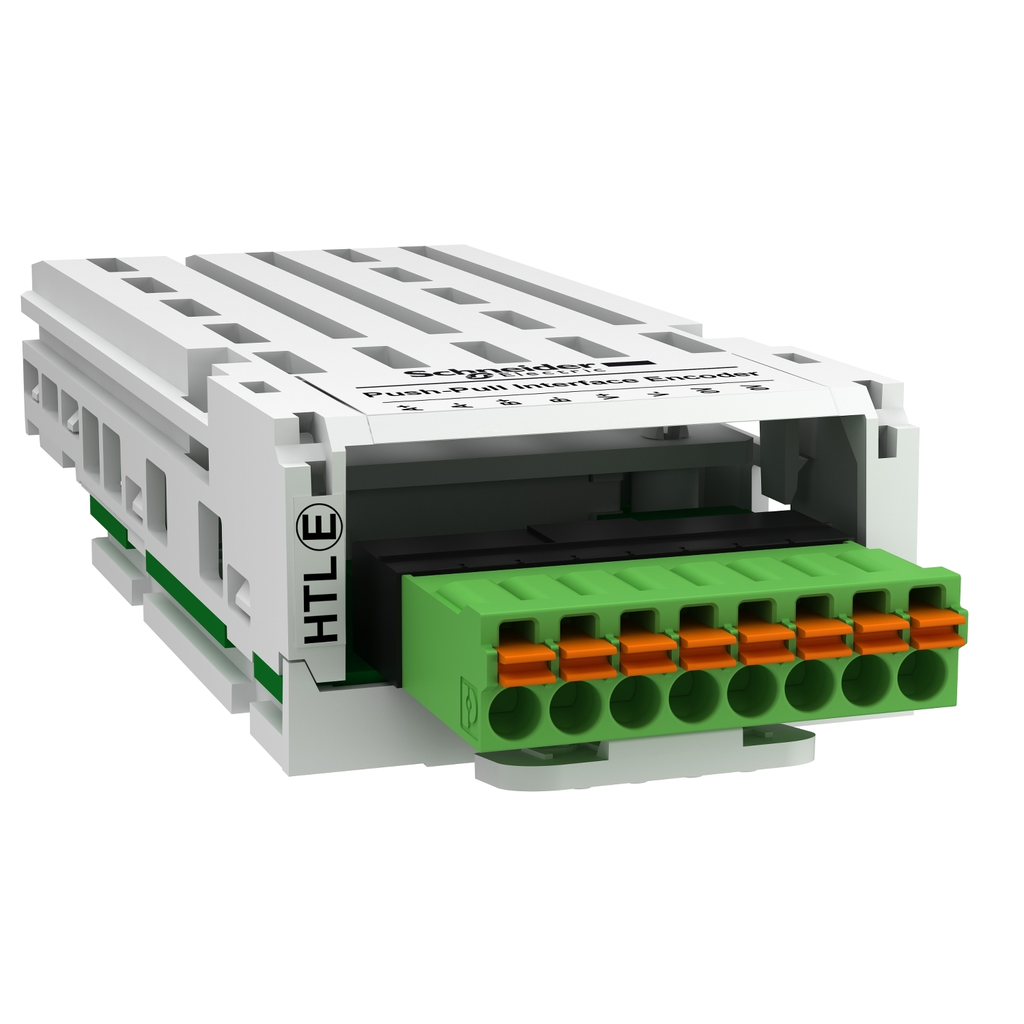

This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
QTY
  • Product Description
  • Features
  • Specifications
This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
  • Features
    • For variable speed drives
    • Short circuit and overload protection
    • 1 removable spring connector
    • Easy to install
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Supply Current : 0.2 A 12 V DC, 0.175 A 15 V DC, 0.1 A 24 V DC
    • Maximum Cable Distance Between Devices : 500 m
    • Maximum Operating Frequency : 300 kHz
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, SI
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    • Protection Type : short-circuit protection, overload protection
    • Us Rated Supply Voltage2 : 12 V DC, 15 V DC, 24 V DC
    • Us Rated Supply Voltage5 : 12 V DC, 15 V DC, 24 V DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Connector Type : 1 removable spring connector
    • Encoder Type : high threshold logic (HTL)
    • Package Weight Lbs : 144.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : encoder interface module
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
    • Medium Desc : High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2010018EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2010018EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2010018EN
  • General Attributes
    • Product Or Component Type : encoder interface module
    • Range Of Product : Altivar
  • Input Attributes
    • Input Signal : open collector PNP A, open collector NPN A, push-pull differential A/AB/B, push-pull single ended AB, push-pull single ended A, open collector differential A/AB/B, open collector PNP AB, open collector NPN AB
  • Specifications
    • Country of Origin : Sweden, Singapore
