communication module Modbus TCP and Ethernet IP, Altivar, 10 or 100Mbps, 2 x RJ45 connectors

ETHERNET IP OPTION MODULE

SQDVW3A3616 VW3A3616 3606480177590
374.72 / EA
http://schema.org/OutOfStock

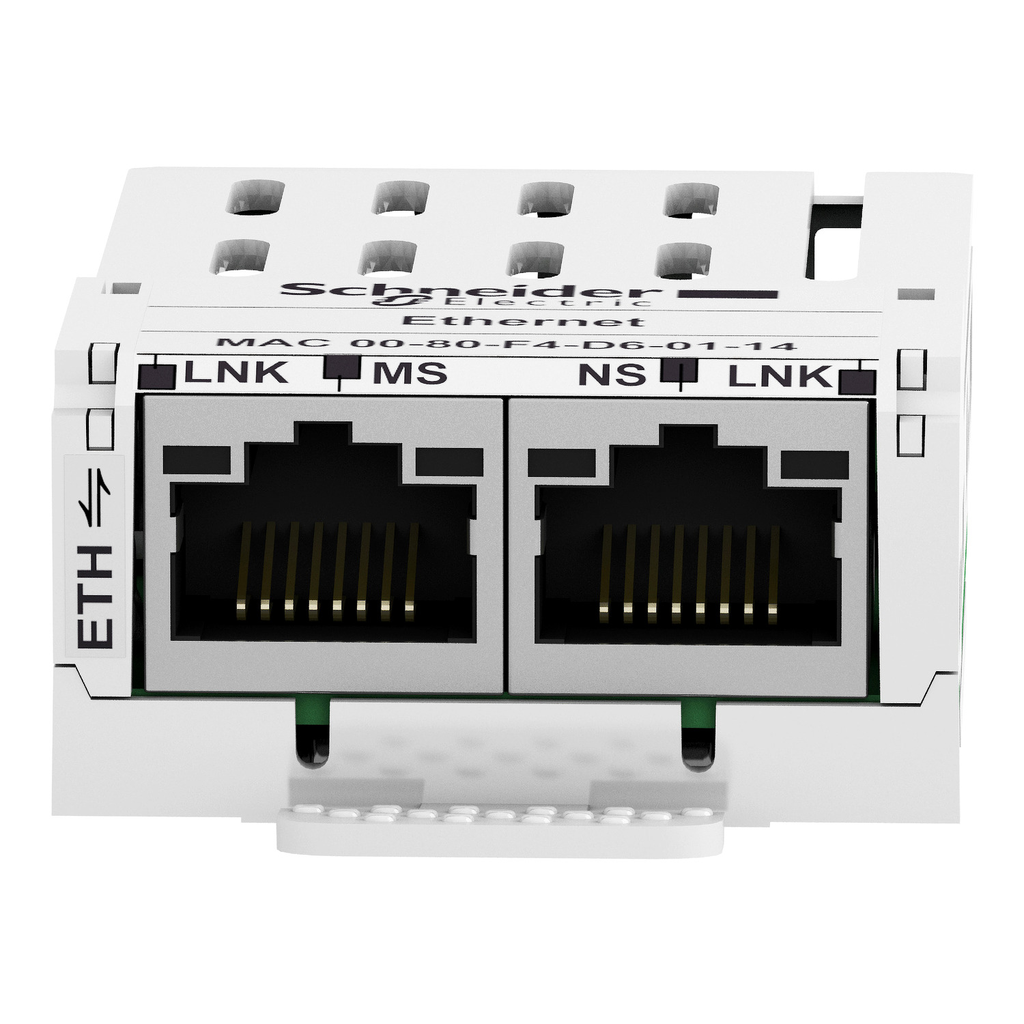

Mayer-DDS-communication module Modbus TCP and Ethernet IP, Altivar, 10 or 100Mbps, 2 x RJ45 connectors-3
  • Country of Origin: China
  • Warranty Length: 18 mth
This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates
QTY
  • Product Description
  • Features
  • Specifications
This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates
  • Range Compatibility
    • Altivar Machine ATV320
    • Altivar 32
    • Lexium 32
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communication Service
    • up to 8 connections (includes connections of Modbus TCP/Ethernet IP) Ethernet IP/Modbus TCP
    • FDR Agent Ethernet IP/Modbus TCP
    • read
  • Carbon Footprint Of The Installation Phase A5
    • 0.0021703128
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0271175564
  • Electrical Connection
    • 1 connector RJ45, EtherNet/IP
    • 1 connector RJ45, Modbus TCP
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 1.6977560453
  • Communication Port Protocol
    • Modbus TCP
    • EtherNet/IP
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0.00059042
  • Display Type
    • 1 LED MS (Module Status)
    • 1 LED NS (Network Status)
    • 1 LED Ethernet port activity
    • 1 LED Modbus TCP port activity
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0077414428
    • 0 kg CO2 eq.
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 4/4/2025
    • Html Descr : Ethernet TCP/IP Communication ModuleRange of Product: AltivarElectrical Connection: 1 connector RJ45 Ethernet/IP, 1 connector RJ45 Modbus TCPTransmission Rate: 10/100 Mbps
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Manufacturing Carbon Footprint : 1.697756045
    • Distribution Carbon Footprint : 0.007741443
    • Installation Carbon Footprint : 0.002170313
    • Use Carbon Footprint : 0.00059042
    • End Of Life Carbon Footprint : 0.027117556
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1851
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Addressing : IP addressing manual, BOOTP or DHCP
    • Exchange Mode : half duplex and full duplex
    • Package Weight Lbs : 60.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : communication module
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Transmission Rate : 10/100 Mbps
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 1.735375777
    • Accessory Separate Part Category : communication accessories
    • Relationshiptype : Compatible relationship
    • Accessories : VW3A3600
  • General Attributes
    • Product Or Component Type : communication module
    • Range Of Product : Altivar
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=20748478&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.735375777
    • Environmental Disclosure : ENVPEP2010006EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : Lexium 32M
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
