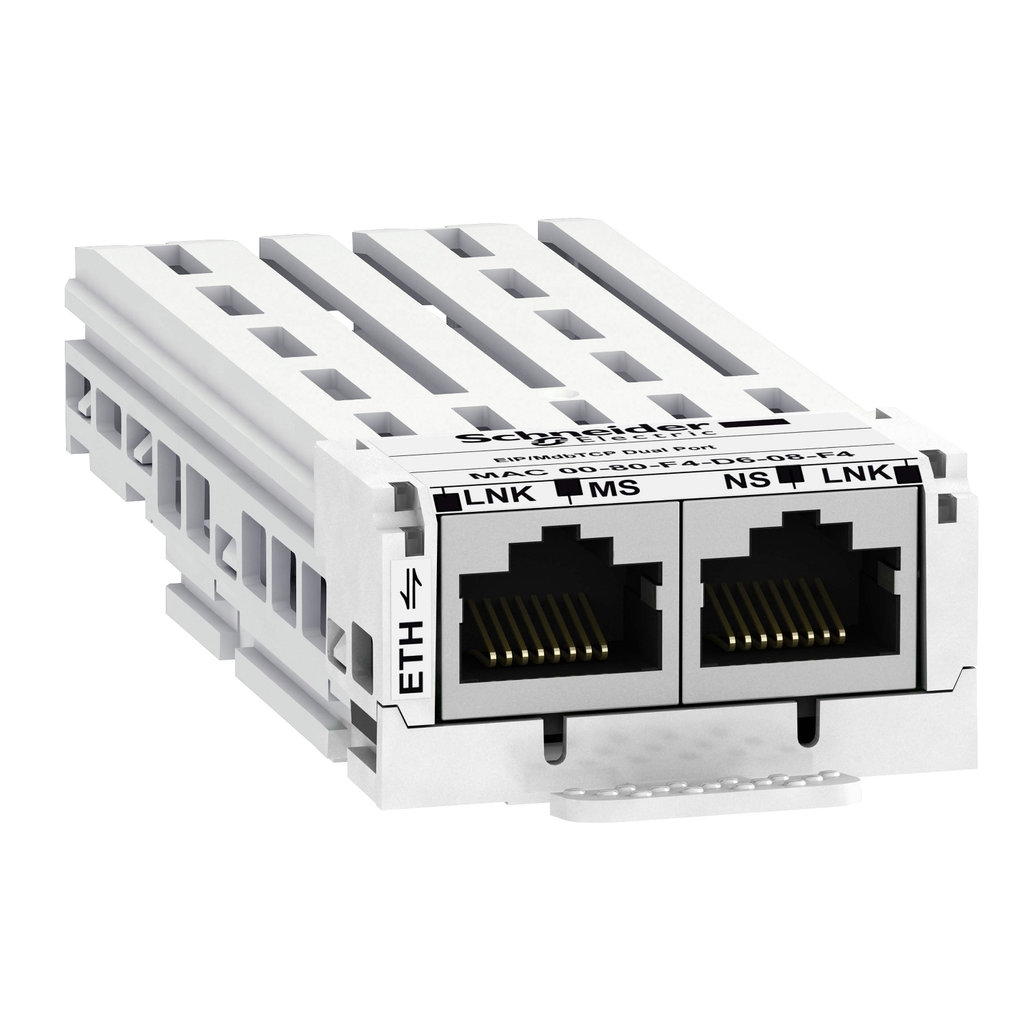

This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Port Protocol : Modbus TCP, EtherNet/IP
• Communication Service : SNMP agent Ethernet IP, Modbus TCP server Ethernet IP/Modbus TCP, Ethernet/IP adapter Ethernet IP, RSTP support Ethernet IP, FTP Ethernet IP, ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP, auto-MDIX Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP, FDR Ethernet IP/Modbus TCP
• Communication Network Type : IPv6 (internet protocol)
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
• Bus Profile : CIP AC Drive, CiA 402
• Display Type : 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX (Transmit/Receive port 1), 1 LED TX/RX (Transmit/Receive port 2)
• Web Services : save/restore drive configuration, drive setting and diagnostic, energy monitoring, widgets (ID, control, data table, diagnostic, charts), upgrade drive firmware, customizable home page, drive monitor, pump function setting and monitoring, Ethernet setting and diagnostic
• Carbon Footprint Of The Distribution Phase A4 : 0.019262, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.067473
• Carbon Footprint Of The Installation Phase A5 : 0.0054001, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 4.2243
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.00059042
• Certificate Agency : ODVA, Achilles level 2
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 4.2243
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1929
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Electrical Connection : 2 connectors RJ45, Ethernet IP/Modbus TCP
• Exchange Mode : half duplex and full duplex
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range Of Product : Altivar
• Returnability : Yes
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Time Synchronisation Protocol : SNTP
• Topology : daisy chain
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Transmission Rate : 10/100 Mbps
• Web Server : embedded HTTP server
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 4.317
• Warranty In Months : 18
• Pep Code : ENVPEP2010006EN
• Database Version : 2016-11
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : To link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 0.001
• Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
• Energy Model - Installation [A5] : Electricity Mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity Mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; AC; < 1kV; EU-27
• Recyclability Potential, In % : 13
• Air Pollution (M3) Total Life Cycle : 418.07
• Air Pollution (M3) Manufacturing [A1-a3] : 415.85
• Air Pollution (M3) End Of Life [C1-c4] : 1.0928
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle : 41.826
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 41.356
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 0.1243
• Global Warming (Kg.Equivalent.Co2) Total Life Cycle : 4.317
• Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] : 4.2243
• Hazardous Waste Disposed Of (Kg) Total Life Cycle : 23.904
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 23.749
• Non-hazardous Waste Disposed Of (Kg) Total Life Cycle : 1.5352
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 1.5227
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 55.242
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 54.739
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 56.985
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 56.48
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 0.1507
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 1.7431
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 1.7414
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 2.0998
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 2.0998
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 53.142
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 52.639
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 1.4907
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 1.489
• Water Pollution (M3) Total Life Cycle : 561.06
• Water Pollution (M3) Manufacturing [A1-a3] : 554.36
• Water Pollution (M3) Distribution [A4] : 3.1676
• Water Pollution (M3) End Of Life [C1-c4] : 2.7058
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 4.317
• Environmental Disclosure : ENVPEP2010006EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2010006EN
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : Altivar
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Specifications
• Country of Origin : Indonesia, Singapore, United States
