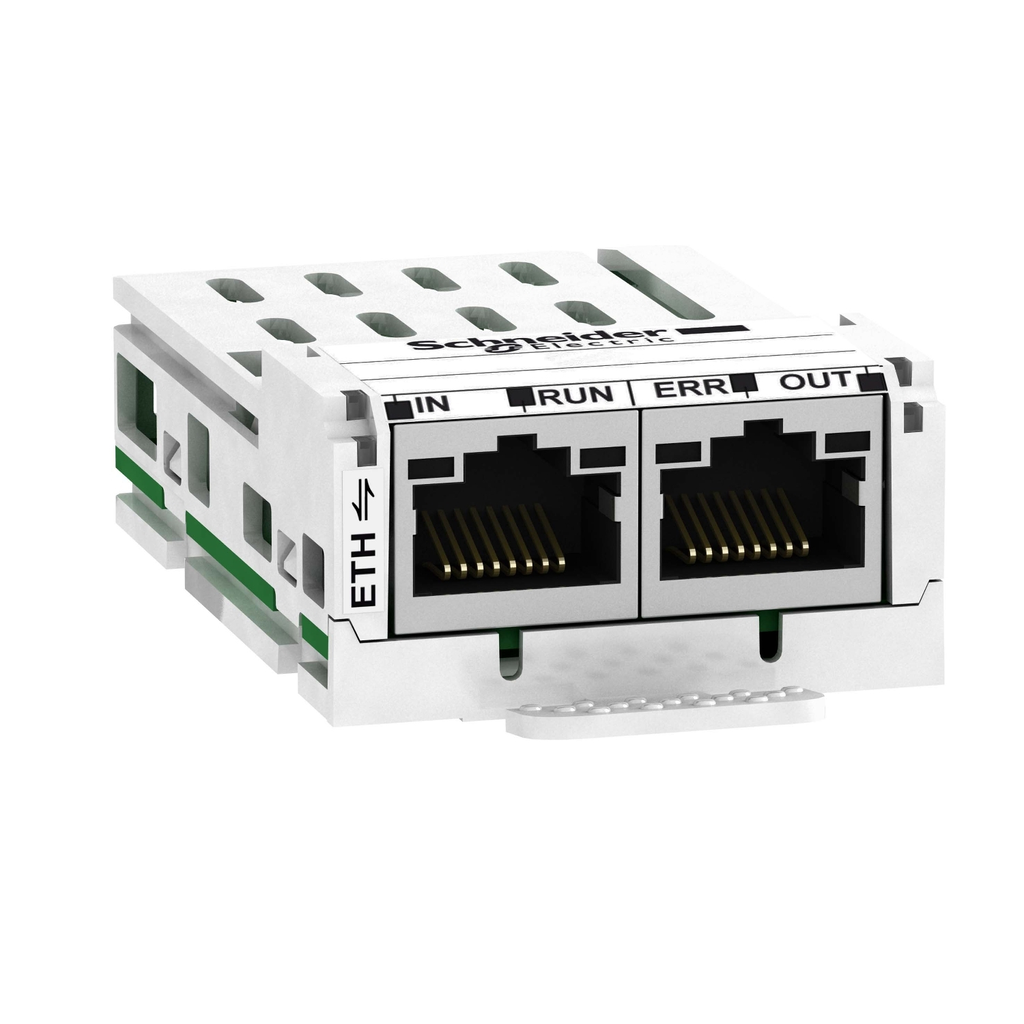

This Schneider Electric Altivar EtherCAT communication module has 2 ports with RJ45 connectors. This communication module enables integration of your drive in your EtherCAT process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV930 & ATV950, Altivar 32, Lexium 32, Altivar Machine ATV320 and Altivar Machine ATV340. It weighs 0.29kg.

• Features
• Enables drives to connect easily to EtherCAT-based process control networks
• Equipped with 2 RJ45 connectors for secure and efficient communication
• Enables real-time data exchange for optimized industrial performance
• Optional for variable speed drives, ensuring easy system adaptation
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Service : PDO and SDO support, drive profile CiA 402 velocity mode IEC 61800-7-201 (CiA 402), CANopen over EtherCAT (CoE)
• Communication Port Protocol : EtherCAT
• Conformance Attributes
• Standards : IEC 61800-7-201 (CiA 402)
• Complementary Attributes
• Maximum Cable Distance Between Devices : 100 m 100 Mbps
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Display Type : 1 LED input status, 1 LED RUN, 1 LED error, 1 LED output status
• Carbon Footprint Of The Distribution Phase A4 : 0.0077414428, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0271175564
• Carbon Footprint Of The Installation Phase A5 : 0.0021703128, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.6977560453
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.00059042
• Addressing : logical addressing, node addressing, position addressing
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-24
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Electrical Connection : 2 connectors RJ45
• Package Weight Lbs : 61.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Transmission Rate : 100 Mbps
• Accessory Separate Part Category2 : communication accessories
• Medium Desc : communication module Ethercat, Altivar, 100Mbps, 2 x RJ45 connectors
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2010006EN
• Database Version : 2016-11
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
• Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.7353757774
• Environmental Disclosure : ENVPEP2010006EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : Lexium 32M
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2010006EN
• Pep Verification Date : 2020-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : Altivar
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, United States
