digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector

ENCODER INTERFACE MODULE DIGIT

SQDVW3A3420 VW3A3420 3606485441252
150.47 / EA
http://schema.org/OutOfStock

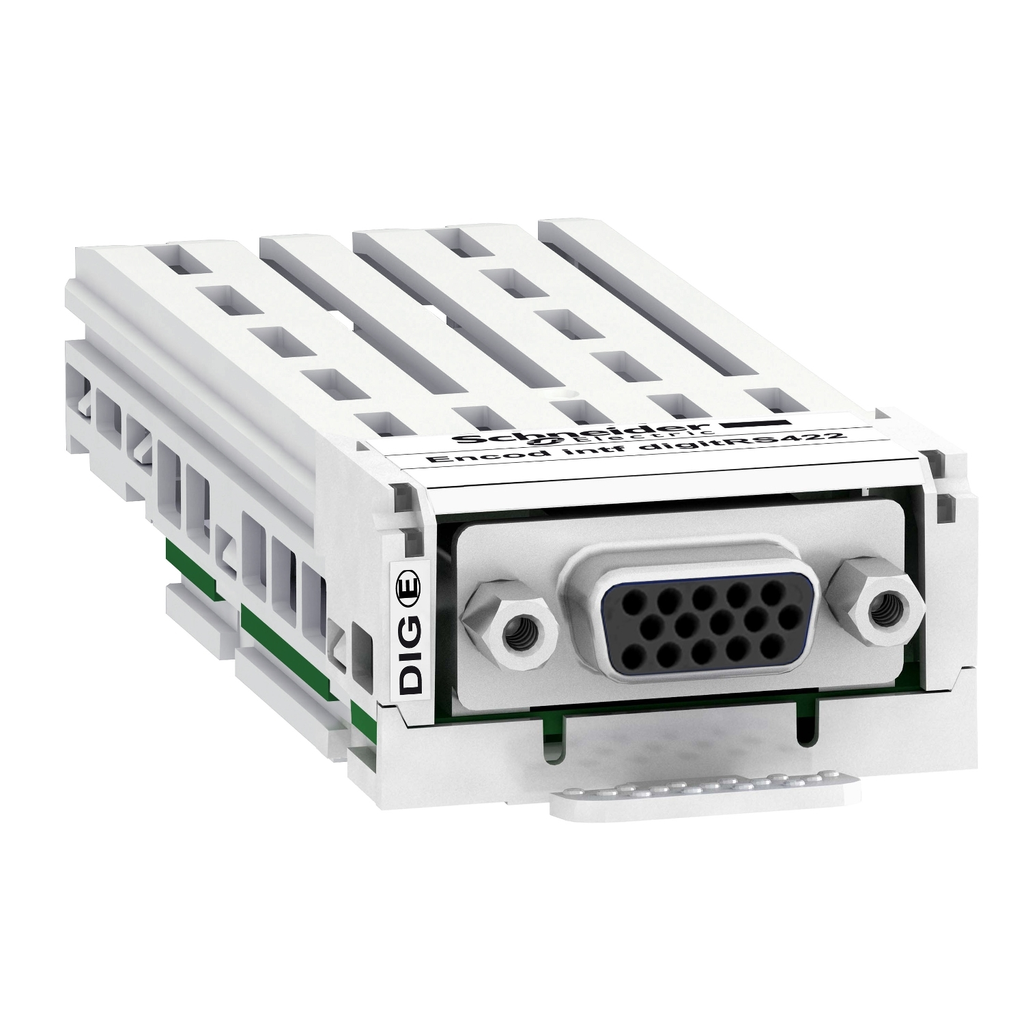

Mayer-DDS-digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector-1
  • Connection Type: 1 Female High Density SUB-D 15
This digital encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
QTY
  • Product Description
  • Features
  • Specifications
This digital encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • 121Ohm input impedance
    • 1 female high density DE-15 D-sub connectors
    • For variable speed drives
    • Short circuit and overload protection
  • Communications & Management Attributes
    • Communication Port Protocol : RS422
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : 100 m A/B/I), 50 m SSI), 100 m SSI)at 300 kHz, 50 m EnDat 2.2), 100 m EnDat 2.2)with propagation delay compensation
    • Maximum Supply Current : 0.25 A 5 V DC, 0.1 A 12 V DC, 0.1 A 24 V DC
    • Maximum Operating Frequency : 1000 kHz
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, SI
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    • Encoder Type : EnDat 2.2, A/B/I incremental XCC1 type R, A/B/I incremental XCC1 type X, SSI absolute encoder XCC2 type SG, SSI absolute encoder XCC3 type SB
    • Protection Type : short-circuit protection, overload protection
    • Us Rated Supply Voltage2 : 5 V DC 4.75-5.25 V), 12 V DC 11.4-12.6 V), 24 V DC 22.8-25.2 V)
    • Carbon Footprint Of The Distribution Phase A4 : 0.019262, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.058951
    • Carbon Footprint Of The Installation Phase A5 : 0.0067668, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 4.5611
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 102 kg CO2 eq., 102.28
    • Us Rated Supply Voltage5 : 5 V DC 4.75-5.25 V), 12 V DC 11.4-12.6 V), 24 V DC 22.8-25.2 V)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Connector Type : 1 female high density SUB-D 15
    • Package Weight Lbs : 155.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : digital encoder interface module
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 107 kg CO2 eq.
    • Medium Desc : digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2010009EN
    • Database Version : 2018-11
    • Pep Verification Date : 2020-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : To adapt the variable speed drive to specific applications. Calculation of the environmental impact is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
    • Energy Model Installation A5 2 : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    • Energy Model Use B6 2 : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 106.93
    • Environmental Disclosure : ENVPEP2010009EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2010009EN
    • Pep Verification Date : 2020-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : digital encoder interface module
    • Range Of Product : Altivar
  • Output Attributes
    • Output Signal : Clock+, Clock- SSI), Data+, Data-, Clock+, Clock- EnDat 2.2)
  • Input Attributes
    • Input Signal : Data+, Data- EnDat 2.2), Data+, Data- SSI), Temp+, Temp-, A+,A-/B+,B-/I+,I- A/B/I), TTL
    • Input Impedance : 121 Ohm
  • Specifications
    • Country of Origin : Indonesia, Sweden
