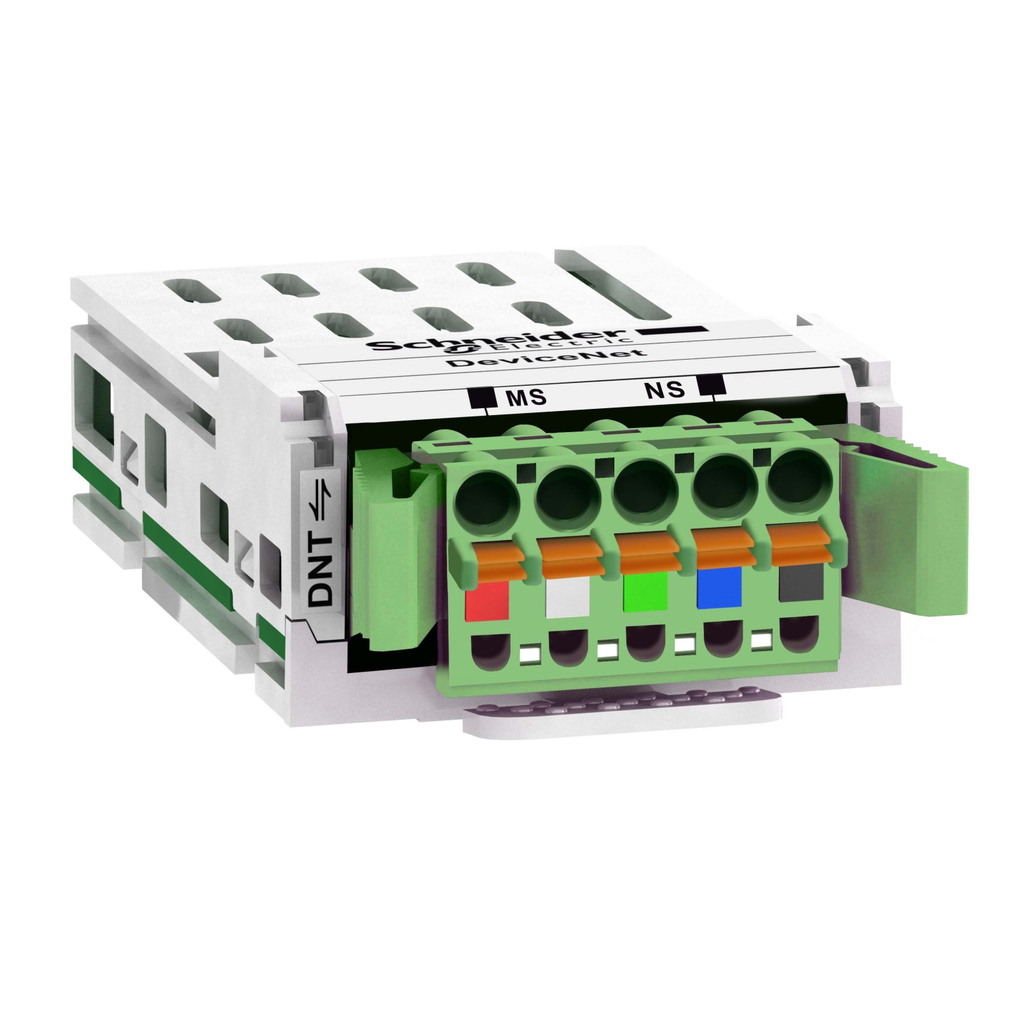

This Schneider Electric Altivar DeviceNet communication module has 1 x 5-way screw connector. This communication module enables integration of your drive in your DeviceNet process control network. It is simple to install and remove from Altivar drives th

• Range Compatibility
• Altivar Process Modular
• Altivar 32
• Altivar Process ATV600
• Altivar Machine ATV340 except Sercos drives
• Altivar Process ATV900
• Altivar Machine ATV320
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Communication Service
• inputs : polled, change of state, cyclic
• outputs : polled
• ODVA AC drive and CiA 402 profile
• auto device replacement
• communication monitoring time out adjustable by DeviceNet configurator
• Electrical Connection
• 1 connector 1 removable 5-way screw connector
• Maximum Cable Distance Between Devices
• 100 m 500 kbps
• 500 m 125 kbps
• Alarm Function
• control mode received by graphic terminal
• received instruction by graphic terminal
• Display Type
• 1 LED MS (Module Status)
• 1 LED NS (Network Status)
• Bus Profile
• CIP AC Drive
• CiA 402

• Communications & Management Attributes
• Communication Port Protocol : DeviceNet
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Html Descr : Devicenet communication module
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1851
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Persona Type Ids : EU
• Persona Type Names : End User
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Addressing : 1...63 configurable by graphic terminal/SoMove software
• Package Weight Lbs : 67.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Transmission Rate : 125 kbps, 250 kbps and 500 kbps configurable
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : Altivar
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=20748476&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2010018EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Sweden
