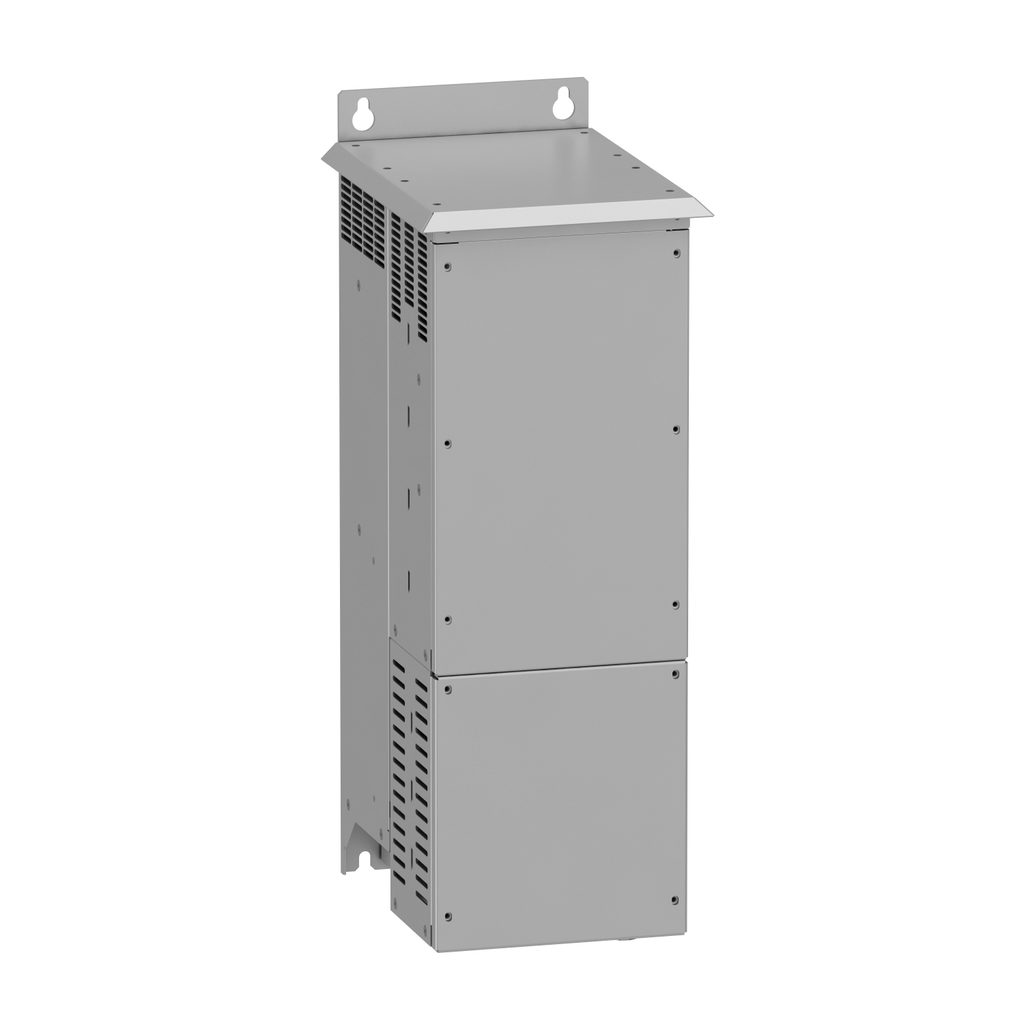

This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 2.5Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 28kg.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Braking Power : 160 kW
• Maximum Dc Bus Voltage : 850 V
• Minimum Resistor Value To Associate : 2.5 Ohm
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
• Load Factor : 0.05 320 kW at constant power and at engage threshold, 0.15 250 kW at constant power and at engage threshold, 0.5 200 kW at constant power and at engage threshold, 1 160 kW at constant power and at engage threshold
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1851
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Mechanical Robustness : vibrations class 3M4 IEC 60721-3-3
• Operating Position : vertical +/- 10 degree
• Permanent Braking Power : 100 kW at constant power and at engage threshold)
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Protection Type : integrated thermal protection thermal probe
• Returnability : Yes
• Sustainable Packaging : No
• Thermal Losses : 400 W
• Volume Of Cooling Air : 166 m3/h
• Warranty In Months : 18
• Height Nominal : 658 mm
• Width Nominal : 216 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -10-50 °C, -10-50 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP20, IP21 on top)
• Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m
• Product Compatibility : variable speed drive ATV930 without braking chopper 110 kW 380...480 V, variable speed drive ATV930 without braking chopper 130 kW 380...480 V, variable speed drive ATV930 without braking chopper 160 kW 380...480 V
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Specifications
• Country of Origin : Brazil, China, Spain, France, Sweden, United States
• Depth : 303 mm
