braking resistor, Altivar, 100Ohm, 28W, IP00

ATV 312 Braking Resistor

SQDVW3A7723 VW3A7723 3606480075827
384.66 / EA
http://schema.org/OutOfStock

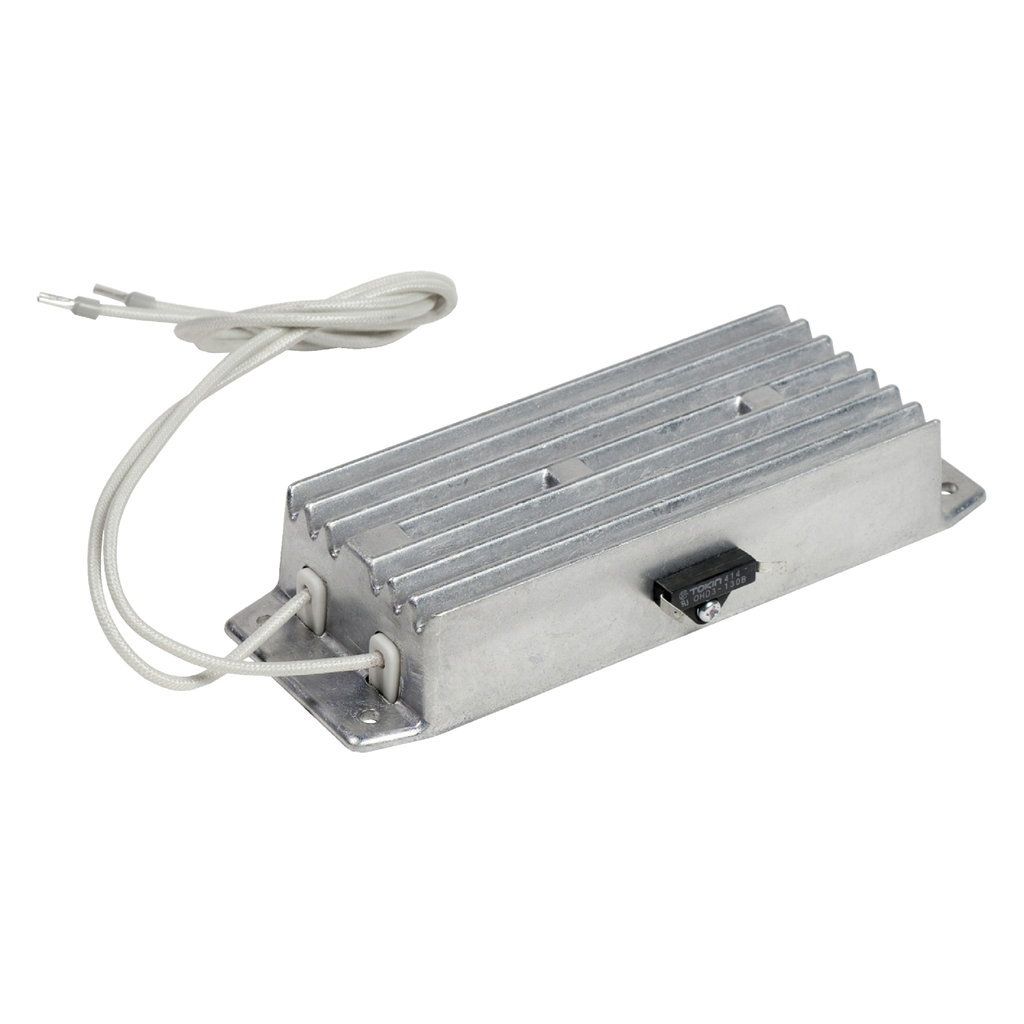

Mayer-DDS-braking resistor, Altivar, 100Ohm, 28W, IP00-1
  • Warranty Length: 18 mth
This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.
QTY
  • Product Description
  • Features
  • Specifications
This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : variable speed drive ATV310 1.5 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 2.2 kW, ATV12H018M2, ATV12H018M3, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075M2, ATV12H075M3, ATV12HU15M2, ATV12HU15M3, ATV12P037M2, ATV12P037M3, ATV12P055M2, ATV12P075M2, ATV12P075M3, ATV12PU15M3, ATV312H018M2, ATV312H018M3, ATV312H037M2, ATV312H037M3, ATV312H037N4, ATV312H055M2, ATV312H055M3, ATV312H055N4, ATV312H075M2, ATV312H075M3, ATV312H075N4, ATV312HU11M2, ATV312HU11M3, ATV312HU11N4, ATV312HU15M2, ATV312HU15M3, ATV312HU15N4, ATV312HU22N4, ATV312H075S6, ATV312HU15S6, ATV312HU22S6, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 5.5 kW
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Important Information Attributes
    • Average Power Available : 28 W 50 °C, 28 W 50 °C, 32 W 40 °C, 32 W 40 °C
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Persona Type Ids : EU
    • Persona Type Names : End User
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Ohmic Value : 100 Ohm
    • Package Weight Lbs : 667.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
    • Product Kit Identifier : N
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • General Attributes
    • Range Of Product : Altivar
