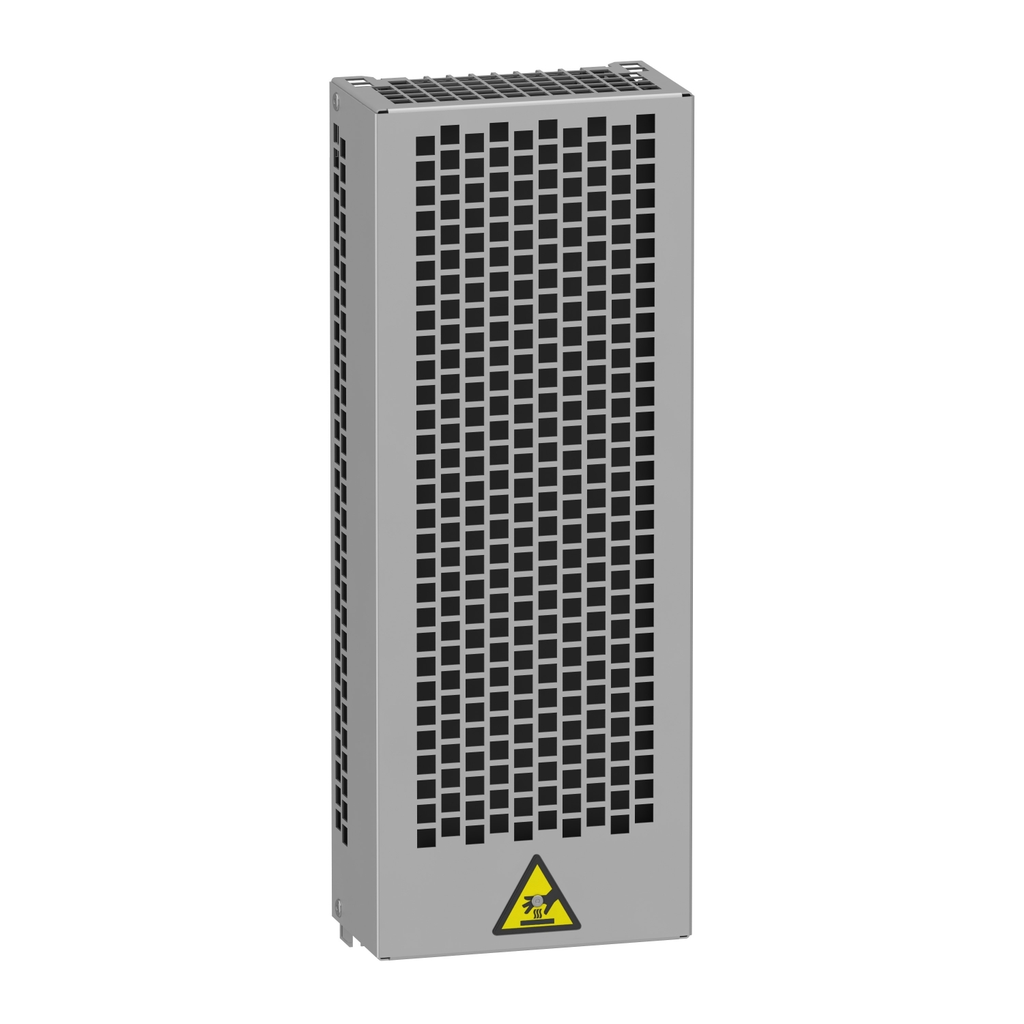

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 60Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

• Features
• Enable maximum transient braking torque
• Designed for machines with high inertia, driving loads, and machines with fast cycles
• Thermal protection via temperature-controlled switch or thermal overload relay
• Terminal electrical connection
• IP20 degree of protection
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Duty Cycle : severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Average Power Available : 0.5 kW 50 °C
• Electrical Connection : terminal <= 10 mm² / AWG 8 drive
• Ohmic Value : 60 Ohm
• Package Weight Lbs : 4.319 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via drive
• Returnability : Yes
• Sustainable Packaging : No
• Medium Desc : braking resistor, Altivar, 60Ohms, 0.5kW, IP20
• Country Of Origin 6 : US
• Stocking Flag : Y
• Product Kit Identifier : N
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : variable speed drive ATV950 wall mount 7.5 kW 380...480 V medium cycle, variable speed drive ATV340 5.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 200...240 V severe cycle, variable speed drive ATV340 4 kW 380...480 V medium cycle, variable speed drive ATV930 7.5 kW 500...690 V medium cycle, variable speed drive ATV930 11 kW 500...690 V medium cycle, variable speed drive ATV930 10 hp 600 V medium cycle, variable speed drive ATV930 15 hp 600 V medium cycle
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-70 °C
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France, Sweden
• Depth : 100 mm
• General Attributes
• Product Or Component Type : braking resistor
