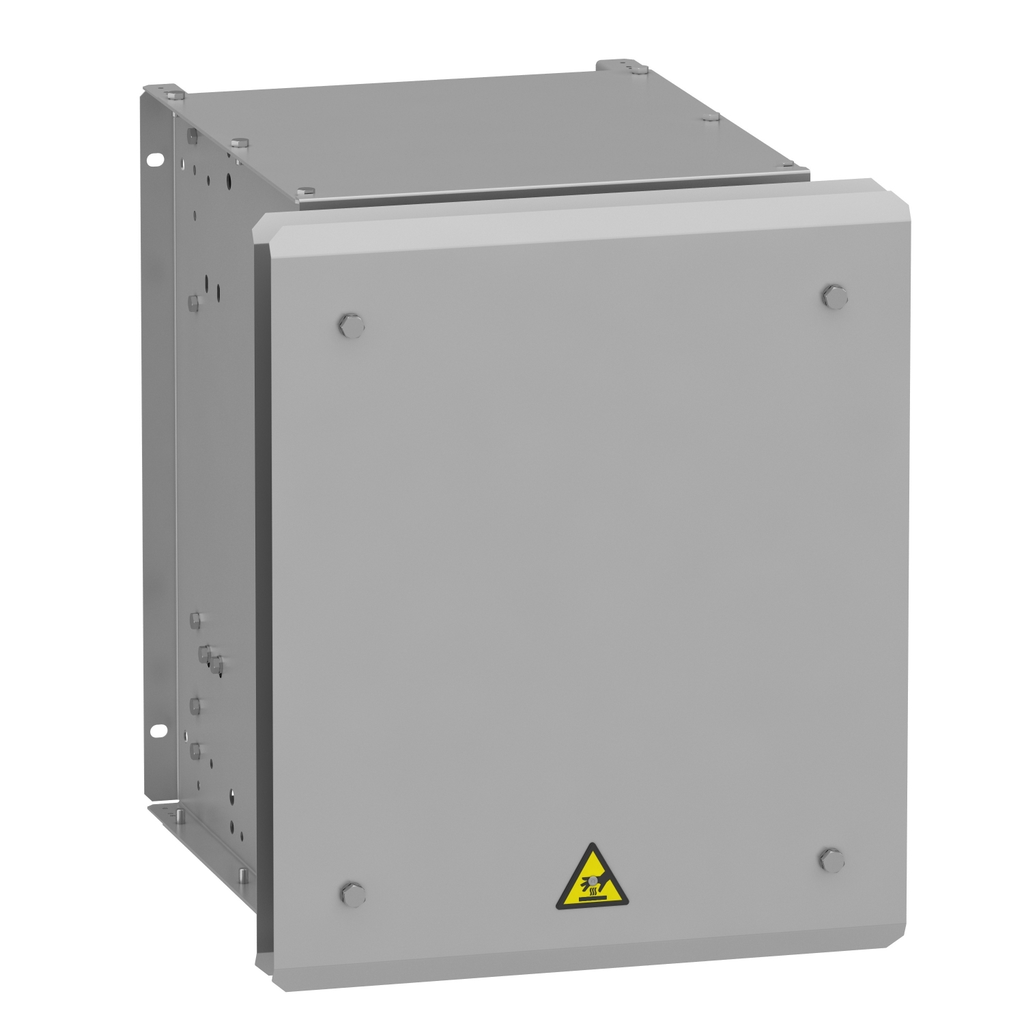

This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP23. It weighs 21kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Ue Rated Operational Voltage : 24 V DC, 250 V AC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
• Duty Cycle : light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
• Electrical Connection : terminal <= 2.5 mm² / AWG 12 temperature control switch, M10 bar wire drive
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-26
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1851
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Average Power Available : 1.9 kW 50 °C
• Ohmic Value : 5 Ohm
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via drive or temperature control switch 120 °C
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Warranty In Months : 18
• Height Nominal : 485 mm
• Width Nominal : 540 mm
• Environment Attributes Main
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• Product Compatibility : variable speed drive ATV950 wall mount 90 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 200...240 V medium cycle, variable speed drive ATV340 75 kW 380...480 V light cycle, variable speed drive ATV930 90 kW 500...690 V light cyclevariable speed drive ATV930 wall mount 75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 90 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 22 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 200...240 V medium cycle, variable speed drive ATV340 55 kW 380...480 V light cycle, variable speed drive ATV320 15 kW 200...240 V, variable speed drive ATV930 75 kW 500...690 V light cycle, variable speed drive ATV930 100 hp 600 V light cycle
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP23
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Specifications
• Country of Origin : Brazil, Germany, Spain, France, Sweden, United States
• Depth : 450 mm
