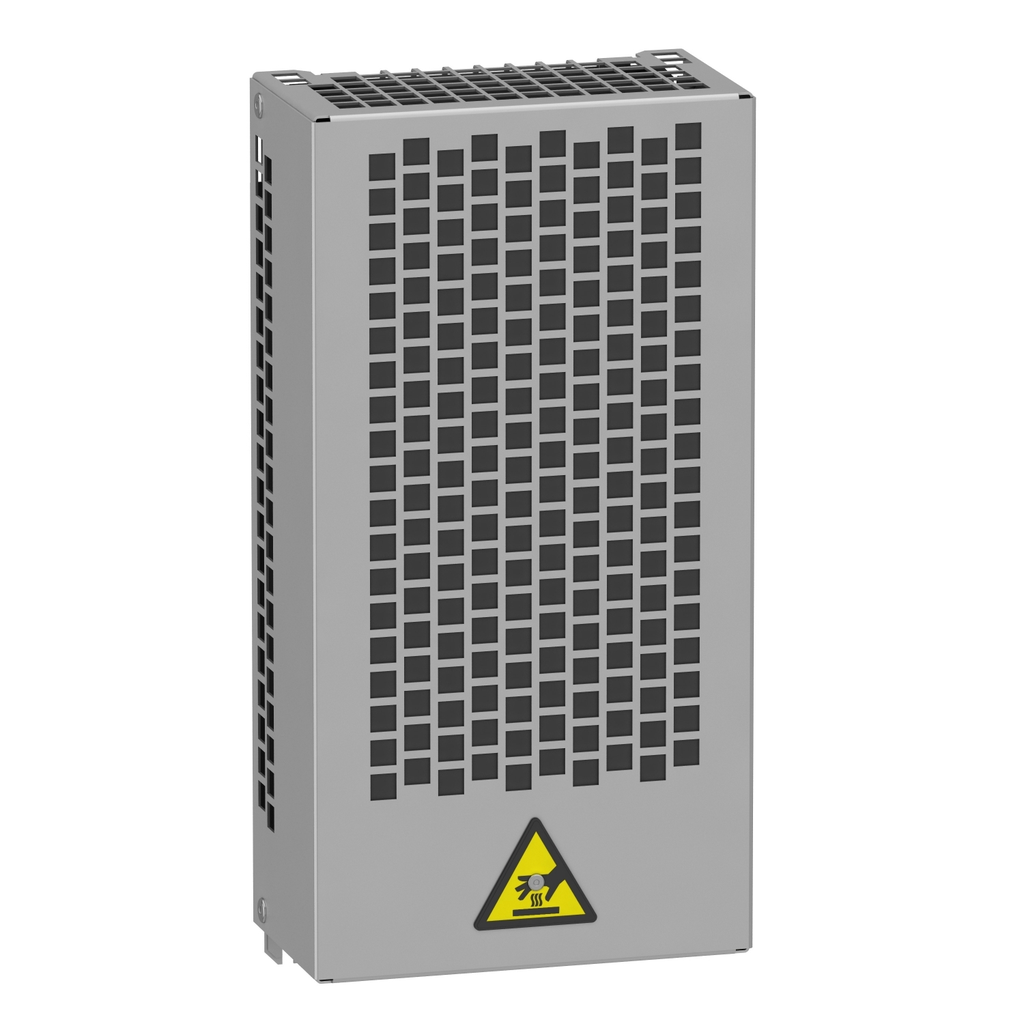

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 3kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

• Features
• Enable maximum transient braking torque
• Designed for machines with high inertia, driving loads, and machines with fast cycles
• Thermal protection via temperature-controlled switch or thermal overload relay
• Terminal electrical connection
• IP20 degree of protection
• Wide range of operating temperature from 0°C to 50°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Duty Cycle : light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Average Power Available : 0.3 kW 50 °C
• Electrical Connection : terminal <= 10 mm² / AWG 8 drive
• Ohmic Value : 28 Ohm
• Package Weight Lbs : 3.094 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via drive
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Medium Desc : braking resistor, Altivar, 28Ohms, 0.3kW, IP20
• Country Of Origin 6 : US
• Stocking Flag : Y
• Product Kit Identifier : N
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle, variable speed drive ATV320 7.5 kW 380...480 V, variable speed drive ATV320 3 kW 200...240 V, variable speed drive ATV320 11 kW 380...480 V, variable speed drive ATV320 11 kW 525...600 V, variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle, variable speed drive ATV340 7.5 kW 380...480 V light cycle, variable speed drive ATV320 15 kW 525...600 V, variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle, variable speed drive ATV320 7.5 kW 525...600 V, variable speed drive ATV930 15 kW 500...690 V light cycle, variable speed drive ATV930 25 hp 600 V light cycle, variable speed drive ATV930 20 hp 600 V light cycle, variable speed drive ATV930 18.5 kW 500...690 V light cycle, variable speed drive ATV340 11 kW 380...480 V light cycle, variable speed drive ATV310 11 kW, variable speed drive ATV320 2.2 kW 200...240 V
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-70 °C
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
• Specifications
• Country of Origin : France, Sweden
• Depth : 100 mm
