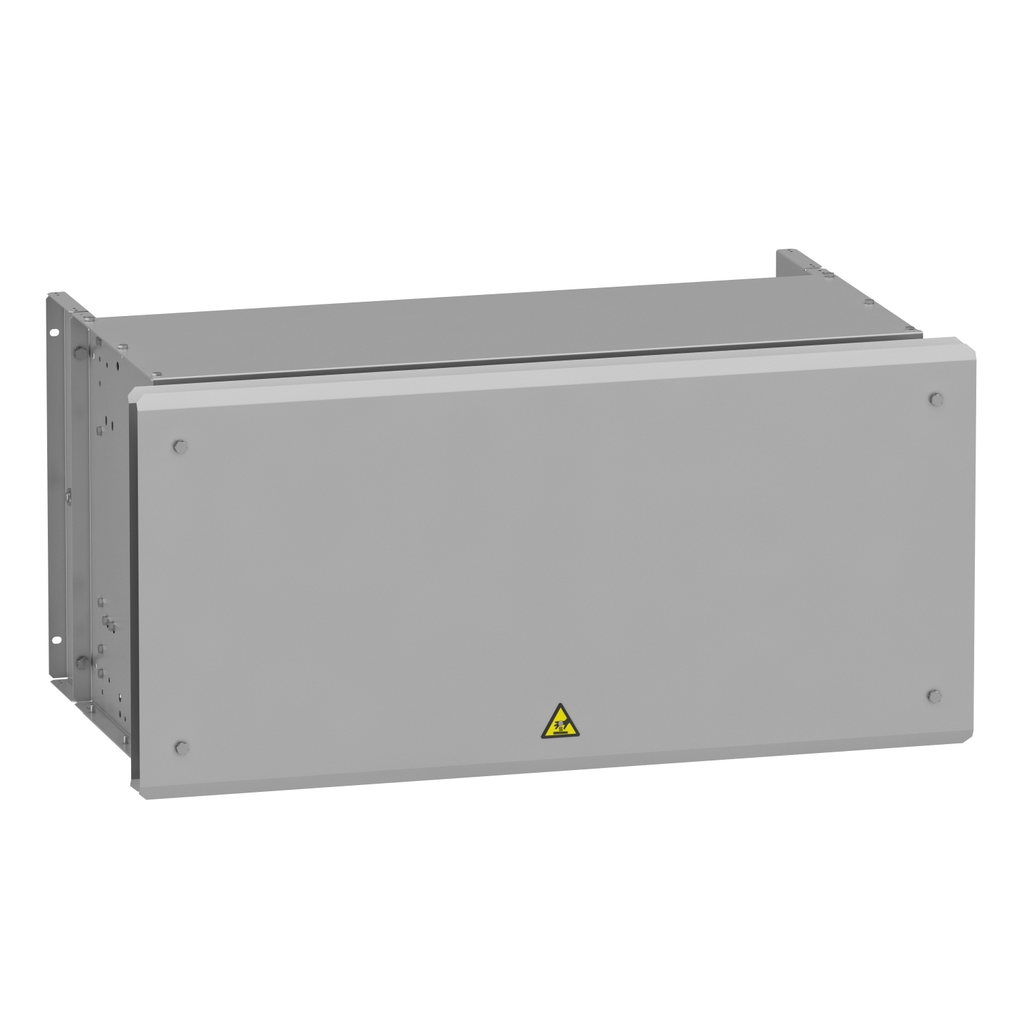

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 47kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Ue Rated Operational Voltage : 24 V DC, 250 V AC
• Important Information Attributes
• Duty Cycle : severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle, severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
• Electrical Connection : terminal <= 2.5 mm² / AWG 12 temperature control switch, M6 bar wire drive
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1851
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Average Power Available : 14 kW 50 °C
• Ohmic Value : 16 Ohm
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via drive or temperature control switch 120 °C
• Returnability : Yes
• Sustainable Packaging : No
• Warranty In Months : 18
• Height Nominal : 605 mm
• Width Nominal : 540 mm
• Environment Attributes Main
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• Product Compatibility : variable speed drive ATV950 wall mount 22 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V severe cycle, variable speed drive ATV340 22 kW 380...480 V severe cycle, variable speed drive ATV930 30 kW 500...690 V severe cyclevariable speed drive ATV930 wall mount 18.5 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V severe cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V severe cycle, variable speed drive ATV340 15 kW 380...480 V severe cycle, variable speed drive ATV340 18 kW 380...480 V severe cycle, variable speed drive ATV930 22 kW 500...690 V severe cycle, variable speed drive ATV930 37 kW 500...690 V severe cycle, variable speed drive ATV930 30 hp 600 V severe cycle, variable speed drive ATV930 40 hp 600 V severe cycle, variable speed drive ATV930 50 hp 600 V severe cycle
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP23
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : braking resistor
• ETIM
• ETIM 8 : EC002025
• ETIM 9 : EC002025
• Specifications
• Country of Origin : Brazil, Germany, Spain, France, Sweden, United States
• Depth : 1060 mm
