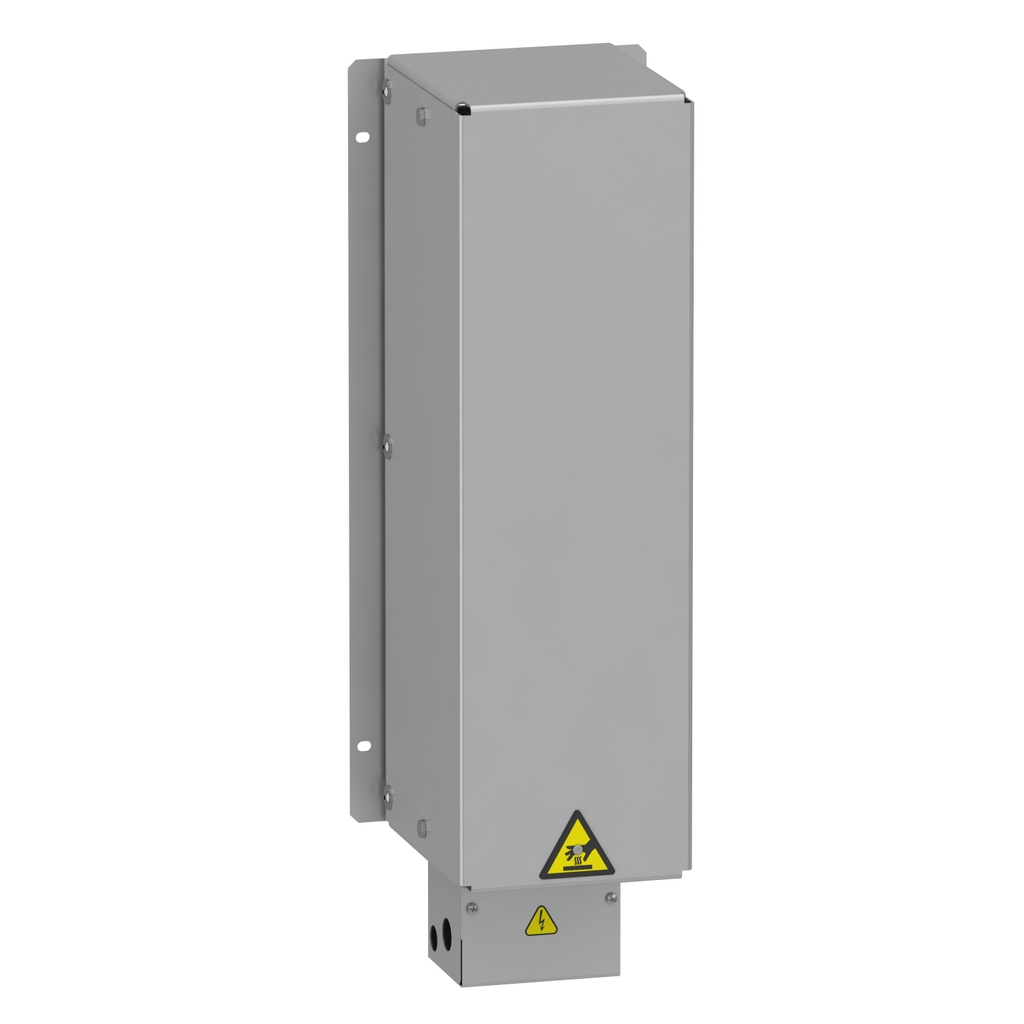

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 4kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Average Power Available : 1.1 kW 50 °C, 1.1 kW 50 °C
• Duty Cycle : light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
• Electrical Connection : terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive, terminal <= 2.5 mm² / AWG 12 temperature control switch, terminal <= 2.5 mm² / AWG 12 temperature control switch, terminal <= 2.5 mm² / AWG 12 temperature control switch, terminal <= 2.5 mm² / AWG 12 temperature control switch
• Protection Type : thermal protection via drive or temperature control switch 120 °C, thermal protection via drive or temperature control switch 120 °C
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Ohmic Value : 16 Ohm
• Package Weight Lbs : 4.434 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle, variable speed drive ATV340 15 kW 380...480 V light cycle, variable speed drive ATV340 15 kW 380...480 V light cycle, variable speed drive ATV340 15 kW 380...480 V light cycle, variable speed drive ATV340 15 kW 380...480 V light cycle, variable speed drive ATV340 15 kW 380...480 V light cycle, variable speed drive ATV340 18 kW 380...480 V light cycle, variable speed drive ATV340 18 kW 380...480 V light cycle, variable speed drive ATV340 18 kW 380...480 V light cycle, variable speed drive ATV340 18 kW 380...480 V light cycle, variable speed drive ATV340 18 kW 380...480 V light cycle, variable speed drive ATV340 22 kW 380...480 V light cycle, variable speed drive ATV340 22 kW 380...480 V light cycle, variable speed drive ATV340 22 kW 380...480 V light cycle, variable speed drive ATV340 22 kW 380...480 V light cycle, variable speed drive ATV340 22 kW 380...480 V light cycle, variable speed drive ATV320 4 kW 200...240 V, variable speed drive ATV320 4 kW 200...240 V, variable speed drive ATV320 4 kW 200...240 V, variable speed drive ATV320 4 kW 200...240 V, variable speed drive ATV320 5.5 kW 200...240 V, variable speed drive ATV320 5.5 kW 200...240 V, variable speed drive ATV320 5.5 kW 200...240 V, variable speed drive ATV320 5.5 kW 200...240 V, variable speed drive ATV320 15 kW 380...480 V, variable speed drive ATV320 15 kW 380...480 V, variable speed drive ATV320 15 kW 380...480 V, variable speed drive ATV320 15 kW 380...480 V, variable speed drive ATV930 22 kW 500...690 V light cycle, variable speed drive ATV930 22 kW 500...690 V light cycle, variable speed drive ATV930 22 kW 500...690 V light cycle, variable speed drive ATV930 22 kW 500...690 V light cycle, variable speed drive ATV930 22 kW 500...690 V light cycle, variable speed drive ATV930 30 kW 500...690 V light cycle, variable speed drive ATV930 30 kW 500...690 V light cycle, variable speed drive ATV930 30 kW 500...690 V light cycle, variable speed drive ATV930 30 kW 500...690 V light cycle, variable speed drive ATV930 30 kW 500...690 V light cycle, variable speed drive ATV930 37 kW 500...690 V light cycle, variable speed drive ATV930 37 kW 500...690 V light cycle, variable speed drive ATV930 37 kW 500...690 V light cycle, variable speed drive ATV930 37 kW 500...690 V light cycle, variable speed drive ATV930 37 kW 500...690 V light cycle, variable speed drive ATV930 30 hp 600 V light cycle, variable speed drive ATV930 30 hp 600 V light cycle, variable speed drive ATV930 30 hp 600 V light cycle, variable speed drive ATV930 30 hp 600 V light cycle, variable speed drive ATV930 30 hp 600 V light cycle, variable speed drive ATV930 40 hp 600 V light cycle, variable speed drive ATV930 40 hp 600 V light cycle, variable speed drive ATV930 40 hp 600 V light cycle, variable speed drive ATV930 40 hp 600 V light cycle, variable speed drive ATV930 40 hp 600 V light cycle, variable speed drive ATV930 50 hp 600 V light cycle, variable speed drive ATV930 50 hp 600 V light cycle, variable speed drive ATV930 50 hp 600 V light cycle, variable speed drive ATV930 50 hp 600 V light cycle, variable speed drive ATV930 50 hp 600 V light cycle
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Complementary Attributes
• UE Rated Operational Voltage : 24 V DC, 24 V DC, 250 V AC, 250 V AC
• General Attributes
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
