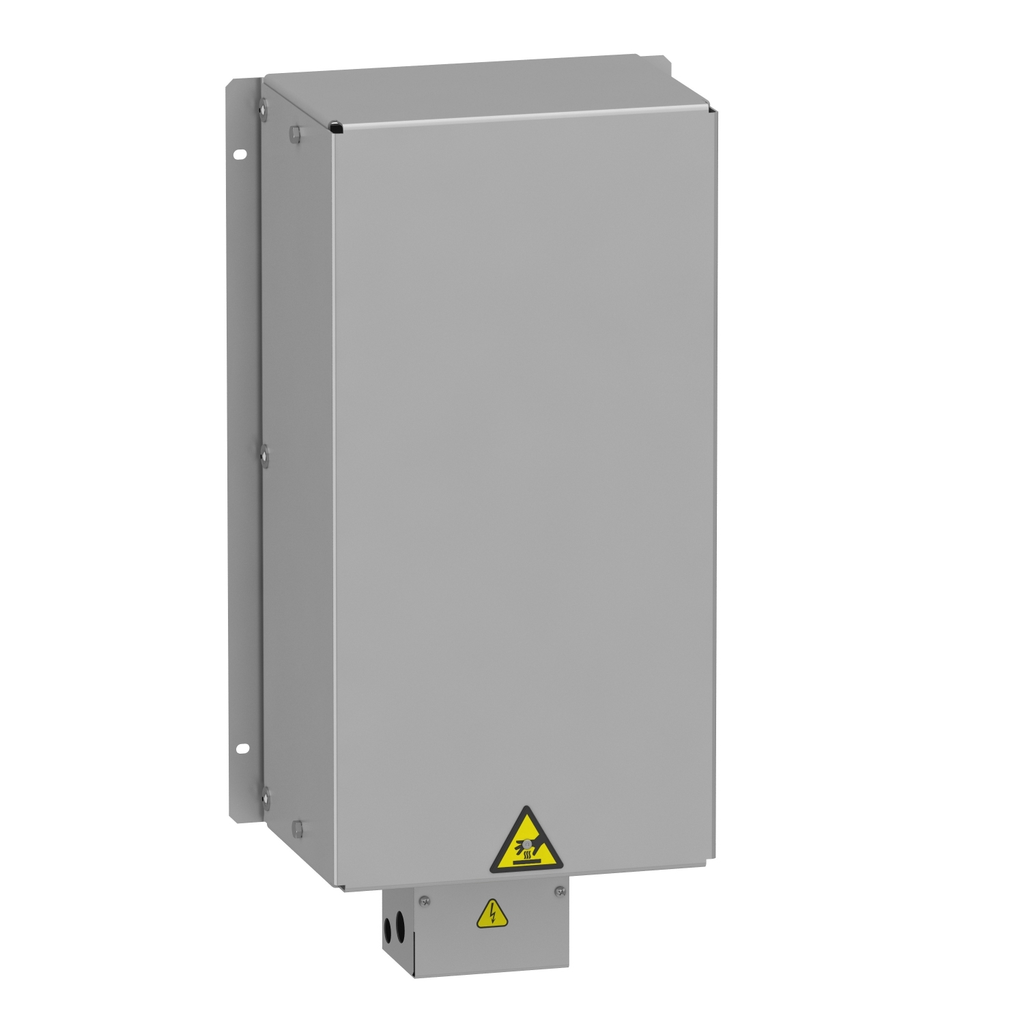

This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 100Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP20. It weighs 5kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

• Features
• Enable maximum transient braking torque
• Designed for machines with high inertia, driving loads, and machines with fast cycles
• Thermal protection via temperature-controlled switch or thermal overload relay
• Terminal electrical connection
• IP20 degree of protection
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : variable speed drive ATV950 wall mount 1.5 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V severe cycle, variable speed drive ATV340 1.5 kW 380...480 V severe cycle, variable speed drive ATV340 2.2 kW 380...480 V severe cycle, variable speed drive ATV340 3 kW 380...480 V severe cycle, variable speed drive ATV930 3 kW 500...690 V severe cycle, variable speed drive ATV930 4 kW 500...690 V severe cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V severe cycle, variable speed drive ATV340 0.75 kW 380...480 V severe cycle, variable speed drive ATV930 2.2 kW 500...690 V severe cycle, variable speed drive ATV930 5.5 kW 500...690 V severe cycle, variable speed drive ATV930 3 hp 600 V severe cycle, variable speed drive ATV930 5 hp 600 V severe cycle, variable speed drive ATV930 7.5 hp 600 V severe cycle
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-70 °C
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France, Sweden
• Depth : 180 mm
• Important Information Attributes
• Duty Cycle : severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle, severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
• Electrical Connection : terminal <= 10 mm² / AWG 8 drive, terminal <= 2.5 mm² / AWG 12 temperature control switch
• Ue Rated Operational Voltage2 : 24 V DC, 250 V AC
• Ue Rated Operational Voltage5 : 24 V DC, 250 V AC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Average Power Available : 1.7 kW 50 °C
• Ohmic Value : 100 Ohm
• Package Weight Lbs : 5.876 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via drive or temperature control switch 120 °C
• Returnability : Yes
• Sustainable Packaging : No
• Medium Desc : braking resistor, Altivar, 100Ohms, 1.7kW, IP20
• Country Of Origin 6 : US
• Stocking Flag : Y
• Product Kit Identifier : N
• Global Commercial Status : Commercialised
• General Attributes
• Product Or Component Type : braking resistor
