braking resistor, Altivar, 100Ohms, 0.26kW, IP20

Braking Resistor 100ohm 0.26kW

SQDVW3A7740 VW3A7740 3606480802331
170.25 / EA
http://schema.org/OutOfStock

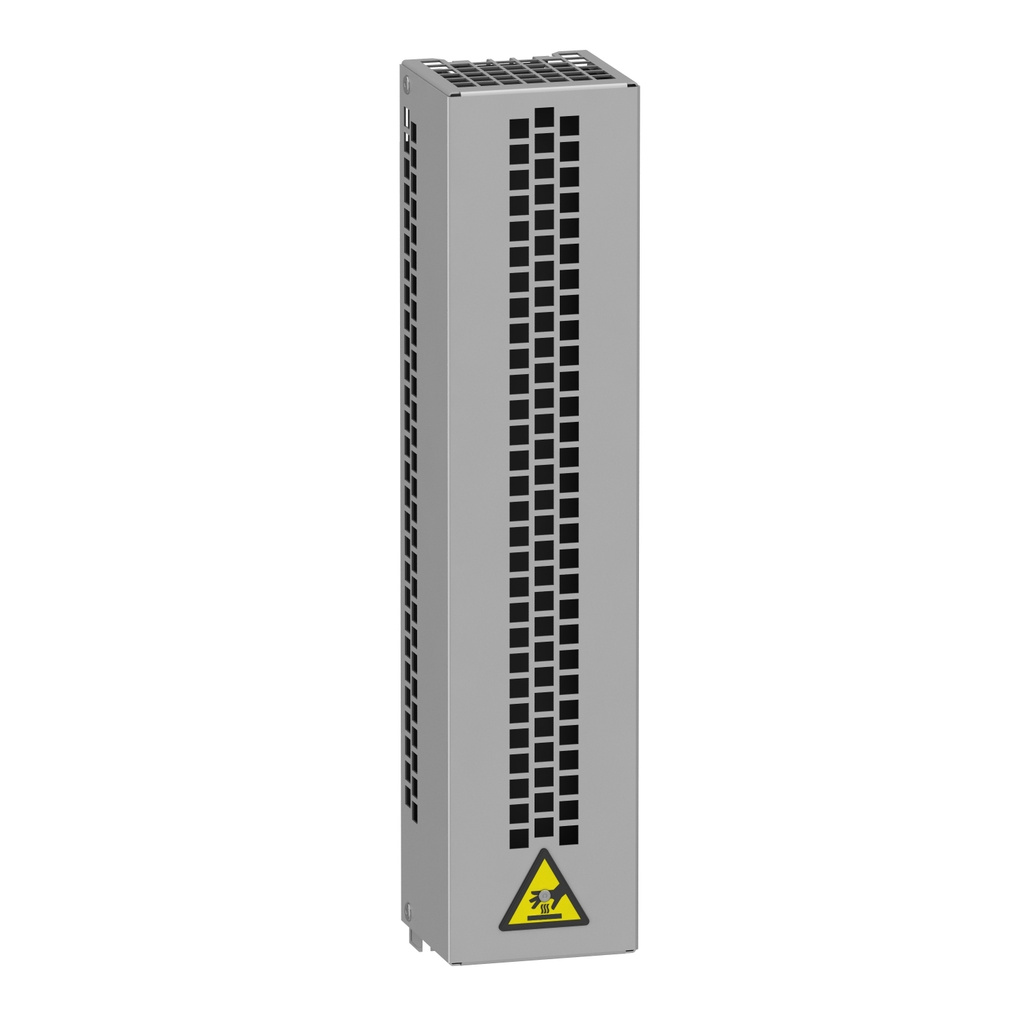

Mayer-DDS-braking resistor, Altivar, 100Ohms, 0.26kW, IP20-1
  • Country of Origin: Germany
  • Depth: 100 mm
  • Height: 465 mm
  • Net Weight: 2.5 kg
  • Weight: 2.5 kg
  • Width: 105 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 465 mm
    • Protection Type : thermal protection via drive
    • Net Weight : 2.5 kg
    • Electrical Connection : terminal <= 10 mm² / AWG 8 drive
    • Product Compatibility : variable speed drive ATV930 wall mount 2.2 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 3 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 4 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 2.2 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 3 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 4 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 0.75 kW 200...240 V severe cycle || variable speed drive ATV340 1.5 kW 380...480 V medium cycle || variable speed drive ATV340 2.2 kW 380...480 V medium cycle || variable speed drive ATV340 3 kW 380...480 V medium cycle || variable speed drive ATV930 4 kW 500...690 V medium cycle || variable speed drive ATV930 5.5 kW 500...690 V medium cycle || variable speed drive ATV930 5 hp 600 V medium cycle || variable speed drive ATV930 7.5 hp 600 V medium cycle
    • Duty Cycle : severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
    • Width : 105 mm
    • Depth : 100 mm
    • Average Power Available : 0.26 kW 50 °C
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Specifications
    • Country of Origin : Germany
    • Width : 105 mm
    • Height : 465 mm
    • Weight : 2.5 kg
    • Ohmic Value : 100 Ohm
    • Product Or Component Type : braking resistor
    • Range Compatibility : Altivar Process ATV900 || Altivar Machine ATV340
  • Environment
    • Ambient Air Temperature For Operation : 0-50 °C
    • Ambient Air Temperature For Storage : -25-70 °C
    • Ip Degree Of Protection : IP20
