braking resistor, Altivar, 100Ohms, 0.1kW, IP20

Braking Resistor 100ohm 0.1kW

SQDVW3A7730 VW3A7730 3606480802249
205.25 / EA
http://schema.org/OutOfStock
braking resistor, Altivar, 100Ohms, 0.1kW, IP20

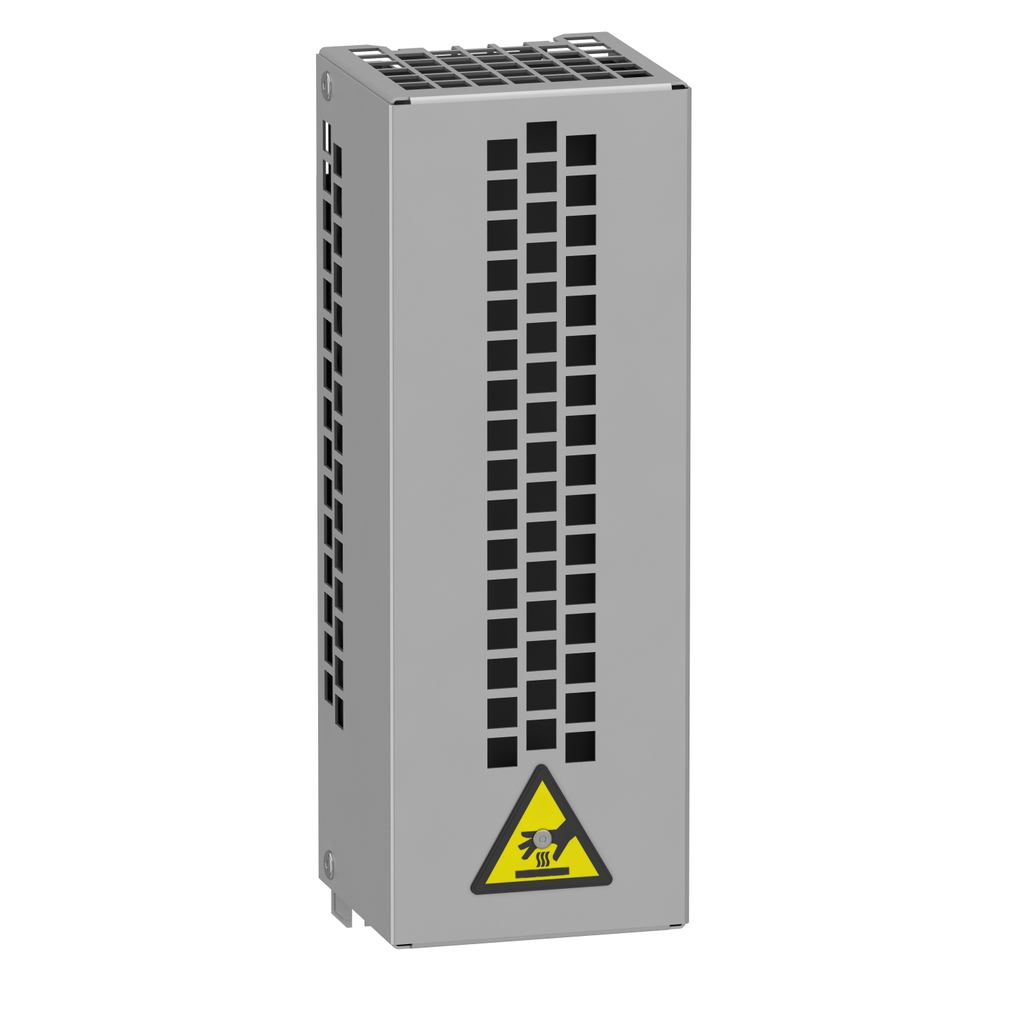

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
QTY
  • Product Description
  • Features
  • Specifications
This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, OM, OM8, SC, VR
    • Persona Type Names : Charge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Average Power Available : 0.1 kW 50 °C, 0.1 kW 50 °C
    • Duty Cycle : light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
    • Electrical Connection : terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive, terminal <= 10 mm² / AWG 8 drive
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Ohmic Value : 100 Ohm
    • Package Weight Lbs : 1.714 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : braking resistor
    • Protection Type : thermal protection via drive
    • Range Of Product : Altivar
    • Returnability : Yes
    • Sustainable Packaging : No
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 4 kW, variable speed drive ATV310 4 kW, variable speed drive ATV310 4 kW, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 5.5 kW
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : braking resistor
    • Range Of Product : Altivar
