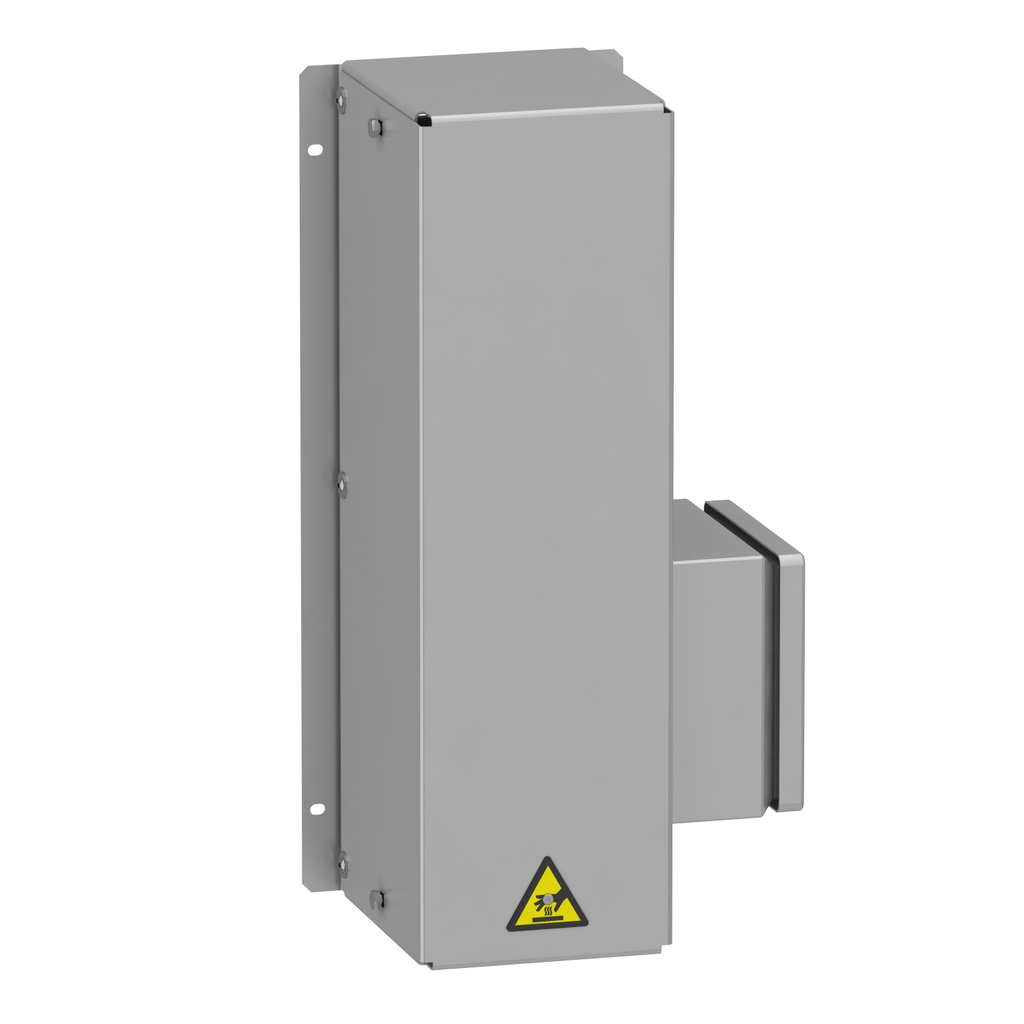

This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP20. It weighs 4.3kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Average Power Available : 0.96 kW 50 °C, 0.96 kW 50 °C
• Duty Cycle : light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
• Electrical Connection : terminal <= 35 mm² / AWG 3 drive, terminal <= 35 mm² / AWG 3 drive, terminal <= 35 mm² / AWG 3 drive, terminal <= 35 mm² / AWG 3 drive, terminal <= 4 mm² / AWG 10 temperature control switch, terminal <= 4 mm² / AWG 10 temperature control switch, terminal <= 4 mm² / AWG 10 temperature control switch, terminal <= 4 mm² / AWG 10 temperature control switch
• Protection Type : thermal protection via drive or temperature control switch 120 °C, thermal protection via drive or temperature control switch 120 °C
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Ohmic Value : 10 Ohm
• Package Weight Lbs : 5.095 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Product Kit Identifier : N
• General Attributes
• Product Or Component Type : braking resistor
• Range Of Product : Altivar
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle, variable speed drive ATV340 30 kW 380...480 V light cycle, variable speed drive ATV340 30 kW 380...480 V light cycle, variable speed drive ATV340 30 kW 380...480 V light cycle, variable speed drive ATV340 30 kW 380...480 V light cycle, variable speed drive ATV340 30 kW 380...480 V light cycle, variable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV320 7.5 kW 200...240 V, variable speed drive ATV320 7.5 kW 200...240 V, variable speed drive ATV320 7.5 kW 200...240 V, variable speed drive ATV320 7.5 kW 200...240 V, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cycle, variable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Complementary Attributes
• UE Rated Operational Voltage : 24 V DC, 24 V DC, 250 V AC, 250 V AC
