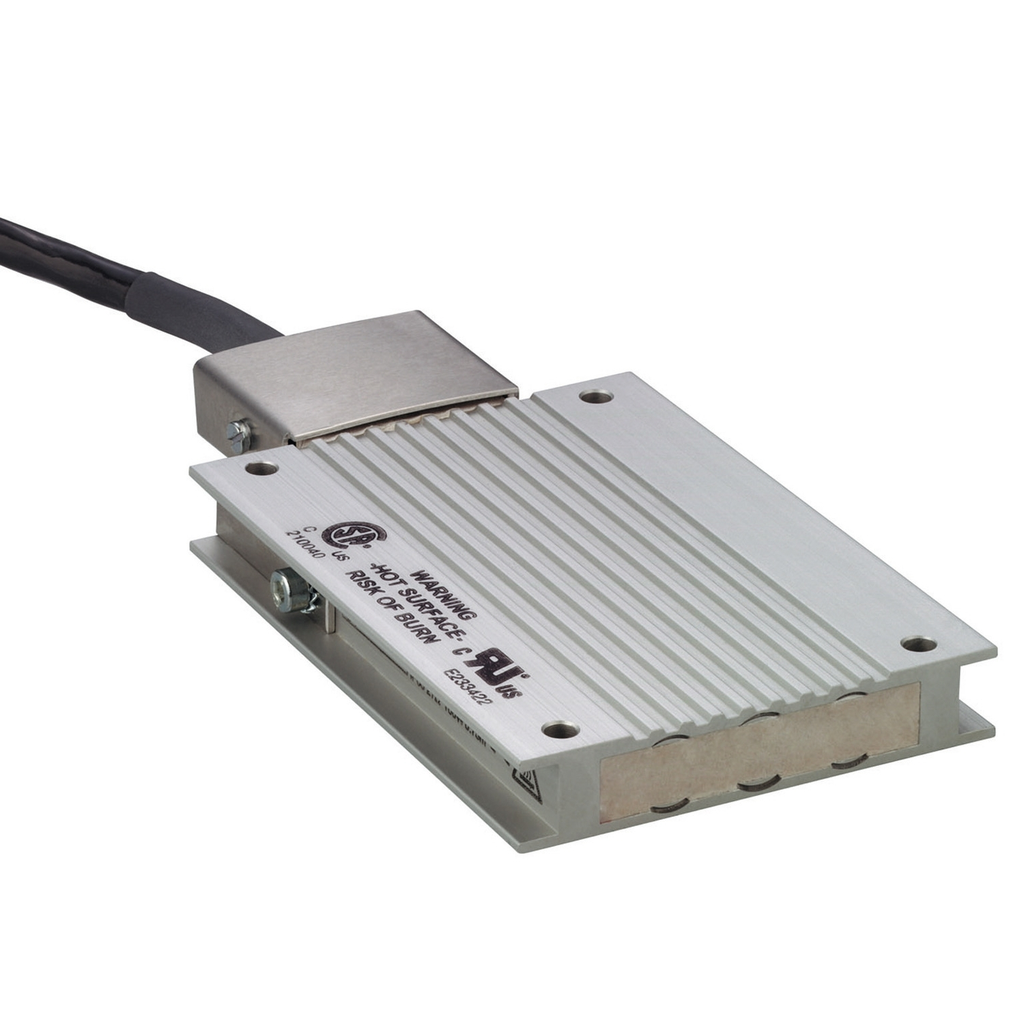

This braking resistor is an accessory for variable speed drives of the Lexium and Altivar ranges. It allows your drive to operate while braking to a standstill or during slowdown braking. It has an Ohmic value of 10Ohms at 20°C and its protection index i

• Range Compatibility
• Lexium 15
• Lexium 28
• Lexium 32
• Lexium 05
• Lexium 52
• Lexium 32i
• Energy Peak
• 7300 J 400 V
• 7300 J 480 V
• 13300 J 230 V
• 18800 J 115 V
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Range Of Product
• Altivar
• Lexium

• Physical Attributes
• Cable Length : 3 m
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2010
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Continuous Power : 400 W
• Ohmic Value : 10 Ohm
• Package Weight Lbs : 1.62 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : braking resistor
• Protection Type : thermal protection via the servo drive
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category : protection accessories
• General Attributes
• Product Or Component Type : braking resistor
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=6941000&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -25-85 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
