communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20

BACNET MODULE FOR ATV600

SQDVW3A3725 VW3A3725 3606481355430
811.39 / EA
http://schema.org/OutOfStock

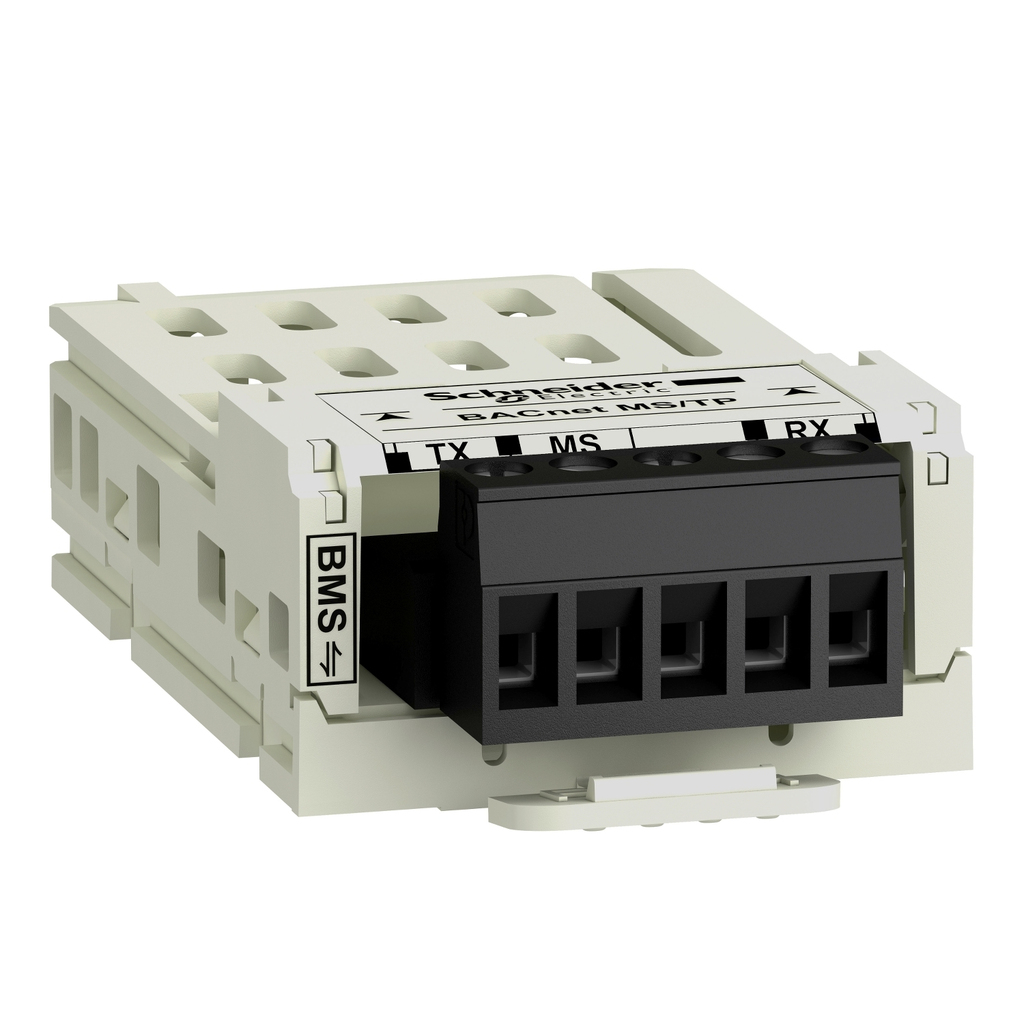

Mayer-DDS-communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20-1
This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range. It is equipped with an RS485 5-pin removable terminal block. It is compatible with Altivar Process drives. This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services. The transmission rate is up to 76.8kbit/s. It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status. It weighs 0.035kg. It enables integration of your variable speed drive in your process control network. Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards.
QTY
  • Product Description
  • Features
  • Specifications
This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range. It is equipped with an RS485 5-pin removable terminal block. It is compatible with Altivar Process drives. This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services. The transmission rate is up to 76.8kbit/s. It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status. It weighs 0.035kg. It enables integration of your variable speed drive in your process control network. Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards.
  • Features
    • Bring your drive into the BACnet network
    • IP20
    • Easy to install
    • Designed for Altivar variable speed drives
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Service : AV, BV, MSV BACnet MS/TP, COV notification
    • Communication Network Type : RS485
    • Communication Port Protocol : BACnet MS/TP
  • Conformance Attributes
    • Product Certifications : BTL, CSA, UL 508, UL 873
  • Important Information Attributes
    • Display Type : 1 LED error, 1 LED transmission activity, 1 LED reception activity (RX), 1 LED module status
    • Electromagnetic Compatibility : EMC immunity conforming to IEC 61000-6-1, EMC immunity level 2 conforming to IEC 60730-1, electrostatic discharge level 3B conforming to IEC 61000-4-2, radiated RF fields level 3A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4, surge immunity test level 3 conforming to IEC 61000-4-5, conducted RF disturbances level 3A conforming to IEC 61000-4-6, conducted EMC level 2 conforming to IEC 60730-1, conducted EMC conforming to IEC 61000-6-3
    • Vibration Resistance : 1.5 mm 3-13 Hz), 1 mm 13-23 Hz), 2 gn 13-150 Hz)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Electrical Connection : screw terminal block 5-pin removable terminal block, BACnet MS/TP
    • Package Weight Lbs : 66.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : communication module
    • Range Of Product : Altivar
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms
    • Sustainable Packaging : No
    • Transmission Rate : 9.6, 19.2, 38.4, 76.8 kbit/s
    • Transmission Support Medium : 2 twisted pairs
    • Medium Desc : communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2010018EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -20-65 °C
    • Ambient Air Temperature For Storage : -25-70 °C
    • Environmental Disclosure : ENVPEP2010018EN
    • IP Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : ATV600
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Storage Altitude : 0-3048 m
    • Pep Code : ENVPEP2010018EN
  • General Attributes
    • Product Or Component Type : communication module
    • Range Of Product : Altivar
  • Specifications
    • Country of Origin : Sweden, United States
