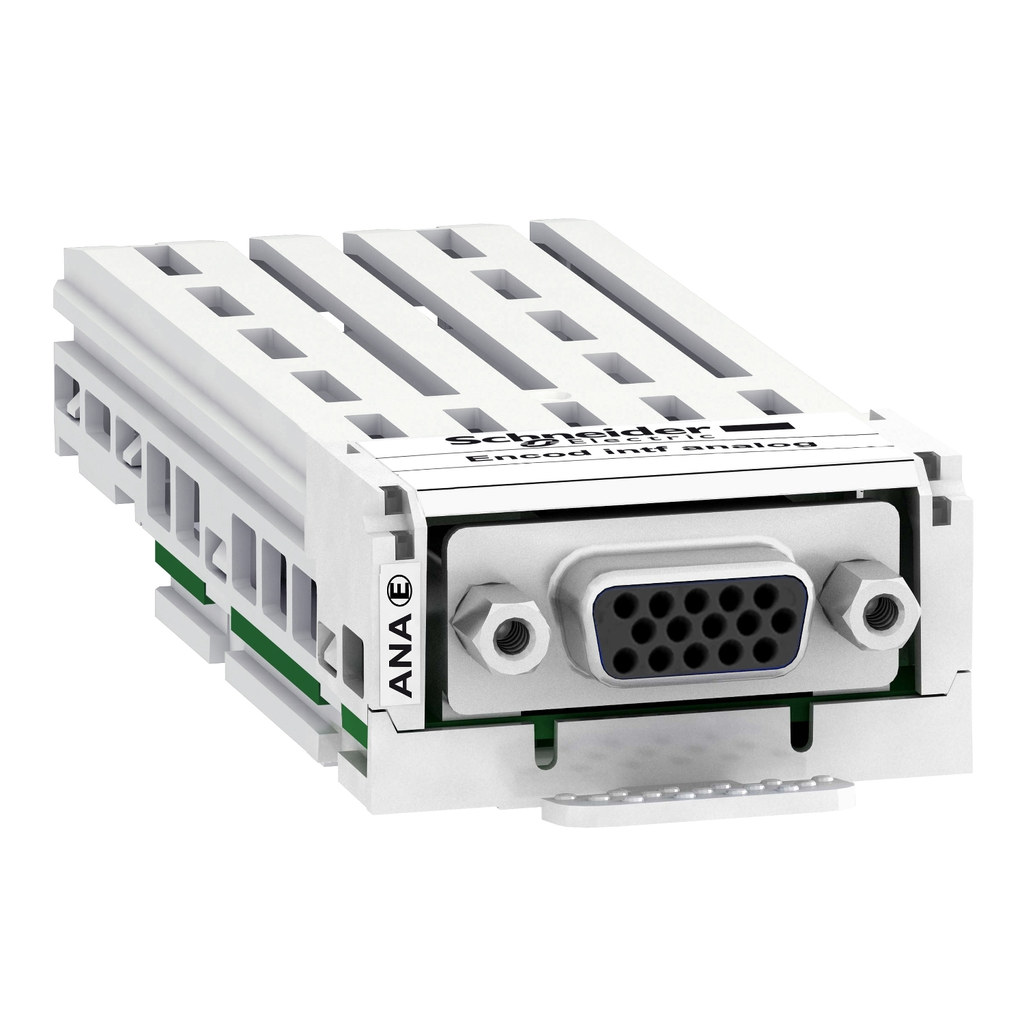

This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespectiv

• Connector Type
• 1 female high density SUB-D 15
• Range Compatibility
• Altivar Machine ATV340
• Altivar Process ATV900
• Altivar Process Modular
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0068443084
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0596262375
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 5 kg CO2 eq.
• 4.6133438274
• Protection Type
• overload protection
• short-circuit protection
• Encoder Type
• SinCos Hiperface
• 1 Vpp
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 102 kg CO2 eq.
• 102.28
• Us Rated Supply Voltage
• 5 V DC 4.75-5.25 V)
• 12 V DC 11.4-12.6 V)
• 24 V DC 22.8-25.2 V)
• Carbon Footprint Of The Distribution Phase A4
• 0.0194826311
• 0 kg CO2 eq.
• Maximum Supply Current
• 0.25 A 5 V DC
• 0.1 A 12 V DC
• 0.05 A 24 V DC

• Complementary Attributes
• Maximum Cable Distance Between Devices : 100 m
• Maximum Operating Frequency : 100 kHz
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 4.613343827
• Distribution Carbon Footprint : 0.019482631
• Installation Carbon Footprint : 0.006844308
• Use Carbon Footprint : 102.28
• End Of Life Carbon Footprint : 0.059626238
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1929
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Package Weight Lbs : 153.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : analog encoder interface module
• Range Of Product : Altivar
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 107 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 106.979297
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : analog encoder interface module
• Range Of Product : Altivar
• Output Attributes
• Output Signal : Data+, Data-
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=432941364&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 106.979297
• Environmental Disclosure : ENVPEP2010009EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Input Attributes
• Input Signal : Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp-
• Specifications
• Country of Origin : Indonesia
