EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V

EMC FILTERS 16A- 1HP, ATV32"

SQDVW3A4421 VW3A4421 3606480166884
404.19 / EA
http://schema.org/OutOfStock

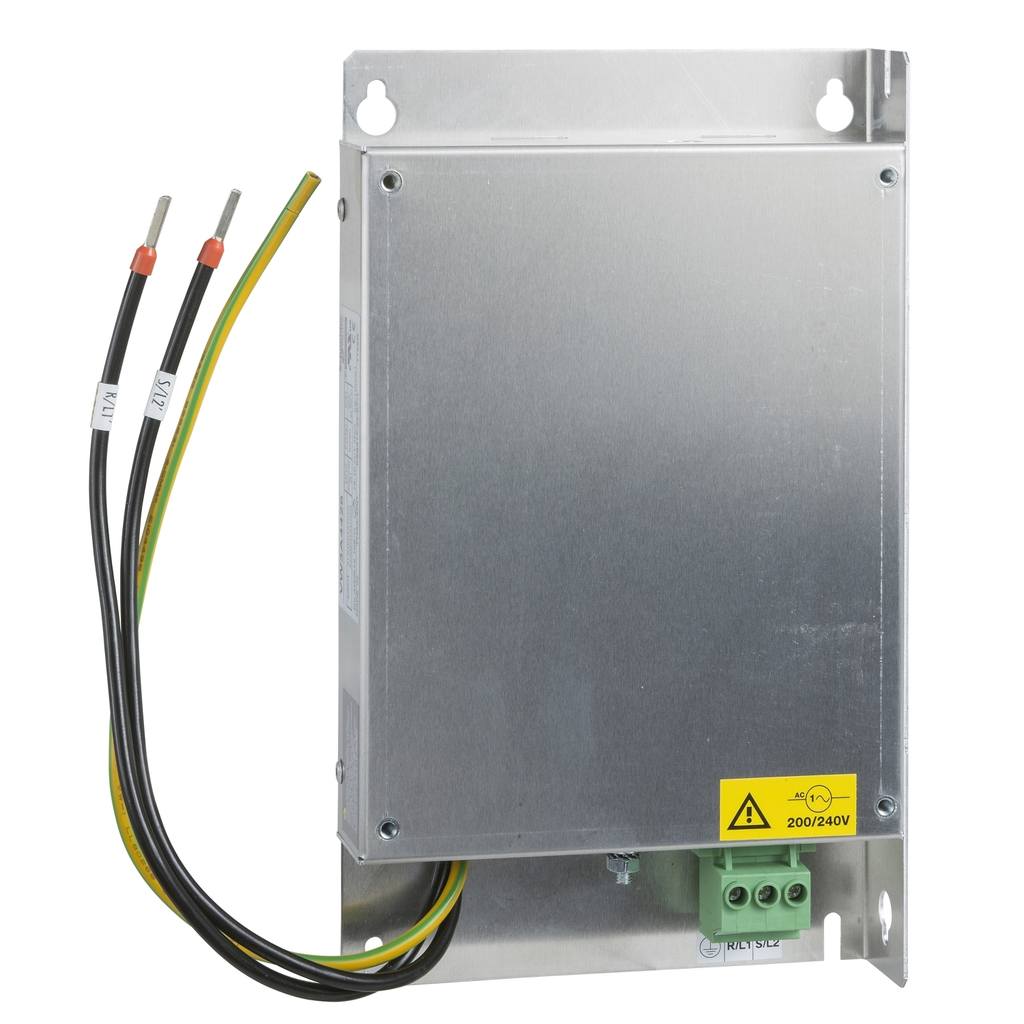

Mayer-DDS-EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V-1
  • Warranty Length: 18 mth
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
QTY
  • Product Description
  • Features
  • Specifications
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
  • Features
    • Enables your servo drive to be in compliance with electromagnetic compatibility requirements
    • Easy to select and order thanks to the just enough number of references
    • Easy to mount and wire up
    • Specially designed for simple machines
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : 20 m IEC 61800-3 category C1, 50 m IEC 61800-3 category C2
    • Line Rated Current : 17.6 A
    • Network Rated Voltage : 200-240 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM
    • Persona Type Names : End User, Original Equipment Manufacturer
    • Range Of Product : Altivar, Lexium
    • Tolerance : - 15...10 %, - 15...10 %
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • EMC Filter Compatibility : type 021
    • Mounting Location : at variable speed drive side
    • Package Weight Lbs : 634.000 g
    • Phase : single phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : EMC input filter
    • Product Specific Application : radio interference input filter
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category2 : protection accessories
    • Medium Desc : EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Thermal Losses : 6.9 W
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : LXM28A, ATV32, 200...240 V, 1.1...1.5 kW, LXM32, single-phase, line current 8.4...12.9 A, variable speed drive ATV320...B 1.1 kW, 200...240 V, single phase, variable speed drive ATV320...B 1.5 kW, 200...240 V, single phase
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : Altivar, Lexium
    • Phase : single phase
    • Product Or Component Type : EMC input filter
  • Surge Protection And Filtering Attributes
    • EMC Filter Compatibility : type 021
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
