EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V

EMC INPUT FILTER FOR 480V ATV3

SQDVW3A4422 VW3A4422 3606480166891
187.43 / EA
http://schema.org/OutOfStock

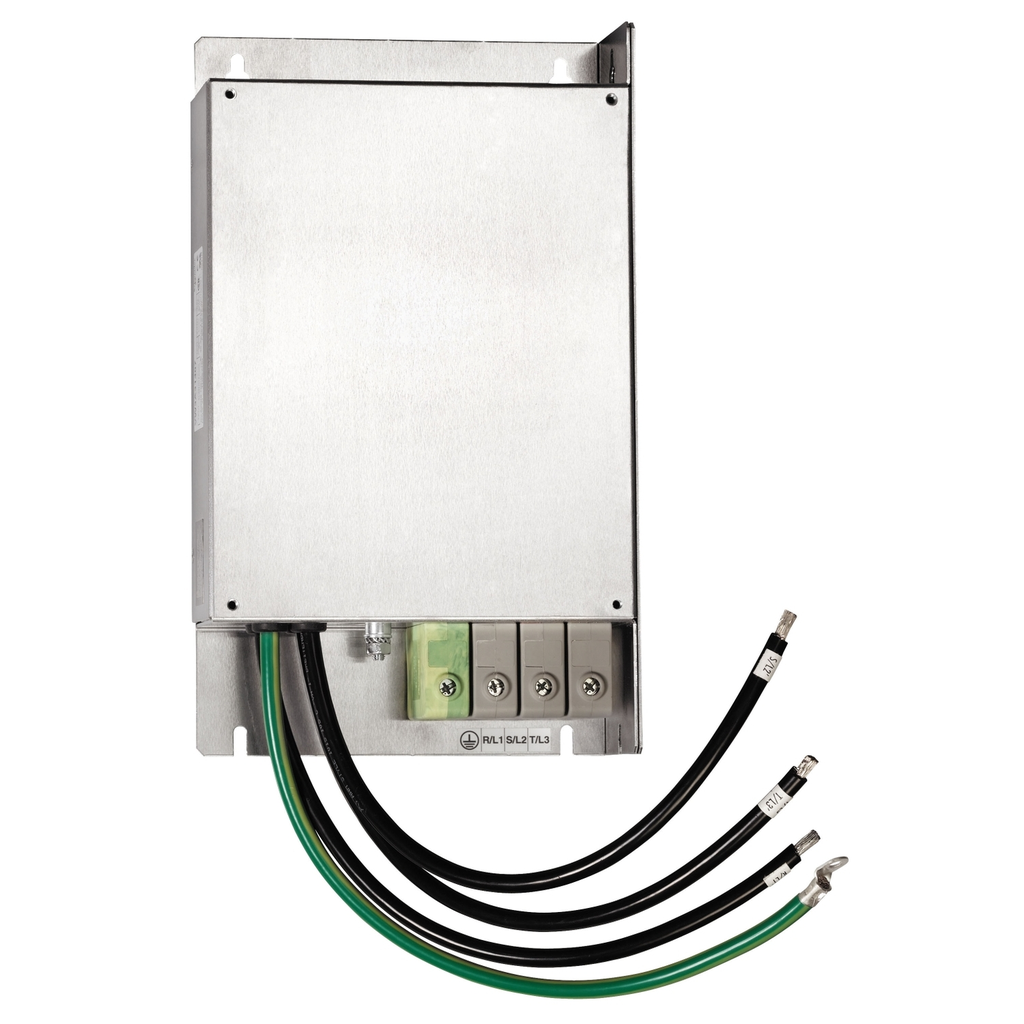

Mayer-DDS-EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V-1
  • Country of Origin: Thailand
  • Warranty Length: 18 mth
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
QTY
  • Product Description
  • Features
  • Specifications
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
  • Features
    • Radio interference input filter
    • Three phase network
    • 15A rated current
    • 380V to 500V network rated voltage
    • Type 022 EMC filter compatibility
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : 20 m IEC 61800-3 category C1, 50 m IEC 61800-3 category C2, 100 m IEC 61800-3 category C3
    • Line Rated Current : 15 A
    • Network Rated Voltage : 380-500 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM
    • Persona Type Names : End User, Original Equipment Manufacturer
    • Range Of Product : Altivar, Lexium
    • Tolerance : - 15...10 %, - 15...10 %
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Variable speed drive - VSD option & accessory
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • EMC Filter Compatibility : type 022
    • Mounting Location : at variable speed drive side
    • Package Weight Lbs : 933.000 g
    • Phase : three phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : EMC input filter
    • Product Specific Application : radio interference input filter
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category2 : protection accessories
    • Medium Desc : EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Thermal Losses : 9.9 W
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : variable speed drive ATV340 1.5 kW, 380...480 V, LXM28A, ATV32, 380...500 V, 0.37...1.5 kW, LXM32, three-phase, line current 1.2...8.7 A, variable speed drive ATV320...B 0.37 kW, 380...500 V, three phase, variable speed drive ATV320...B 0.55 kW, 380...500 V, three phase, variable speed drive ATV320...B 0.75 kW, 380...500 V, three phase, variable speed drive ATV320...B 1.1 kW, 380...500 V, three phase, variable speed drive ATV320...B 1.5 kW, 380...500 V, three phase, variable speed drive ATV320...B 2.2 kW, 380...500 V, three phase, variable speed drive ATV320...B 3 kW, 380...500 V, three phase, variable speed drive ATV320...B 4 kW, 380...500 V, three phase, variable speed drive ATV340 0.75 kW, 380...480 V
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : Altivar, Lexium
    • Phase : three phase
    • Product Or Component Type : EMC input filter
  • Surge Protection And Filtering Attributes
    • EMC Filter Compatibility : type 022
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Thailand
