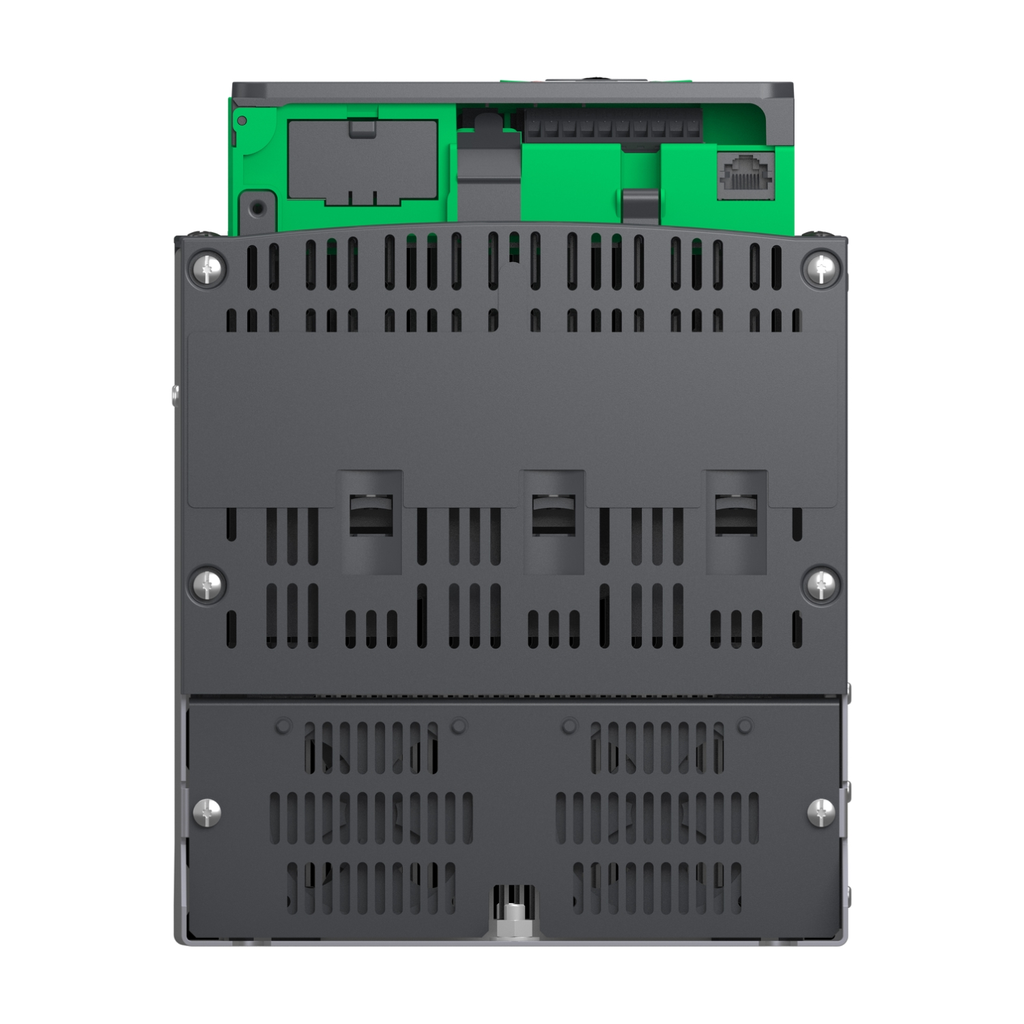

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 110A in normal duty, it supplies motor from 30kW to 90kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. test1

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Product Certifications : CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
• Device Connection : in the motor supply line || to the motor delta terminals
• Standards : IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
• Analogue Output Type : current output AQ1 0...20 mA or 0...10 V 500 Ohm
• [Uc] Control Circuit Voltage : 110...230 V AC 50/60 Hz - 15...10 %
• Maximum Switching Current : relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
• Display Screen Available : true
• Net Weight : 8.3 kg
• Relay Output Type : relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
• Analogue Input Number : 1
• Communication Data Link : serial
• Discrete Output Number : 2
• Communication Port Protocol : Modbus serial
• Method Of Access : slave Modbus serial
• Integrated Motor Overload Protection : true
• Discrete Input Number : 4
• Accuracy Class : class 10E
• Power Loss Per Device Current Dependent : 302.0 W
• Number Of Addresses : 0-227 Modbus serial
• Apparent Power : 0.09 kVA
• Width : 190.0 mm
• Transmission Rate : 1200...256000 bit/s
• Depth : 247.0 mm
• Discrete Input Logic : programmable digital input < 5 V
• Analogue Input Type : AI1/PTC PTC/Pt 100 temperature probe || PTC2 PTC/Pt 100 temperature probe || PTC3 PTC/Pt 100 temperature probe
• Discrete Output Type : DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
• Output Compatibility : open collector level 1 PLC IEC 65A-68
• Height : 290.0 mm
• Transmission Frame : RTU
• Relay Output Number : 3
• Data Format : 8 bits, configurable odd, even or no parity
• Marking : CE || CCC || UKCA || EAC || RCM || cULus
• Output Current Drift : 150-700 %
• Input Compatibility : STOP discrete input level 1 PLC IEC 61131-2 || RUN discrete input level 1 PLC IEC 61131-2 || DI3 discrete input level 1 PLC IEC 61131-2 || DI4 discrete input level 1 PLC IEC 61131-2
• Connector Type : 1 RJ45
• Function Available : external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
• Discrete Input Type : STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
• Minimum Switching Current : 100 mA 12 V DC relay outputs
• Analogue Output Number : 1
• Physical Interface : 2-wire RS 485
• [In] Rated Current Pwr Loss Specifctn : 110.0 A
• Operating Position : vertical +/- 10 degree
• Power Loss Static Current Independent : 25.0 W
• Type Of Polarization : no impedance Modbus serial
• Protection Type : phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line supply phase loss motor || thermal protection motor
• Environment
• Maximum Deflection Under Vibratory Load (During Operation) : 1.5 mm at 2...13 Hz
• Maximum Deflection Under Vibratory Load (During Transport) : 1.75 mm at 2...9 Hz
• [Ui] Rated Insulation Voltage : 690 V
• Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
• Environmental Class (During Operation) : class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Maximum Acceleration Under Vibratory Load (During Transport) : 15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
• Maximum Acceleration Under Shock Load (During Transport) : 100 m/s² at 11 ms
• Maximum Acceleration Under Shock Impact (During Operation) : 150 m/s² at 11 ms
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Pollution Degree : level 3
• Electromagnetic Compatibility : conducted and radiated emissions level A conforming to IEC 60947-4-2 || conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2 || damped oscillating waves level 3 conforming to IEC 61000-4-12 || electrostatic discharge level 3 conforming to IEC 61000-4-11 || immunity to electrical transients level 4 conforming to IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 || voltage/current impulse level 3 conforming to IEC 61000-4-5
• Ambient Air Temperature For Operation : 40-60 °C (with current derating of 2 % per °C) || -15-40 °C (without derating)
• Maximum Acceleration Under Vibrational Stress (During Operation) : 10 m/s² at 13...200 Hz
• Maximum Acceleration Under Vibratory Load (During Storage) : 15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 0-95 % without condensation or dripping water IEC 60068-2-3
• Maximum Acceleration Under Shock Load (During Storage) : 100 m/s² at 11 ms
• Maximum Deflection Under Vibratory Load (During Storage) : 1.75 mm at 2...9 Hz
• Specifications
• Country of Origin : Indonesia
• Width : 190.0 mm
• Height : 290.0 mm
• Weight : 8.3 kg
• Product Destination : asynchronous motors
• Product Or Component Type : soft starter
• Phase : 3 phase
• Utilisation Category : AC-3A || AC-53A
• [Ie] Rated Operational Current : normal duty 110.0 A 40 °C)
• Product Specific Application : process and infrastructures
• Maximum Horse Power Rating : 30.0 hp 208 V normal duty || 25.0 hp 208 V heavy duty || 40.0 hp 230 V normal duty || 30.0 hp 230 V heavy duty || 75.0 hp 460 V normal duty || 60.0 hp 460 V heavy duty || 100.0 hp 575 V normal duty || 75.0 hp 575 V heavy duty
• Supply Frequency : 50...60 Hz - 20...20 %
• Option Card : communication module Profibus DP V1 || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
• Range Of Product : Altivar Soft Starter ATS480
• Maximum Permanent Current : 88.0 A at 40 °C heavy duty
• Motor Power Kw : 30.0 kW 230 V in the motor supply line normal duty || 22.0 kW 230 V in the motor supply line heavy duty || 55.0 kW 400 V in the motor supply line normal duty || 45.0 kW 400 V in the motor supply line heavy duty || 55.0 kW 440 V in the motor supply line normal duty || 45.0 kW 440 V in the motor supply line heavy duty || 75.0 kW 500 V in the motor supply line normal duty || 55.0 kW 500 V in the motor supply line heavy duty || 75.0 kW 525 V in the motor supply line normal duty || 55.0 kW 525 V in the motor supply line heavy duty || 90.0 kW 660 V in the motor supply line normal duty || 75.0 kW 660 V in the motor supply line heavy duty || 90.0 kW 690 V in the motor supply line normal duty || 75.0 kW 690 V in the motor supply line heavy duty || 55.0 kW 230 V to the motor delta terminals normal duty || 45.0 kW 230 V to the motor delta terminals heavy duty || 90.0 kW 400 V to the motor delta terminals normal duty || 75.0 kW 400 V to the motor delta terminals heavy duty
• [Us] Rated Supply Voltage : 208...690 V - 15...10 %
• Torque Control : true
• Device Short Name : ATS480
• Ip Degree Of Protection : IP20
• Environmental data
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 8364.2
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2009021EN
• Packaging Without Single Use Plastic : No
• Scip Number : 5e2e4c7a-0593-47ad-92ac-80085d9dd549
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2009021EN
