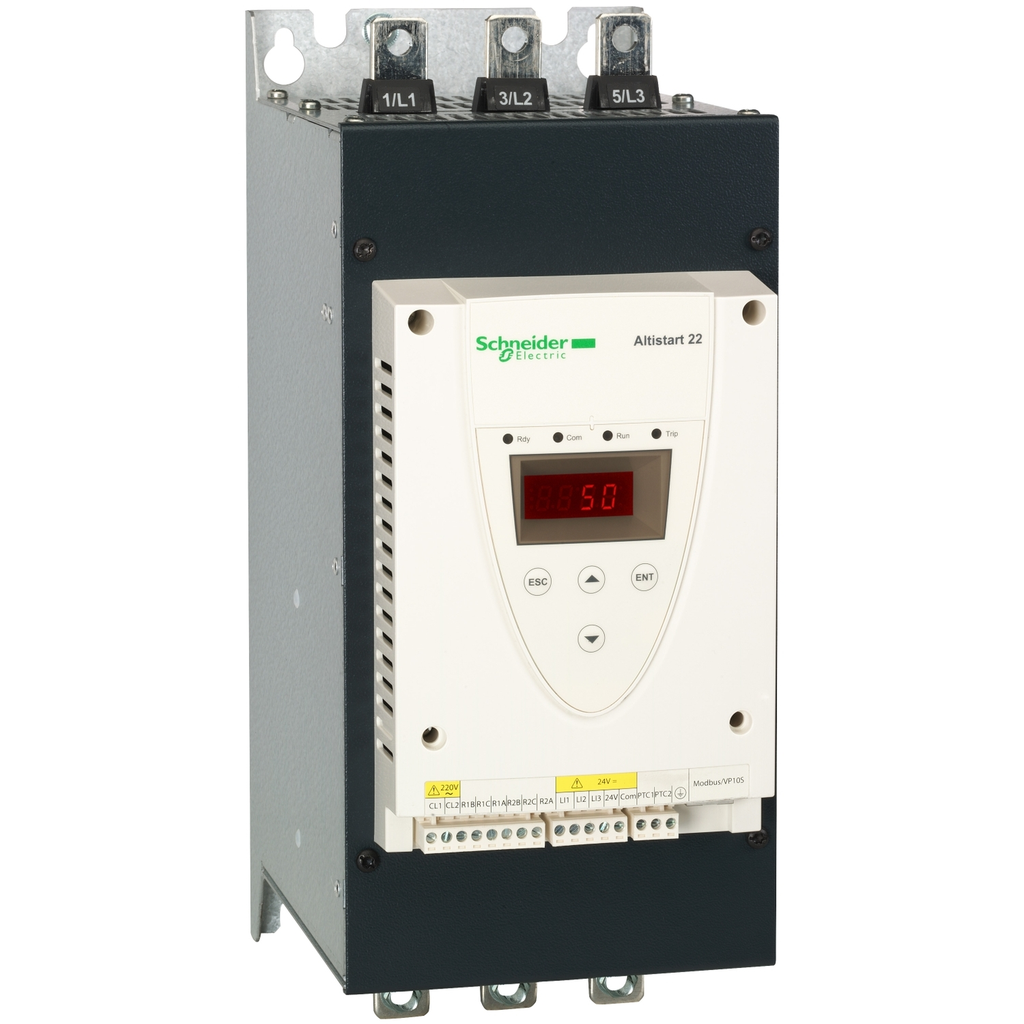

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 140A, a rated power from 40HP to 125HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

• Environment
• Product Certifications : C-tick || CCC || CSA || UL || GOST
• Standards : IEC 60947-4-2
• Electromagnetic Compatibility : conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
• Ambient Air Temperature For Operation : -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
• Shock Resistance : 15 gn 11 ms IEC 60068-2-27
• Vibration Resistance : 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6
• Pollution Degree : level 2 IEC 60664-1
• Noise Level : 56 dB
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 0-95 % without condensation or dripping water IEC 60068-2-3
• Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Device Connection : in the motor supply line
• Network Frequency : 45...66 Hz
• Minimum Switching Current : 100 mA 12 V DC relay outputs)
• [Uc] Control Circuit Voltage : 110 V - 15...10 % 50/60 Hz
• Height : 356 mm
• Discrete Output Type : relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
• Maximum Switching Current : 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
• Discrete Input Voltage : 110 V <= 121 V
• Marking : CE
• Net Weight : 18 kg
• Output Current : 0.4...1 Icl adjustable
• Installed Device : 31
• Connector Type : 1 RJ45
• Communication Data Link : serial
• Function Available : internal bypass
• Discrete Output Number : 2
• Control Circuit Consumption : 20 W
• Communication Port Protocol : Modbus
• Supply Voltage Limits : 177-660 V
• Discrete Input Type : LI1, LI2, LI3) logic, 5 mA 20 kOhm
• Physical Interface : RS485 multidrop
• Type Of Cooling : forced convection
• Discrete Input Number : 3
• Assembly Style : with heat sink
• Operating Position : vertical +/- 10 degree
• Ptc Probe Input : 750 Ohm
• Width : 150 mm
• Transmission Rate : 4800, 9600 or 19200 bps
• Depth : 229.5 mm
• Discrete Input Logic : positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
• Protection Type : phase failure line || thermal protection motor || thermal protection starter
• Supply Frequency : 50...60 Hz - 10...10 %
• Specifications
• Product Destination : asynchronous motors
• [Us] Rated Supply Voltage : 208...600 V - 15...10 %
• Maximum Horse Power Rating : 100 hp 460 V || 125 hp 575 V || 40 hp 208 V || 50 hp 230 V
• Range Of Product : Altistart 22
• Product Or Component Type : soft starter
• Component Name : ATS22
• Phase : 3 phase
• Power Dissipation In W : 82 W for standard applications
• Icl Starter Rating : 140 A connection in the motor supply line for standard applications
• Type Of Start : start with torque control (current limited to 3.5 In)
• Utilisation Category : AC-53A
• Product Specific Application : pumps and fans
• Ip Degree Of Protection : IP00
• Factory Setting Current : 124 A
