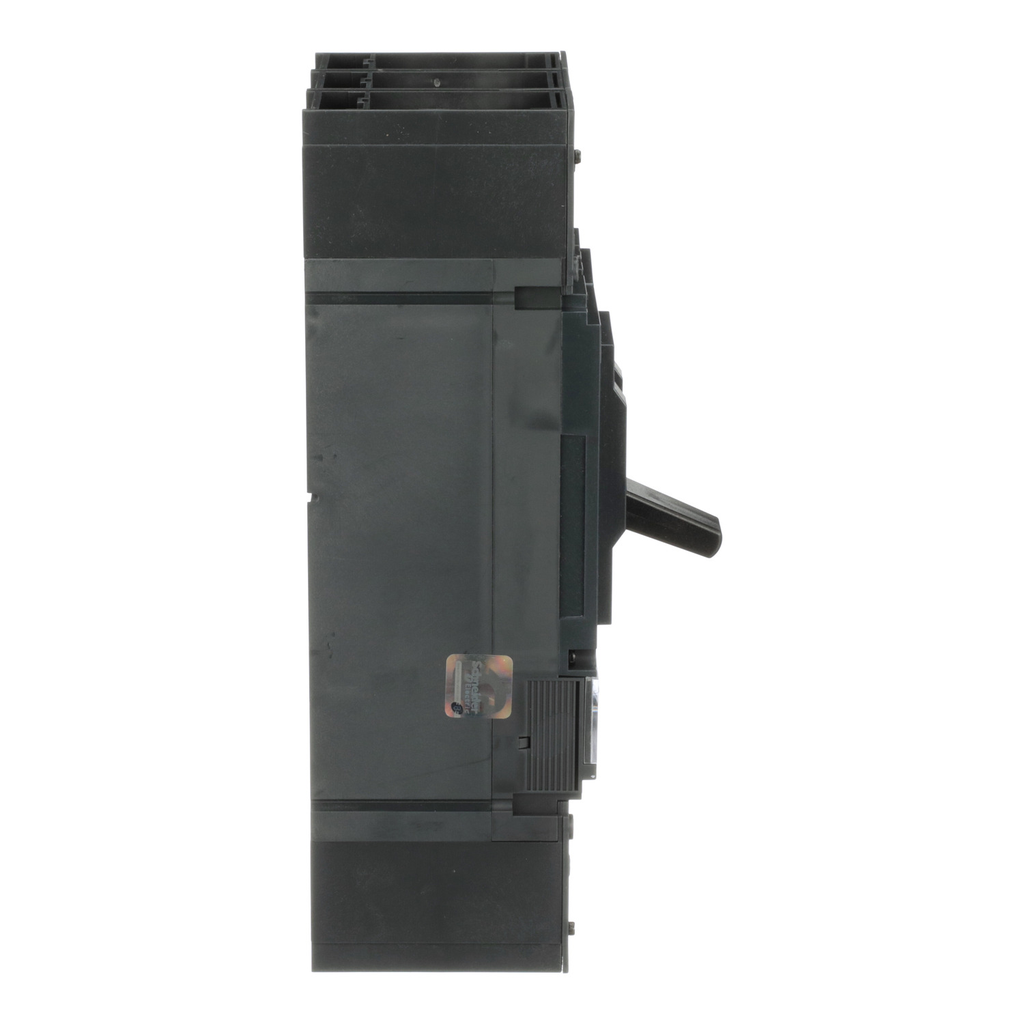

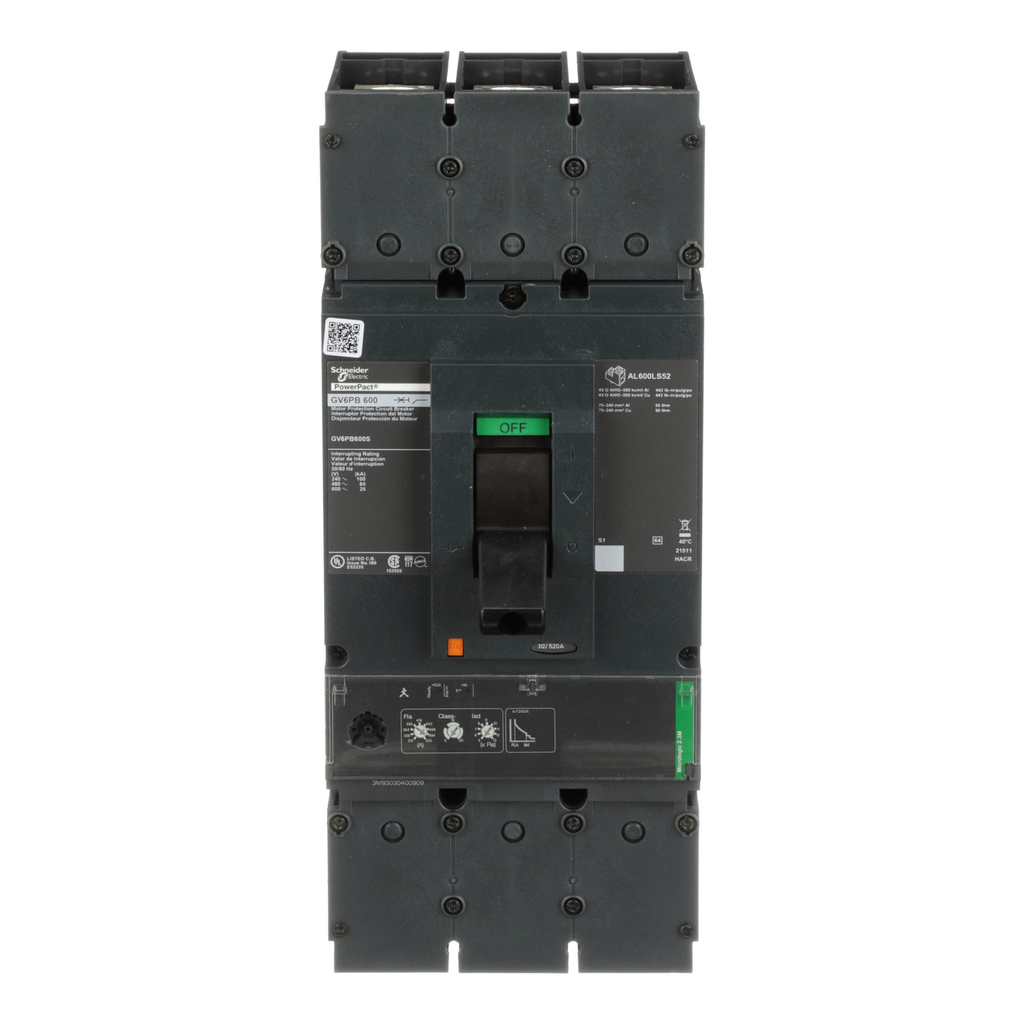

TeSys GV5 motor protective circuit breakers provide an efficient motor control and protection solution up to 520 amps. This 3 pole motor protective circuit breaker is rated at 600A. The thermal protection adjustable dials have settings of 312A to 520A, a selectable tripping class of 5, 10 or 20, and magnetic protection at 15 In. It has SCCR breaking capacity 25kA at 600Y/347V. This UL489 motor protective circuit breaker is has UL Listed, CSA, IEC, CCC, EAC, and Marine certifications.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 600 A
• Ue Rated Operational Voltage : 600 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : lugs, load, lugs, line
• Carbon Footprint Of The Distribution Phase A4 : 0.5775543976, 0.6 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3226776506
• Carbon Footprint Of The Installation Phase A5 : 0.029878509, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 15 kg CO2 eq., 15.0417243976
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 804 kg CO2 eq., 4803.8859006441
• Certificate Agency : UL Listed, CSA
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : N
• Stocking Flag : Y
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206029EN
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2543
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Awg Gauge : AWG 2/0...500 kcmil aluminium/copper
• Energy Efficiency Optimized : False
• Mounting Mode : unit mount
• Phase Failure Sensitivity : yes
• Poles Description : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Name : TeSys GV6
• Product Or Component Type : motor protection circuit breaker
• Returnability : No
• Software Version : EIME v5.5
• Sustainable Packaging : No
• Thermal Protection Adjustment Range : 312-520 A
• Tightening Torque : 4.4-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
• Total Lifecycle Carbon Footprint : 4 820 kg CO2 eq.
• Trip Unit Technology : electronicMicroLogic 2.3 M,
• Warranty In Months : 18
• Pep Code : ENVPEP2206029EN
• Database Version : 2015-04
• Pep Verification Date : 2016-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 600Y/347VAC and 125A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated short-circuit current interruption rating Ii at 480Vac = 65kA (according to UL489)& 10- Tripping curve: long time and instantanous protections
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 6938
• Energy Model - Manufacturing [A1-a3] : Energy model used: Mexico
• Energy Model - Installation [A5] : Electricity mix; AC; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; 120V; US
• Height Nominal : 11.3 in
• Width Nominal : 5.5 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 4819.8577355989
• Ambient Air Temperature For Operation : 40-40 °C
• Circularity Profile : ENVEOLI2206029EN
• Environmental Disclosure : ENVPEP2206029EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP2206029EN
• Pep Verification Date : 2016-12-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : motor protection circuit breaker
• ETIM
• ETIM 8 : EC000074
• ETIM 9 : EC000074
• Specifications
• Country of Origin : United States
• Depth : 6.61 in
