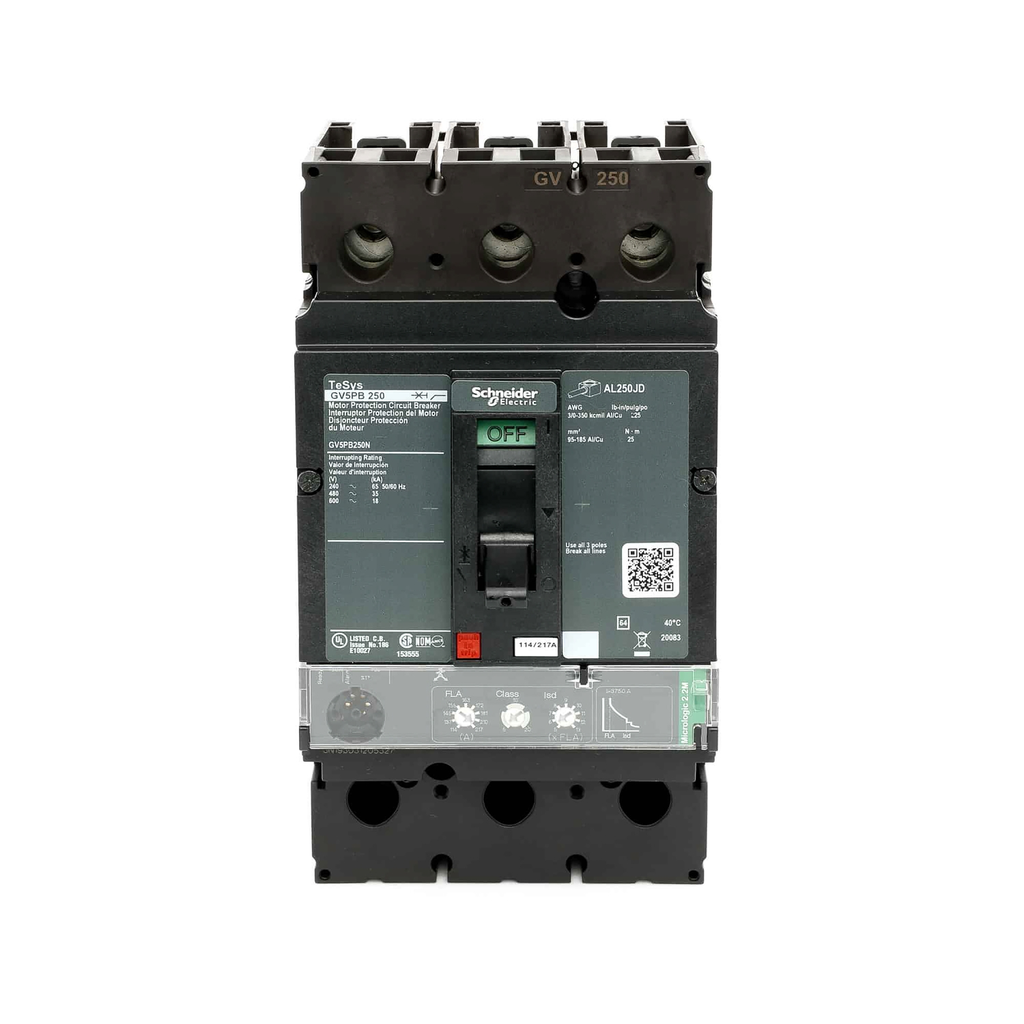

TeSys Motor Protection Circuit Breaker, 250A, 3P, 600V, 18kA

TeSys Motor Protection Circuit

SQDGV5PB250N GV5PB250N 3606486287613
1427.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-TeSys Motor Protection Circuit Breaker, 250A, 3P, 600V, 18kA-2
  • Country of Origin: USA
  • Depth: 5 in
  • Height: 7.52 in
  • Width: 4.12 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 4.12 in
    • Height : 7.52 in
    • Trip Unit Technology : electronicMicroLogic 2.2 M,
    • Line Rated Current : 250 A
    • [Ue] Rated Operational Voltage : 600 V AC
    • Phase Failure Sensitivity : yes
    • Product Or Component Type : motor protection circuit breaker
    • Product Name : TeSys GV5
    • Breaking Capacity : 65 kA 240 V AC || 35 kA 480 V AC || 18 kA 600 V AC
    • Thermal Protection Adjustment Range : 114-217 A
    • Poles Description : 3P
    • Breaking Capacity Code : N
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2206031EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2206031EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1876.409742108
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 15.0417243976
    • Carbon Footprint Of The Distribution Phase [A4] : 0.6 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 892 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.3226776506
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1892.3815770628
  • Complementary
    • Height : 7.52 in
    • Tightening Torque : 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
    • Product Certifications : UL Listed || CSA
    • Electrical Connection : lugs, load || lugs, line
    • Mounting Mode : unit mount
    • Awg Gauge : AWG 3/0...350 kcmil aluminium/copper
    • Width : 4.12 in
    • Depth : 5 in
  • Environment
    • Ambient Air Temperature For Operation : 40-40 °C
