SQUARE D

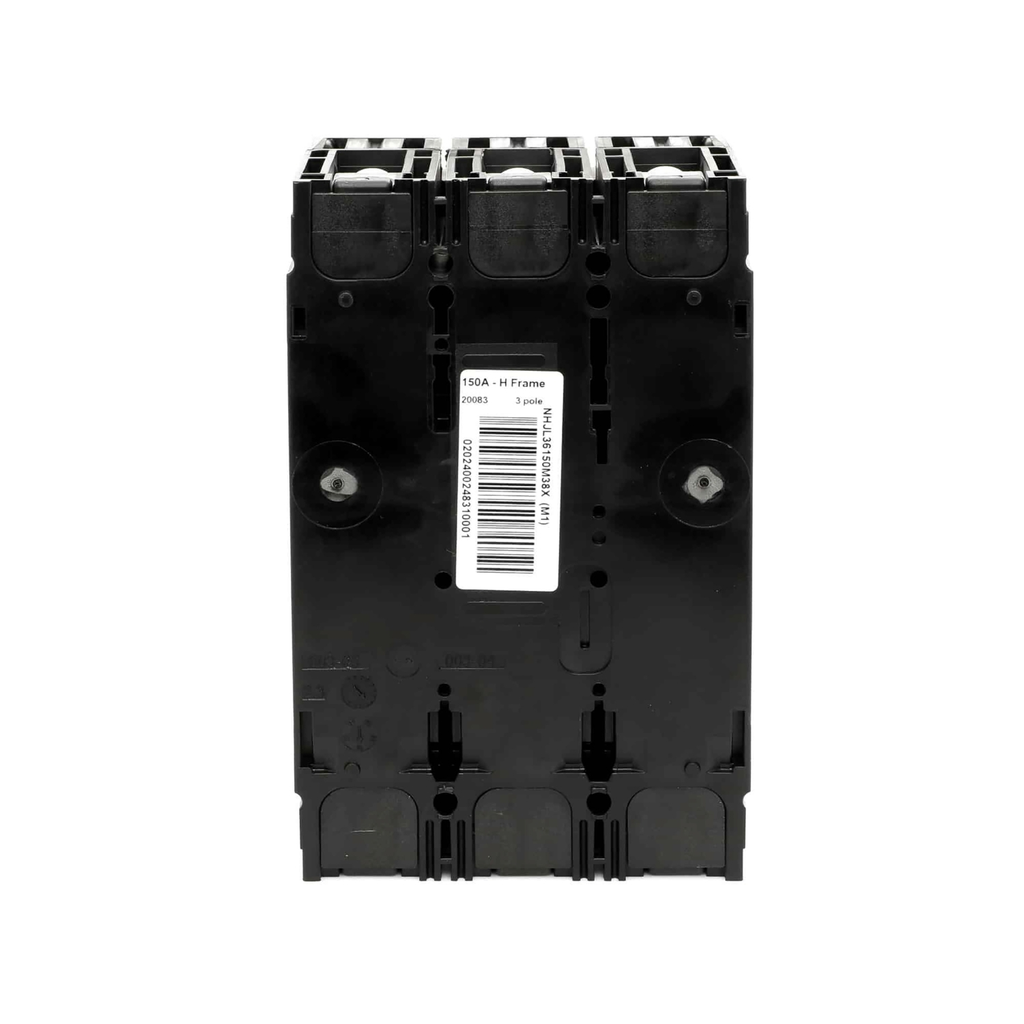

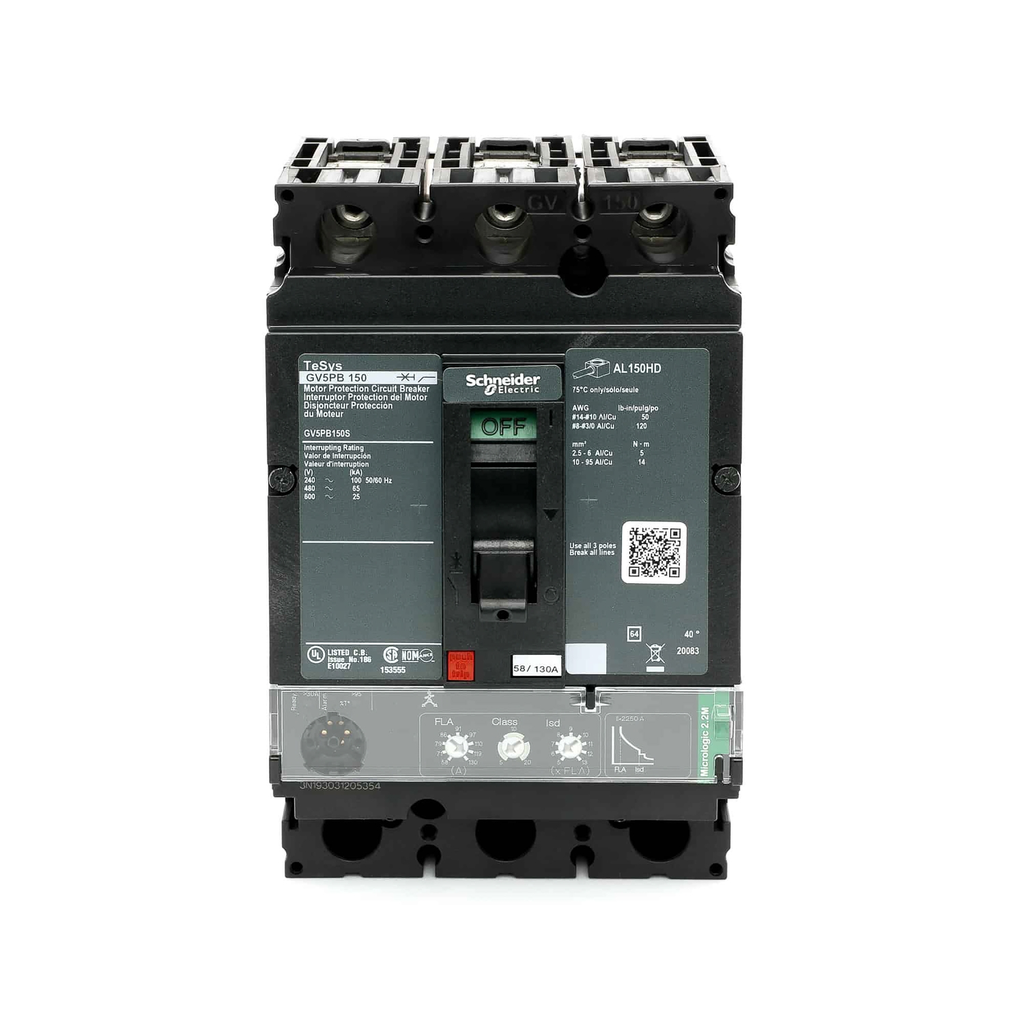

Motor circuit protector, TeSys GV5, 3 pole, 600VAC, max 150A rated, 25kA, unit mount

THERMAL MAG BREAKER

SQDGV5PB150S GV5PB150S SQDGV5PB150S
878.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-Motor circuit protector, TeSys GV5, 3 pole, 600VAC, max 150A rated, 25kA, unit mount-2
  • Country of Origin: USA
  • Depth: 4.36 in
  • Height: 6.4 in
  • Width: 4.12 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 4.12 in
    • Height : 6.4 in
    • Trip Unit Technology : electronicMicroLogic 2.2 M,
    • Line Rated Current : 150 A
    • [Ue] Rated Operational Voltage : 600 V AC
    • Phase Failure Sensitivity : yes
    • Product Or Component Type : motor protection circuit breaker
    • Product Name : TeSys GV5
    • Breaking Capacity : 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
    • Thermal Protection Adjustment Range : 58-130 A
    • Poles Description : 3P
    • Breaking Capacity Code : S
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206028EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2206028EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 675.7844680064
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 15.0417243976
    • Carbon Footprint Of The Distribution Phase [A4] : 0.6 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 692 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.3226776506
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 691.7563029613
  • Complementary
    • Height : 6.4 in
    • Tightening Torque : 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
    • Product Certifications : UL Listed || CSA
    • Electrical Connection : lugs, load || lugs, line
    • Mounting Mode : unit mount
    • Awg Gauge : AWG 14...AWG 3/0 aluminium/copper
    • Width : 4.12 in
    • Depth : 4.36 in
  • Environment
    • Ambient Air Temperature For Operation : 40-40 °C
