SQUARE D

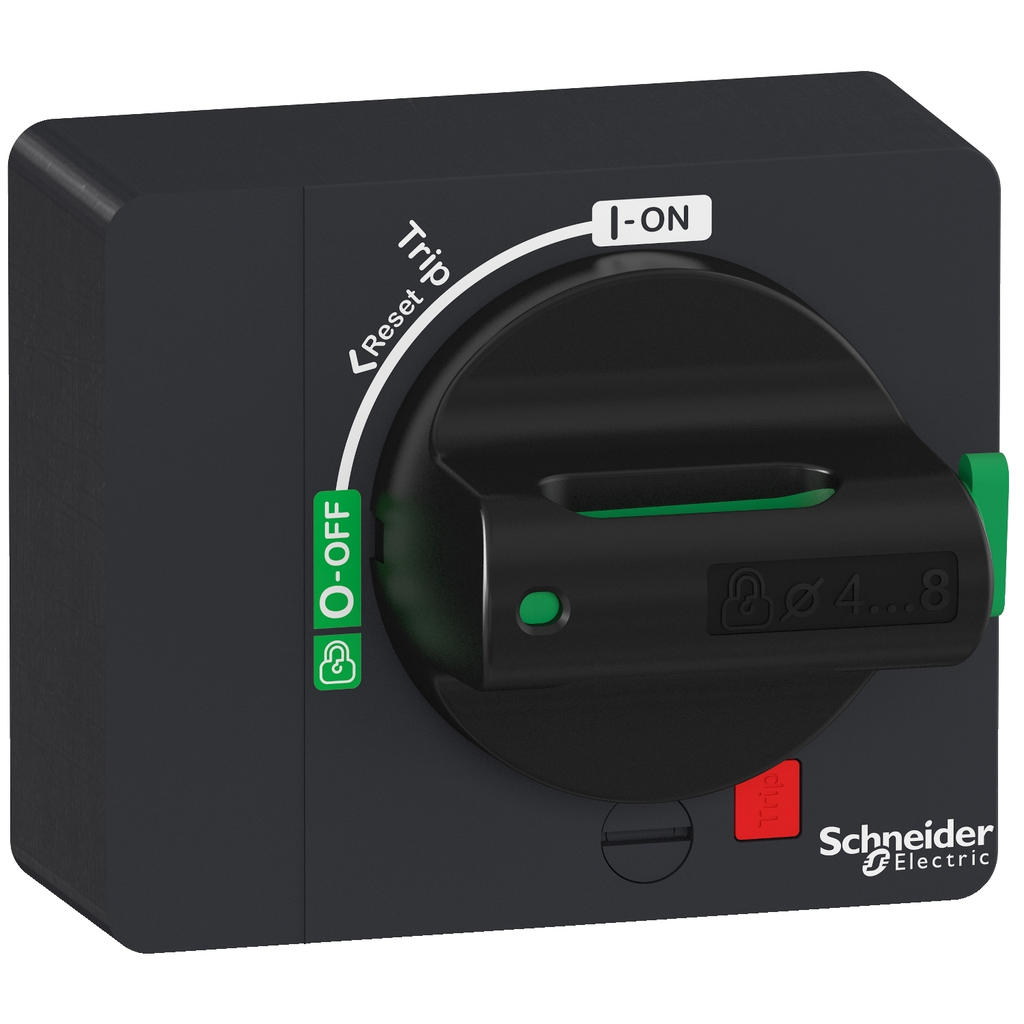

Rotary handle, TeSys GV4, direct, fixed, black, IP54

ROTARY HANDLE FOR BV4 MSP

SQDGV4ADN01 GV4ADN01 3606485444345
253.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-Rotary handle, TeSys GV4, direct, fixed, black, IP54-1
  • Country of Origin: Hungary
  • Handle Color: Black
TeSys GV direct rotary handle, for motor circuit breakers GV4PE, LE, PEM, PB or replacement part for GV4P, GV4L handle. For main switch usage, it provides a black handle on a black bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GV direct rotary handle, for motor circuit breakers GV4PE, LE, PEM, PB or replacement part for GV4P, GV4L handle. For main switch usage, it provides a black handle on a black bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2204005EN
    • Halogen Content Performance : Product contains halogen above thresholds
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2204005EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Locking Options Description : 1 to 3 padlocks Ø 4 to Ø 8
    • Range Compatibility : TeSys TeSys GV4 || TeSys TeSys BV4
    • Mounting Location : front side
    • Mounting Mode : fixed
  • Specifications
    • Country of Origin : Hungary
    • Rotary Handle Mounting Style : direct
    • Handle Front Plate Colour : black
    • Accessory / Separate Part Category : control accessory
    • Handle Colour : black
    • Product Or Component Type : rotary handle
    • Marking : OFF - Trip - ON
    • Range : TeSys
    • Rotary Handle Padlocking : 1 to 3 padlocks || padlock in ON position || padlock in OFF position
  • Environment
    • Ip Degree Of Protection : IP40
