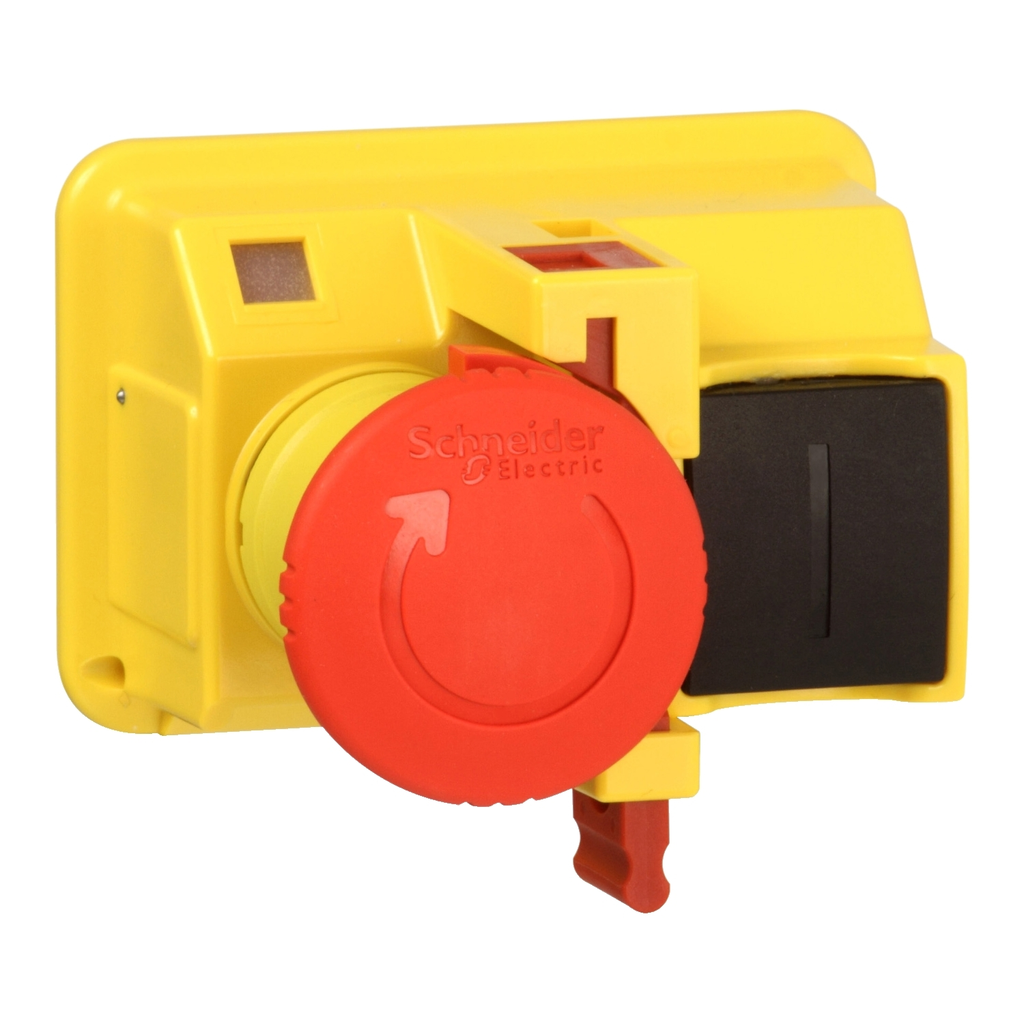

Emergency stop pushbutton,TeSys Deca Fram 2,turn to release,padlocking,for GV2M*01 enclosures

MANUAL STARTER PUSH BUTTON KIT

SQDGV2K04 GV2K04 3389110733563
122.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-Emergency stop pushbutton,TeSys Deca Fram 2,turn to release,padlocking,for GV2M*01 enclosures-1
  • Country of Origin: Czechia
  • Diameter: 40 mm
  • Height: 48 mm
  • Net Weight: 0.12 kg
  • Warranty Length: 18 mth
  • Weight: 0.12 kg
  • Width: 73 mm
TeSys enclosed starters accessory, emergency stop pushbutton. Mushroom head stop pushbutton, Ø 40 mm, red, with latching position and release by turning, supplied with an IP55 sealing kit GV2E01. To be mounted on empty enclosures LE1GVMEK, GV2MP, GV2MC (except GV2MCK04 already equipped) for use with thermal magnetic circuit breakers GV2ME (to be ordered separately). Padlockable in position O (OFF) with 1 padlock (to be ordered separately).
QTY
  • Product Description
  • Features
  • Specifications
TeSys enclosed starters accessory, emergency stop pushbutton. Mushroom head stop pushbutton, Ø 40 mm, red, with latching position and release by turning, supplied with an IP55 sealing kit GV2E01. To be mounted on empty enclosures LE1GVMEK, GV2MP, GV2MC (except GV2MCK04 already equipped) for use with thermal magnetic circuit breakers GV2ME (to be ordered separately). Padlockable in position O (OFF) with 1 padlock (to be ordered separately).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ip Degree Of Protection : IP55
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2207006
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2207006
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 48 mm
    • Diameter : 40 mm
    • Locking Options Description : padlock in OFF position
    • Type Of Operator : latching turn to release
    • Net Weight : 0.12 kg
    • Provided Equipment : 1 IP55 sealing kit
    • Color : Red
    • Width : 73 mm
    • Product Compatibility : GV2MP || LE1GVMEK || GV2MC
  • Specifications
    • Country of Origin : Czechia
    • Width : 73 mm
    • Height : 48 mm
    • Weight : 0.12 kg
    • Accessory / Separate Part Category : enclosure accessory
    • Product Or Component Type : mushroom head emergency stop push-button
    • Product Name : GV2 || LE
    • Range : TeSys
    • Device Short Name : GV2K
