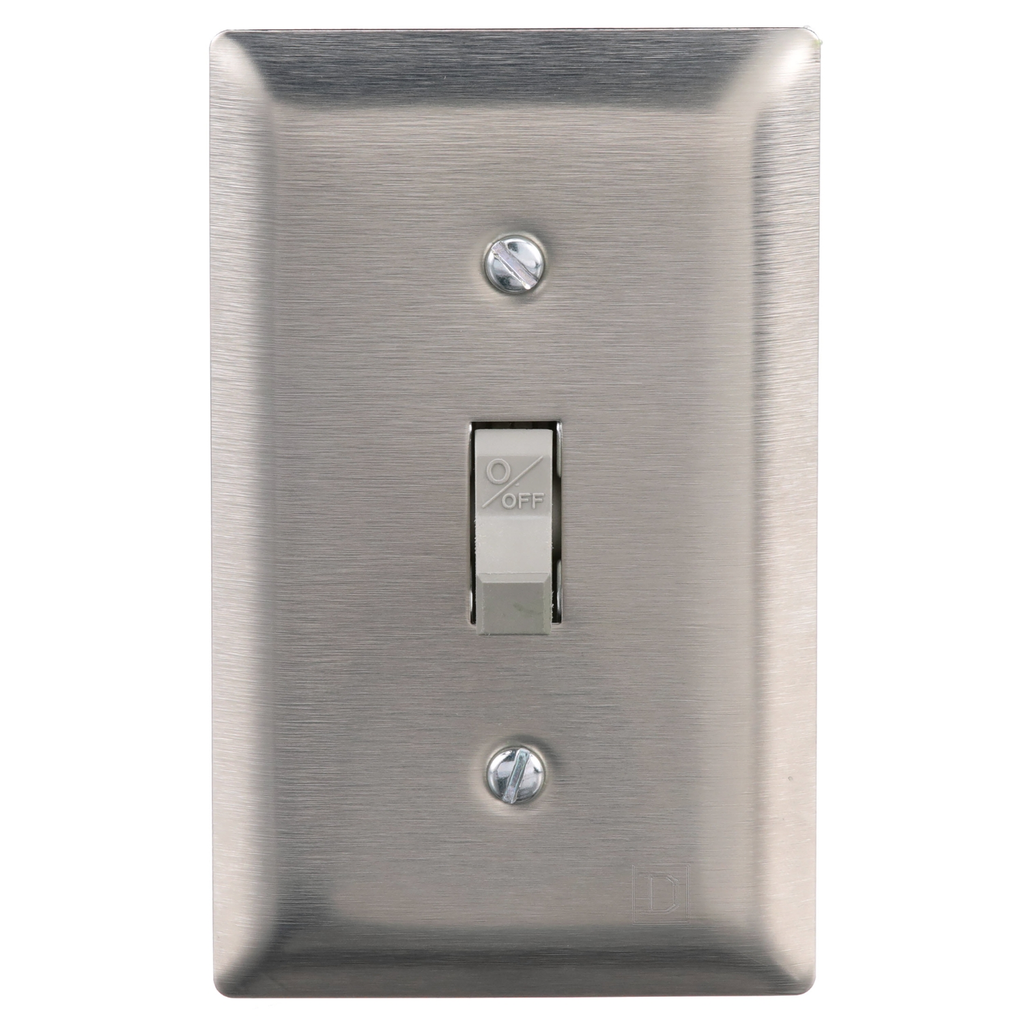

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 stainless steel flush

MANUAL SWITCH 600VAC K+OPTIONS

SQD2510KS2 2510KS2 785901554684
187.74 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 stainless steel flush-2
  • Country of Origin: Mexico
  • Depth: 2.5 in
  • Height: 4.5 in
  • Warranty Length: 18 mth
  • Width: 2.75 in
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 flush mounted unit with a stainless steel flush plate can be mounted in a standard switch box or in a machine cavity without a box. Enclosure is 4.50 inches tall, 2.75 inches wide and 2.50 inches deep. This device is UL Listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 flush mounted unit with a stainless steel flush plate can be mounted in a standard switch box or in a machine cavity without a box. Enclosure is 4.50 inches tall, 2.75 inches wide and 2.50 inches deep. This device is UL Listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
    • Nema Degree Of Protection : not rated (flush plate) Stainless Steel standard size
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : No
    • Eu Rohs Directive : Not compliant
  • Complementary
    • Height : 4.5 in
    • Phase : 3 phase
    • Control Type : toggle
    • Motor Starter Type : non reversing
    • Local Signalling : no indicator
    • Poles Description : 3P
    • Electrical Connection : screw clamp terminals
    • Line Rated Current : 30 A
    • Awg Gauge : AWG 14...AWG 10 copper
    • Width : 2.75 in
    • Depth : 2.5 in
    • Maximum Horse Power Rating : 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
    • [Ue] Rated Operational Voltage : 600 V AC || 230 V DC
  • Specifications
    • Country of Origin : Mexico
    • Width : 2.75 in
    • Height : 4.5 in
    • Range Of Product : K
    • Product Or Component Type : Single Unit Manual Switch
