Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure

MANUAL SWITCH 600VAC K+OPTIONS

SQD2510KG1A 2510KG1A 785901554486
157.30 / EACH
http://schema.org/OutOfStock

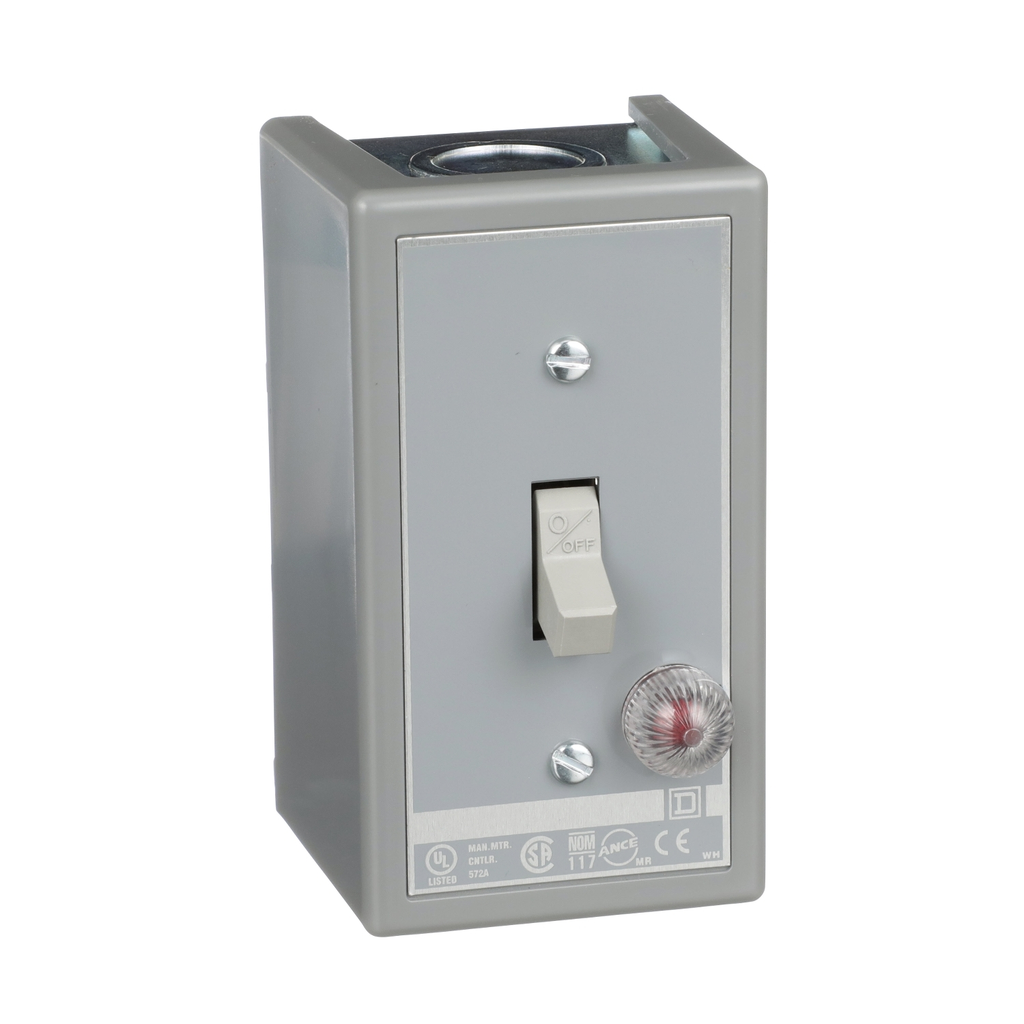

Mayer-DDS-Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure-2
  • Certifications: CSA LR25490 Class 3211 05, UL Listed File E42243 CCN NLRV
  • Depth: 2.75 in
  • Height: 4.25 in
  • Line Rated Current: 30 A
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 2.44 in
Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
QTY
  • Product Description
  • Specifications
Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
  • Environment
    • Product Certifications : UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
    • Nema Degree Of Protection : NEMA 1 Plastic standard size
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Not compliant
  • Complementary
    • Height : 4.25 in
    • Phase : 1 phase
    • Control Type : toggle
    • Motor Starter Type : non reversing
    • Local Signalling : red indicator, 115 V
    • Poles Description : 2P
    • Electrical Connection : screw clamp terminals
    • Cable Entry : 0.5" and 0.75" knock-outs (top and bottom)
    • Line Rated Current : 30 A
    • Awg Gauge : AWG 14...AWG 10 copper
    • Width : 2.44 in
    • Depth : 2.75 in
    • Maximum Horse Power Rating : 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
    • [Ue] Rated Operational Voltage : 600 V AC || 230 V DC
  • Specifications
    • Range Of Product : K
    • Product Or Component Type : Single Unit Manual Switch
