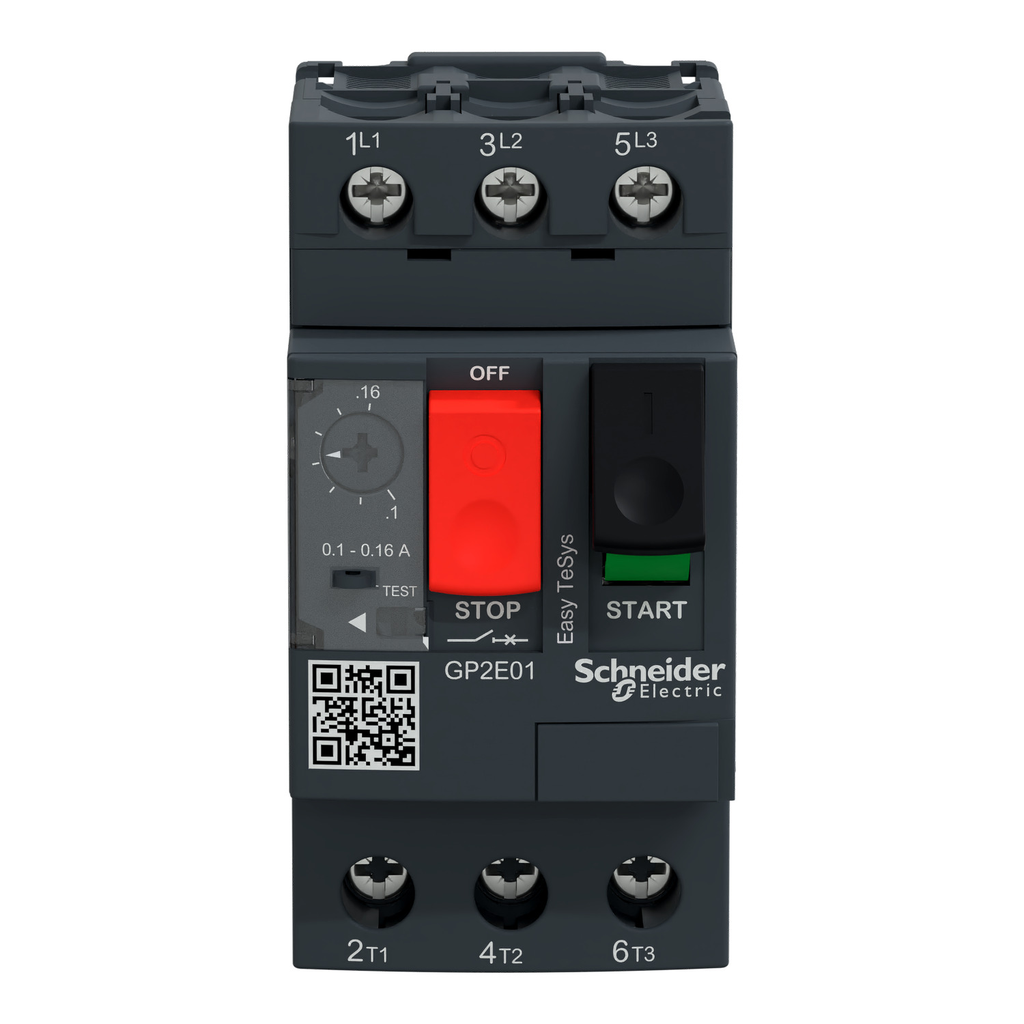

Easy TeSys manual motor controller, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : Thailand
• Width : 45 mm
• Height : 89 mm
• Weight : 0.26 kg
• Product Or Component Type : motor controller
• Product Name : Easy TeSys GP2E
• Range : Easy TeSys
• Device Application : motor
• Device Short Name : GP2E
• Trip Unit Technology : thermal-magnetic
• Environment
• Product Certifications : cUL
• Ik Degree Of Protection : IK04
• Ambient Air Temperature For Operation : -20-60 °C
• Standards : EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || cUL
• Ambient Air Temperature For Storage : -40-80 °C
• Protective Treatment : TH
• Ip Degree Of Protection : IP20 IEC 60529
• Operating Altitude : 6561.68 ft (2000 m)
• Fire Resistance : 960 °C IEC 60695-2-1
• Complementary
• Line Rated Current : 0.16 A
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz IEC 60947-2
• Height : 89 mm
• Phase Failure Sensitivity : yes IEC 60947-4-1
• Rated Duty : continuous IEC 60947-4-1
• Network Type : AC
• Magnetic Tripping Current : 1.5-1.5 A
• [Ith] Conventional Free Air Thermal Current : 0.16 A IEC 60947-4-1
• Maximum Operating Rate : 25 cyc/h
• Operating Position : any position
• Connections - Terminals : screw clamp terminals 1-6 mm² - solid || screw clamp terminals 1.5-6 mm² - flexible without cable end || screw clamp terminals 1-4 mm² - flexible with cable end || screw clamp terminals AWG 18...AWG 8)
• Utilisation Category : AC-3 IEC 60947-4-1 || category A IEC 60947-2
• Net Weight : 0.26 kg
• Fixing Mode : 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-2
• [Ics] Rated Service Short-Circuit Breaking Capacity : 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2
• Control Type : push-button
• Power Dissipation Per Pole : 2.5 W
• Electrical Durability : 100000 cycles AC-3 440 V
• Breaking Capacity : 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
• Suitability For Isolation : yes IEC 60947-1
• [Ui] Rated Insulation Voltage : 690 V AC 50/60 Hz IEC 60947-2
• Trip Unit Rating : 0.1-0.16 A
• Tightening Torque : 1.7 N.m screw clamp terminals
• Mechanical Durability : 100000 cycles
• Poles Description : 3P
• Width : 45 mm
• Depth : 78.5 mm
• Network Frequency : 50/60 Hz IEC 60947-4-1
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP121004
• Packaging Without Single Use Plastic : Yes
• Scip Number : 04104e70-ba29-493c-b2cc-b5837d1f879b
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI121004
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 42.650938629908836
