Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole, 10HP at 380/575VAC, 3 phase, no indicator, NEMA 12

MANUAL STARTER 600VAC

SQD2510MCA3 2510MCA3 785901845317
558.72 / EACH
http://schema.org/OutOfStock
Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole, 10HP at 380/575VAC, 3 phase, no indicator, NEMA 12
  • Depth: 5.76 in
  • Height: 10.92 in
  • Warranty Length: 18 mth
  • Width: 5.78 in

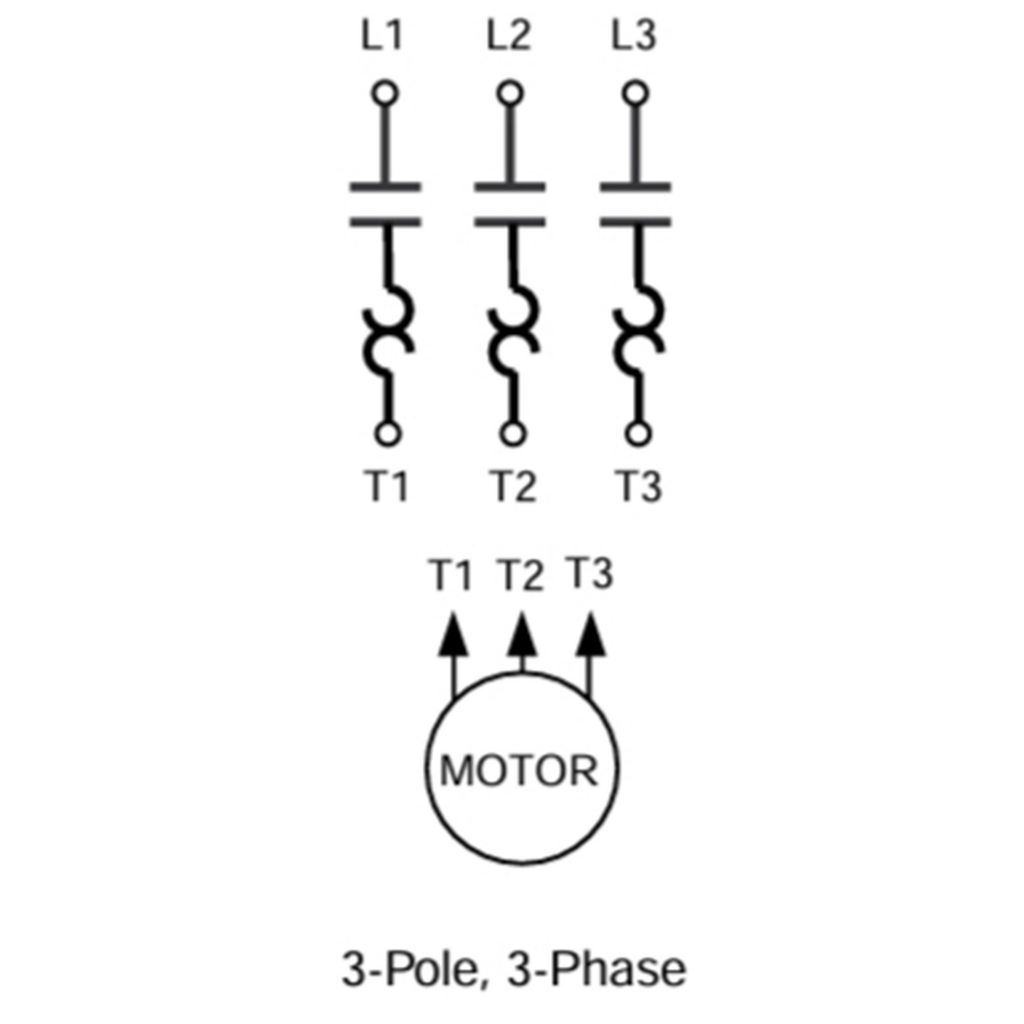

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL listed file E42243 CCN NLRV || CSA LR60905 class 3211 05
    • Nema Degree Of Protection : NEMA 12 painted sheet steel
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Thermal Overload Type : melting alloy
    • Height : 10.92 in
    • Auxiliary Contact Composition : without
    • Maximum Horse Power Rating : 7.5-7.5 hp 200...230 V AC, 3 phase || 10-10 hp 380...575 V AC, 3 phase
    • Control Type : push-button
    • Motor Starter Type : non reversing
    • Local Signalling : no indicator
    • Number Of Thermal Units Required : 3
    • Poles Description : 3P
    • Electrical Connection : pressure wire clamp
    • Awg Gauge : AWG 14...AWG 8 copper
    • Width : 5.78 in
    • Depth : 5.76 in
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Country of Origin : Mexico
    • Width : 5.78 in
    • Height : 10.92 in
    • Range Of Product : M
    • Nema Size : M-1
    • Product Or Component Type : Manual Starter
