Manual starter, integral horsepower, NEMA M1, 600VAC, 2 pole, 3HP at 230VAC, 1 phase, no indicator, NEMA 1

MANUAL STARTER SIZE M-1

SQD2510MCG1 2510MCG1 785901792024
387.09 / EACH
http://schema.org/OutOfStock
Manual starter, integral horsepower, NEMA M1, 600VAC, 2 pole, 3HP at 230VAC, 1 phase, no indicator, NEMA 1
  • Depth: 4.13 in
  • Height: 8.63 in
  • Warranty Length: 18 mth
  • Width: 5 in

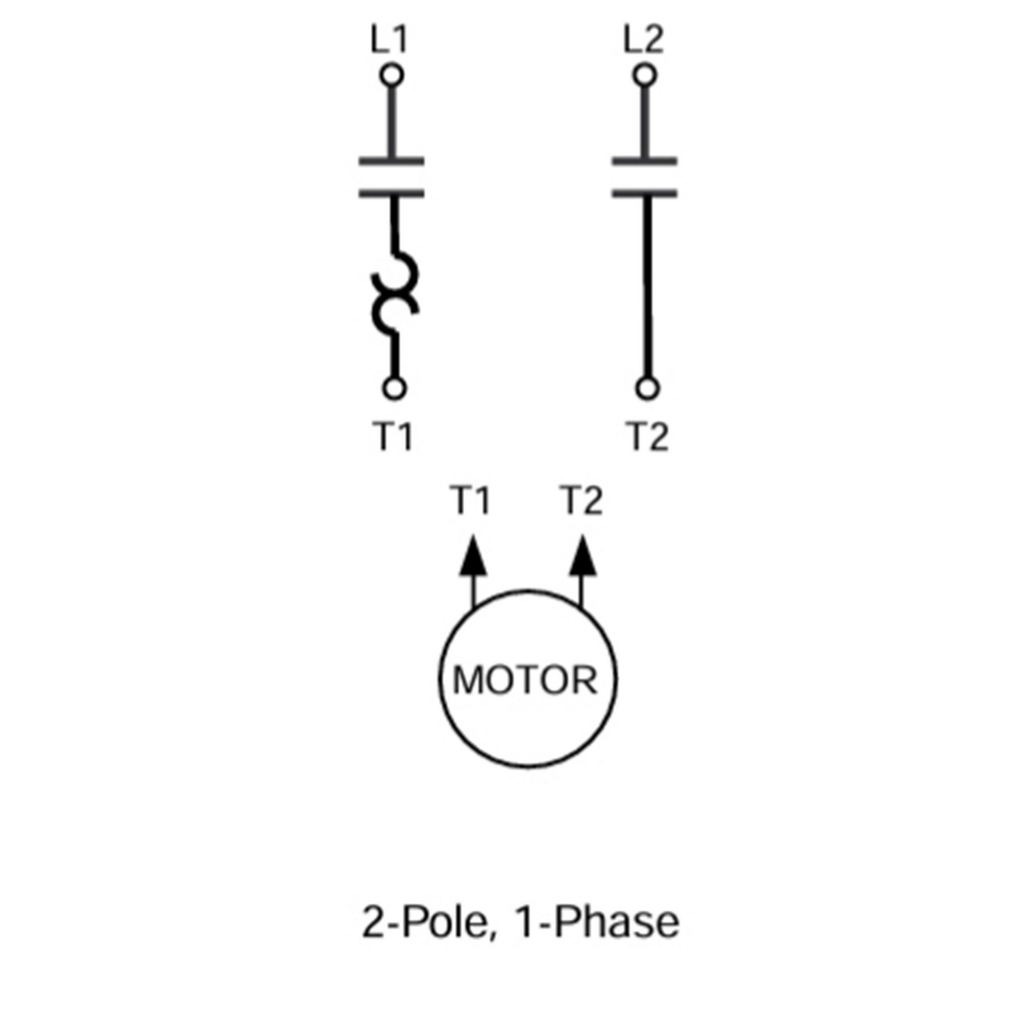

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 two pole starter is rated for 2 HP at 115 VAC and 3 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 two pole starter is rated for 2 HP at 115 VAC and 3 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Complementary
    • Thermal Overload Type : melting alloy
    • Height : 8.63 in
    • Auxiliary Contact Composition : without
    • Maximum Horse Power Rating : 2-2 hp 115 V AC, 1 phase || 3-3 hp 230 V AC, 1 phase
    • Control Type : push-button
    • Motor Starter Type : non reversing
    • Local Signalling : no indicator
    • Number Of Thermal Units Required : 1
    • Poles Description : 2P
    • Electrical Connection : pressure wire clamp
    • Awg Gauge : AWG 14...AWG 8 copper
    • Width : 5 in
    • Depth : 4.13 in
    • [Ue] Rated Operational Voltage : 600 V AC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : Mexico
    • Width : 5 in
    • Height : 8.63 in
    • Range Of Product : M
    • Nema Size : M-1
    • Product Or Component Type : Manual Starter
