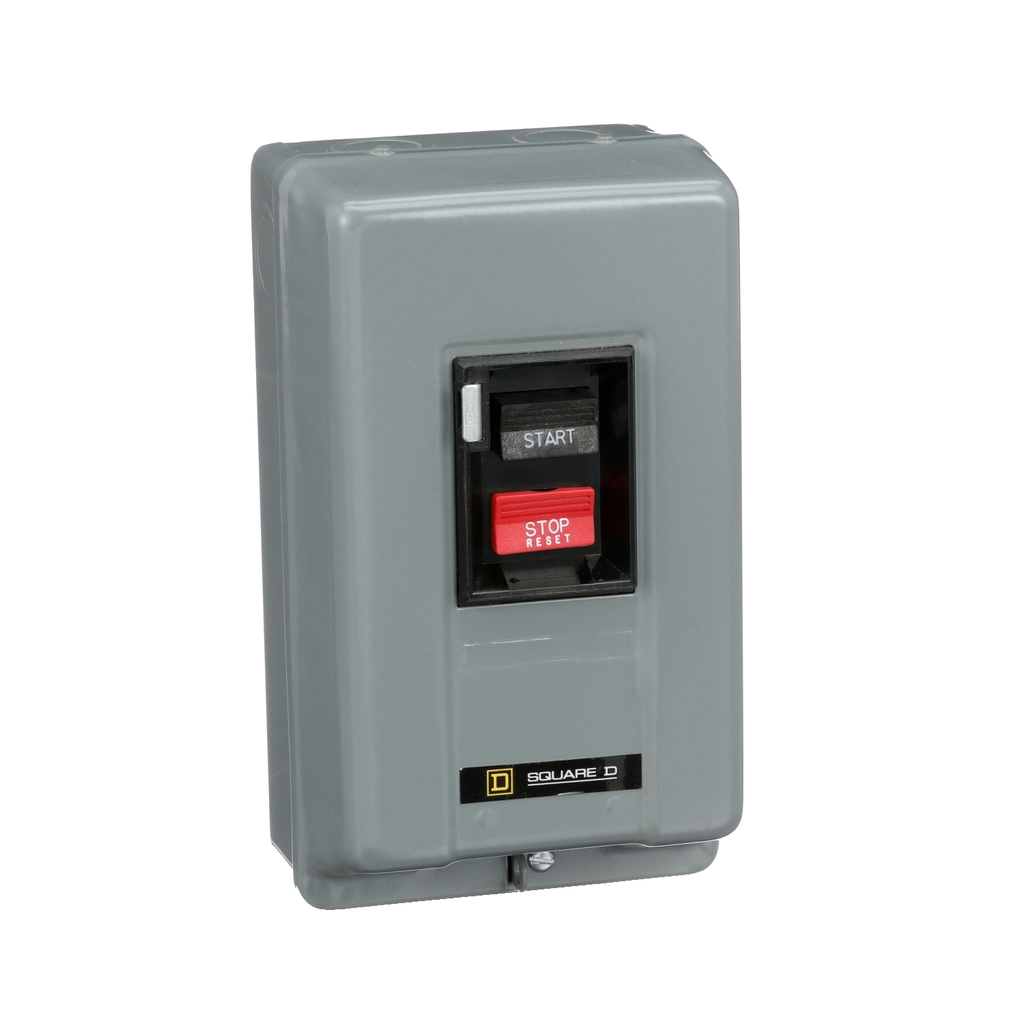

Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 1

STARTER - 115/460 575V

SQD2510MBG2 2510MBG2 785901792536
329.98 / EACH
http://schema.org/OutOfStock
Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 1
  • Certifications: CSA LR60905 Class 3211 05, UL Listed File E42243 CCN NLRV
  • Contact Configuration: Without
  • Depth: 4.13 in
  • Height: 8.63 in
  • Net Weight: 1.88 kg
  • Warranty Length: 18 mth
  • Width: 5 in
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.14 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.14 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
  • Environment
    • Product Certifications : CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV
    • Nema Degree Of Protection : NEMA 1 painted sheet steel
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Thermal Overload Type : melting alloy
    • Height : 8.63 in
    • Auxiliary Contact Composition : without
    • Maximum Horse Power Rating : 3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase
    • Net Weight : 1.88 kg
    • Control Type : push-button
    • Motor Starter Type : non reversing
    • Local Signalling : no indicator
    • Number Of Thermal Units Required : 3
    • Poles Description : 3P
    • Electrical Connection : pressure wire clamp
    • Awg Gauge : AWG 14...AWG 8 copper
    • Width : 5 in
    • Depth : 4.13 in
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Range Of Product : M
    • Nema Size : M-0
    • Product Or Component Type : Manual Starter
