Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, green indicator, NEMA 4, 1 conduit opening

Manual Starter, fractional hor

SQD2510FW1PG 2510FW1PG 785901342298
466.21 / EACH
http://schema.org/OutOfStock

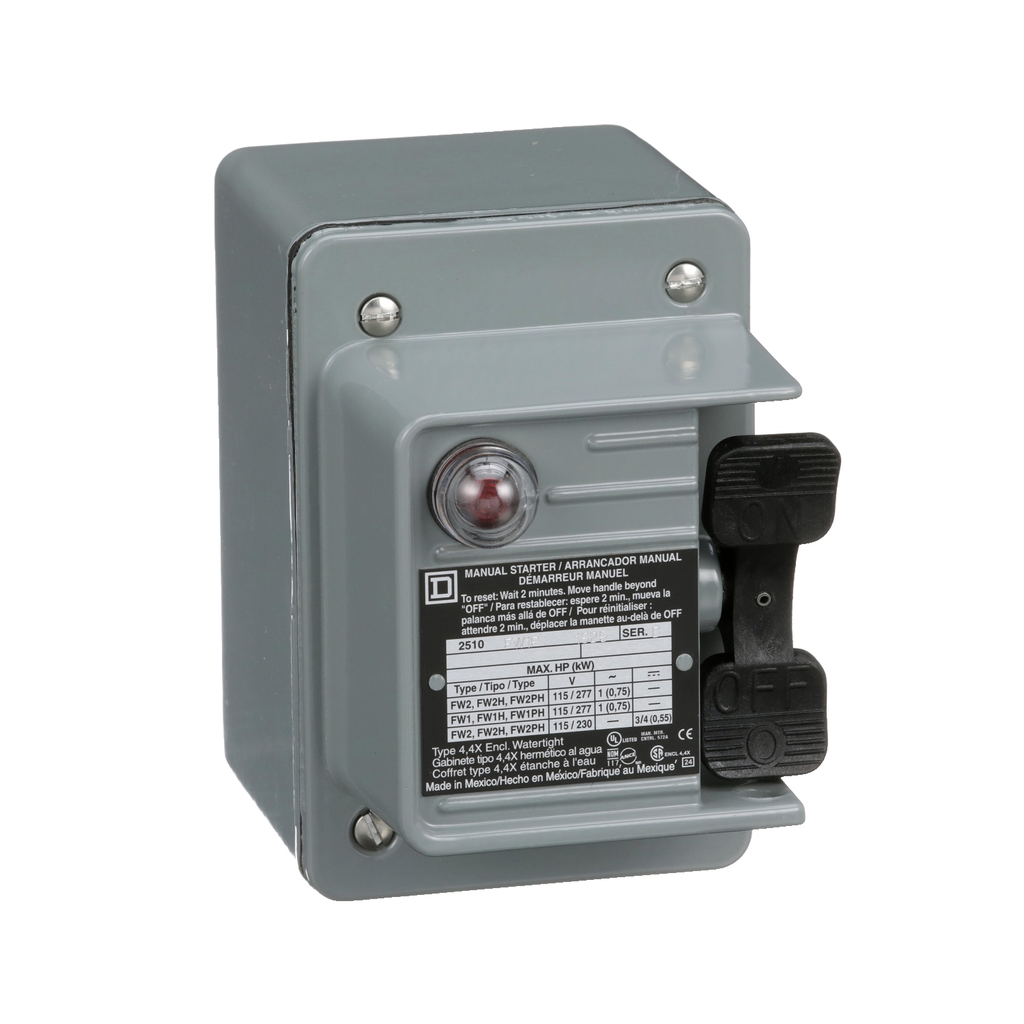

Mayer-DDS-Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, green indicator, NEMA 4, 1 conduit opening-1
  • Cable Entry: 0.75 NPT (bottom)
  • Country of Origin: USA
  • Depth: 4.56 in
  • Height: 4.38 in
  • Warranty Length: 18 mth
  • Width: 3 in
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This manual starter is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring.
QTY
  • Product Description
  • Features
  • Specifications
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This manual starter is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
    • Nema Degree Of Protection : NEMA 4 die cast zinc alloy standard size
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Reset : manual
    • Height : 4.38 in
    • Phase : 1 phase
    • Control Type : toggle switch (with lock-off)
    • Motor Starter Type : non reversing
    • Poles Description : 1P
    • Electrical Connection : screw clamp terminals
    • Cable Entry : 0.75 NPT (bottom)
    • Line Rated Current : 16 A
    • Local Signalling : green indicator
    • Awg Gauge : AWG 14...AWG 12 copper
    • Width : 3 in
    • Depth : 4.56 in
    • Maximum Horse Power Rating : 1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC
    • [Ue] Rated Operational Voltage : 277 V AC
  • Specifications
    • Country of Origin : United States
    • Width : 3 in
    • Height : 4.38 in
    • Thermal Overload Type : melting alloy
    • Range Of Product : F
    • Product Or Component Type : Single Unit Manual Starter
