SQUARE D

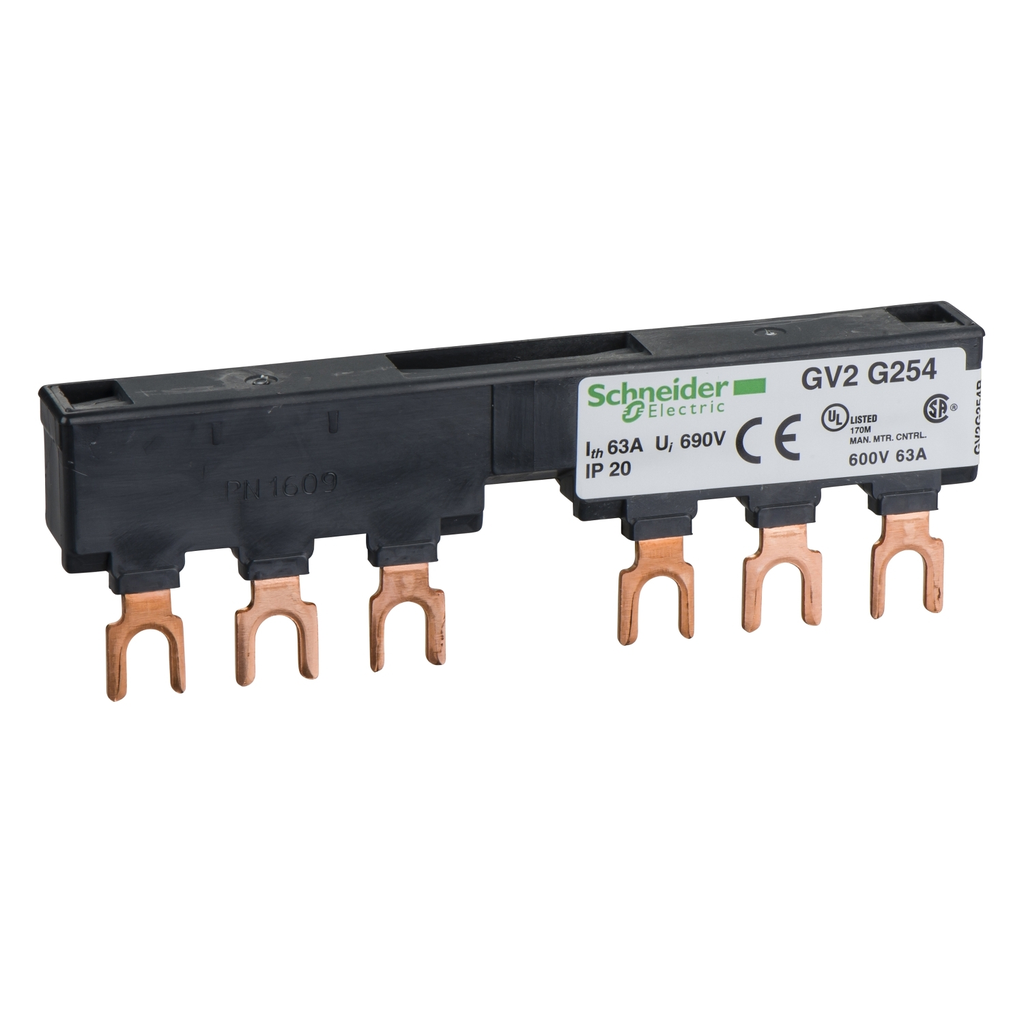

Linergy FT, Comb busbar, 63A, 2 tap-offs, 54mm pitch

MANUAL STARTER BUSBAR 600VAC 6

SQDGV2G254 GV2G254 3389110555936
24.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Linergy FT, Comb busbar, 63A, 2 tap-offs, 54mm pitch-1
  • Country of Origin: Romania
  • Length: 98 mm
  • Net Weight: 0.038 kg
  • Warranty Length: 18 mth
  • Weight: 0.038 kg
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
QTY
  • Product Description
  • Specifications
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
  • Specifications
    • Country of Origin : Romania
    • Length : 98 mm
    • Weight : 0.038 kg
    • Connection Pitch : 54 mm
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : comb busbar
    • [Ith] Conventional Free Air Thermal Current : 63 A
    • Product Name : FT
    • Range : Linergy
    • Poles Description : 3P
    • Number Of Tap-Offs : 2
    • Range Compatibility : TeSys GV2 || TeSys K || TeSys U || TeSys Deca
    • Device Short Name : GV2G
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2207006
    • Packaging Without Single Use Plastic : No
    • Circularity Profile : ENVEOLI2207006
    • Take-Back : No
  • Complementary
    • [Ui] Rated Insulation Voltage : 690 V
    • Length : 98 mm
    • Net Weight : 0.038 kg
    • Mounting Location : on terminal
  • Contractual warranty
    • Warranty : 18 months
