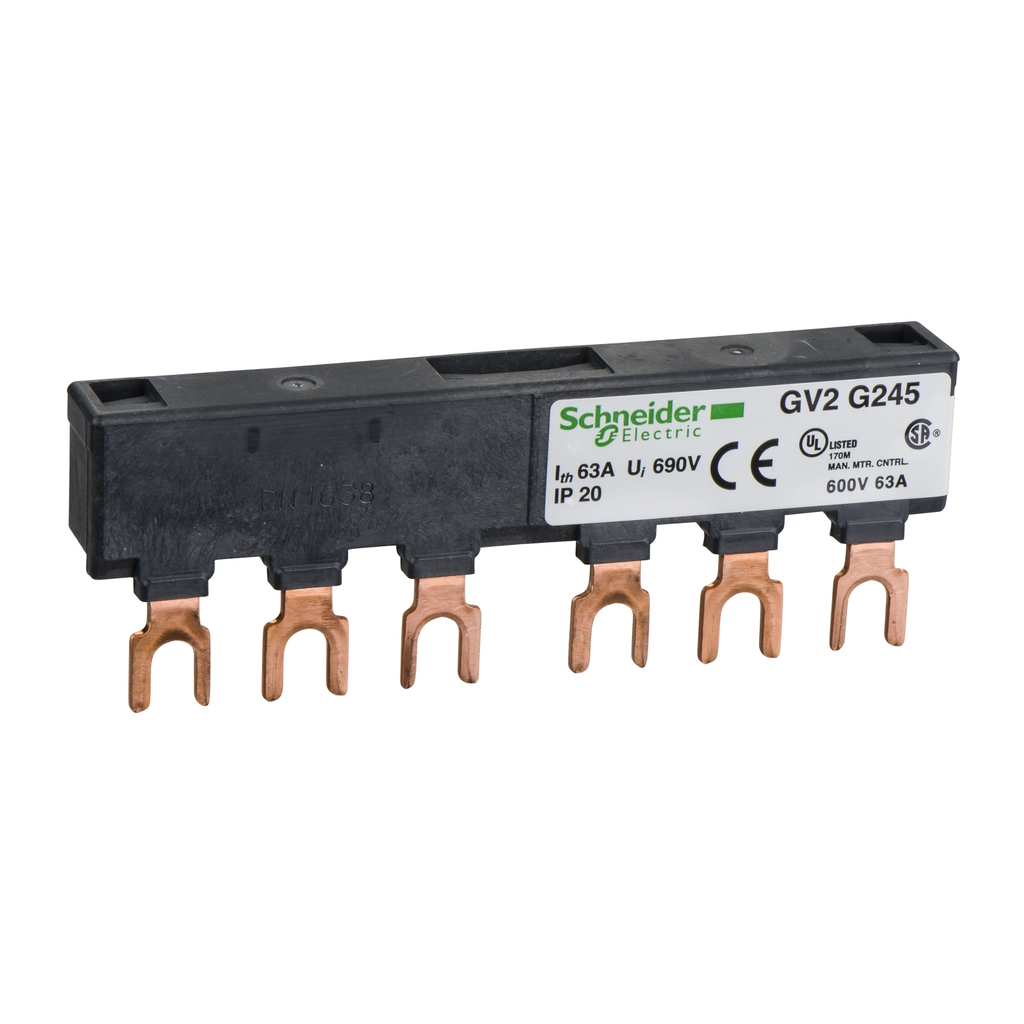

Linergy FT, Comb busbar, 63A, 2 tap-offs, 45mm pitch

MANUAL STARTER BUSBAR 600VAC 6

SQDGV2G245 GV2G245 3389110555950
25.20 / EA
http://schema.org/OutOfStock
Mayer-DDS-Linergy FT, Comb busbar, 63A, 2 tap-offs, 45mm pitch-1
  • Country of Origin: Romania
  • Length: 89 mm
  • Net Weight: 0.036 kg
  • Warranty Length: 18 mth
  • Weight: 0.036 kg
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
QTY
  • Product Description
  • Specifications
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
  • Specifications
    • Country of Origin : Romania
    • Length : 89 mm
    • Weight : 0.036 kg
    • Connection Pitch : 45 mm
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : comb busbar
    • [Ith] Conventional Free Air Thermal Current : 63 A
    • Product Name : FT
    • Range : Linergy
    • Poles Description : 3P
    • Number Of Tap-Offs : 2
    • Range Compatibility : TeSys GV2 || TeSys Deca || TeSys U
    • Device Short Name : GV2G
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2207006
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2207006
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • [Ui] Rated Insulation Voltage : 690 V
    • Length : 89 mm
    • Net Weight : 0.036 kg
    • Fixing Mode : terminals
  • Contractual warranty
    • Warranty : 18 months
