PASS & SEYMOUR

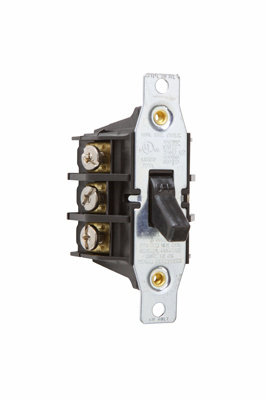

Three Pole Three Phase AC Manual Controller

SWITCH 30A 600V 3PH 3P

PSS7803MD 7803-MD 785007267686
120.49 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Three Pole Three Phase AC Manual Controller-1
  • Country of Origin: Mexico
  • Depth: 1.753 in
  • Height: 3.67 in
  • Width: 1.825 in
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.
QTY
  • Product Description
  • Features
  • Specifications
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.
  • Certifications
    • cULus Listed
  • Features
    • High Horsepower rating of 20HP
    • Gull-wing shaped brass terminal pressure clamps
    • Constructed of glass-reinforced thermoplastic
    • UL508 and cULus Listing of individual device and assembled device within enclosure
    • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
    • Two-point contact arm design reduces overall unit size
    • Two oversized silver alloy contacts withstand years of use; improve heat dissipation by distributing arc energy
    • One-piece contact carrier constructed of glassreinforced thermoplastic ensures long-lasting ““make and break”” performance
  • Specifications
    • Depth : 1.753 in
    • Height : 3.67 in
    • Product Line : Pass & Seymour
    • Width : 1.825 in
    • Country of Origin : Mexico
