HUBBELL WIRING DEVICES

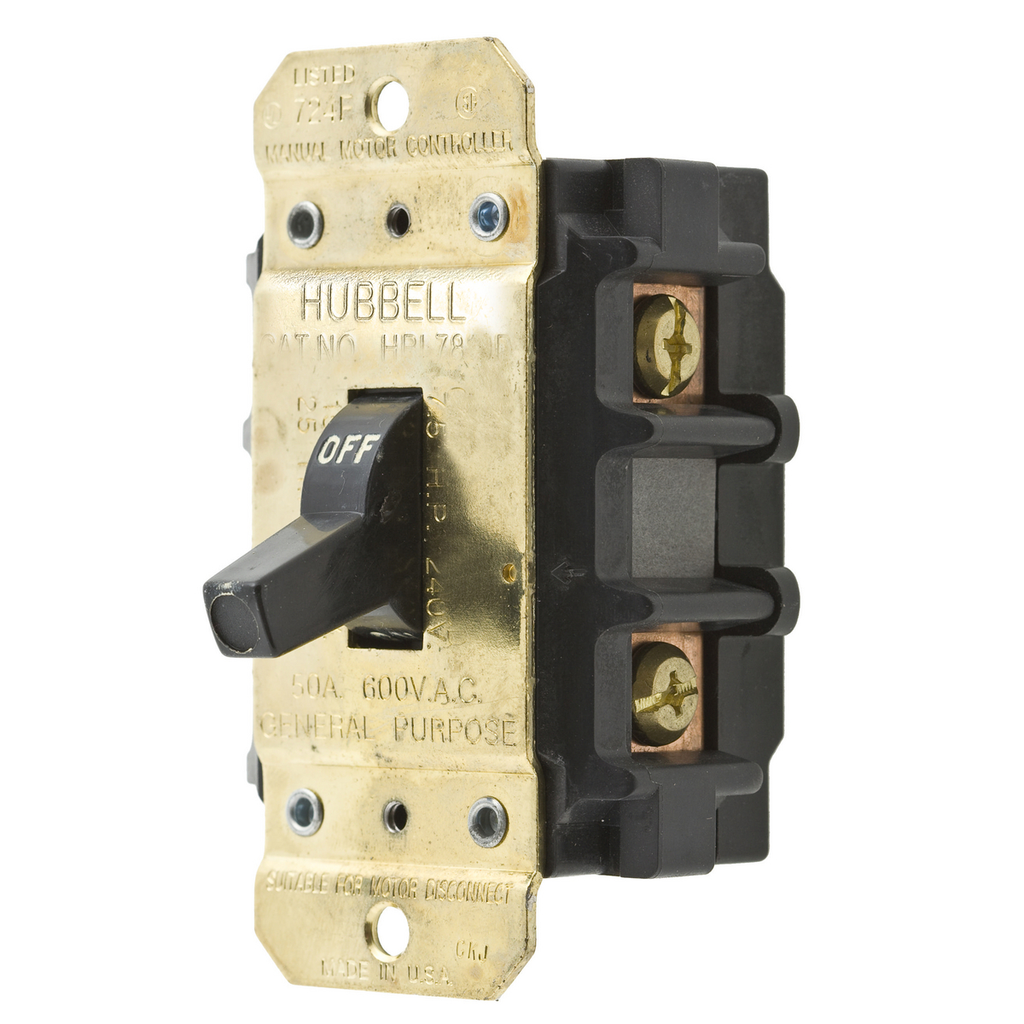

Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 50A 600V AC, Side Wired Only

HWDK HBL7852D 50A 600V 2P DISC

HUBHBL7852D HBL7852D 783585202860
161.54 / EA
http://schema.org/OutOfStock
Mayer-DDS-Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 50A 600V AC, Side Wired Only-1
  • Amperage: 50 A
  • Construction: Fabricated
  • Current: 50 A
  • Horsepower: 15 hp
  • Material: Stainless Steel
  • Number of Poles: 2
  • Wattage: 30000 W
  • Weight: 0.5 lb
  • Width: 2.5 in
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 50A 600V AC, Side Wired Only
QTY
  • Product Description
  • Features
  • Specifications
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 50A 600V AC, Side Wired Only
  • Features
    • Optional side guard for close wall applications
    • Strong on/off action with quick-make slow break operation
    • Thermoset body provides superior dielectric strength
    • Standard Product
  • Specifications
    • Country of Origin : United States
    • Current / Amperage Rating : 50 A
    • Width : 2.500 in
    • Horsepower - Maximum : 15
    • Industry Standard(s) : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Performance : Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
    • Current Rating : 50
    • Number of Poles : 2 Pole
    • Special Features : Standard Product
    • Standard : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Type : Side Wire
    • Voltage Rating : 600 VAC
    • Voltage Rating Description : 600 VAC
    • Weight : 0.5 lb.
    • Engineering Drawing 1 Display Text : HBL7852D AutoCAD Drawing
    • General Literature Asset 1 Display Text : Circuit-Lock® Rounded Sloped Top Motor Disconnects
    • General Literature Asset 2 Display Text : Circuit-Lock® Motor Disconnects
    • General Literature Asset 3 Display Text : Wiring Device Solutions for Strategic Manufacturing Facilities
    • Amperage Rating : 50 A
    • Connectivity : Side Wired
    • Dielectric Strength : 2,200V AC minimum for 1 minute
    • Display Size : Standard Sized Product
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • Load Capacity : Inductive
    • Number Of Poles : 2 Pole
    • Operating Cycles : 10,000 Cycles Minimum
    • Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
    • Phase : Single Phase
    • Wattage : 30000
    • Class Code : A16
    • Description - Invoice : DISCONNECT 50A 600V 2P DISC SW
    • Freight Class Code : 06168002
    • Harmonization Code : 8536509040
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Sub Class Code : A16A240
    • Material - Mounting Hardware : Screw Mounting
    • Construction : Fabricated
    • Material : Stainless Steel
    • Series : Standard Toggle
    • Base Unit of Measure : EA
    • BOX SIZE : 5.200x12.600x4.300 (in)
    • Carton - Gross Weight per Pack : 5.000 lb.
    • Carton - Number of Sub Packs : 30
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585202860
    • Carton - Total Units : 10 EA
    • Case - Total Units : 30 EA
    • Case Weight : 6.107 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet - GTIN - Package : 70783585202869
    • Pallet Height : 48.000 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 1333.200 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Yes
