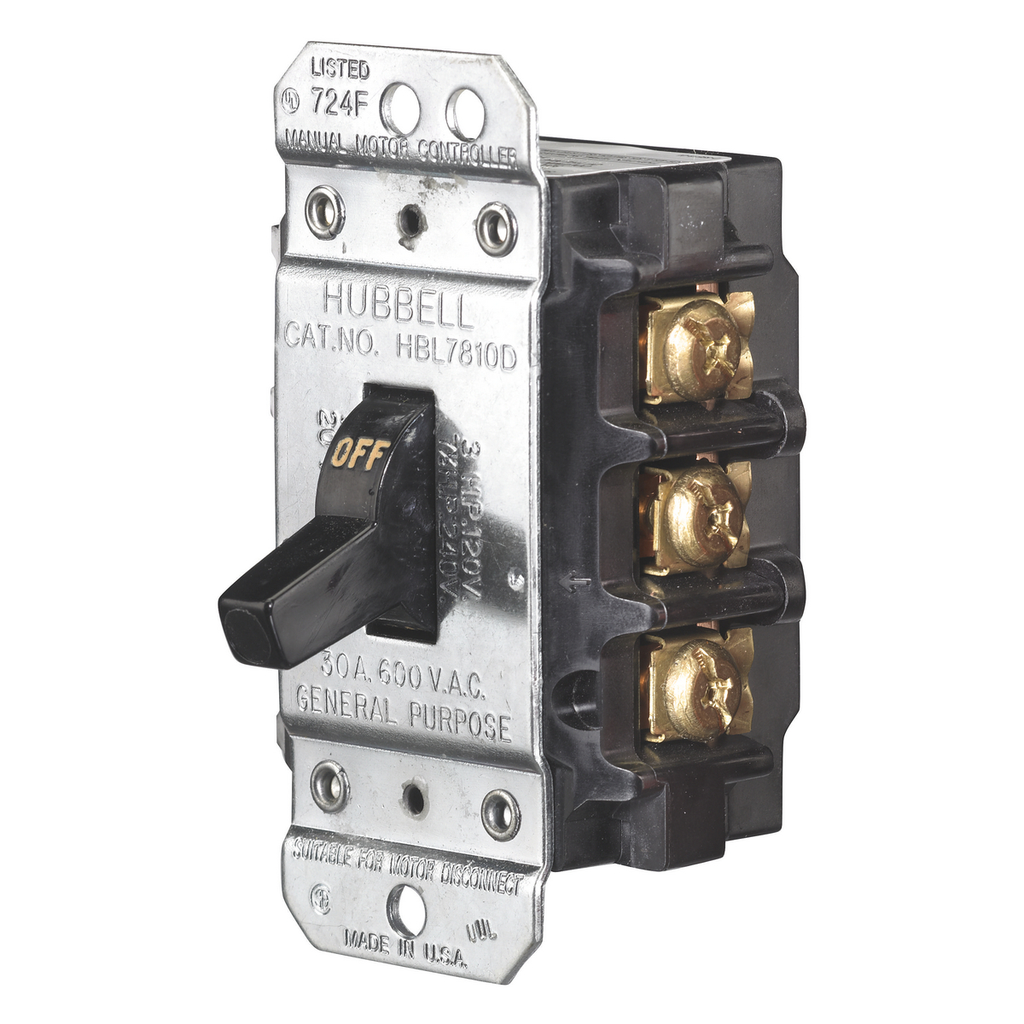

Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black

HWDK HBL7810D 30A 600V 3P DISC

HUBHBL7810D HBL7810D 783585202792
141.83 / EA
http://schema.org/OutOfStock
Mayer-DDS-Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black-1
  • Amperage: 30 A
  • Country of Origin: USA
  • Current: 30 A
  • Horsepower: 20 hp
  • Material: Stainless Steel
  • Number of Poles: 3
  • Wattage: 18000 W
  • Weight: 0.55 lb
  • Width: 2.418 in
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black
QTY
  • Product Description
  • Features
  • Specifications
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black
  • Features
    • Optional Side Guard for close wall applications
    • Clamping plate for secure back or side wiring
    • Thermoset body provides resistance to electrical arc tracking
    • Standard Product
  • Specifications
    • Country of Origin : US
    • Current / Amperage Rating : 30 A
    • Width : 2.418 in
    • Each - Width : 2.418 in
    • Horsepower - Maximum : 20
    • Industry Standard(s) : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Performance : Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
    • Standards - RoHS Compliance Status : CM
    • Current Rating : 30
    • Number of Poles : 3 Pole
    • Special Features : Standard Product
    • Standard : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Type : Back & Side Wire
    • Voltage Rating : 600 VAC
    • Voltage Rating Description : 600 VAC
    • Amperage Rating : 30 A
    • Connectivity : Back and Side Wired
    • Dielectric Strength : 2,200V AC minimum for 1 minute
    • Display Size : Standard Sized Product
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • Load Capacity : Inductive
    • Number Of Poles : 3 Pole
    • Operating Cycles : 10,000 Cycles Minimum
    • Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
    • Phase : Three Phase
    • Wattage : 18000 W
    • Weight : 0.55 lb.
    • Class Code : A16
    • Description - Invoice : 30A 600V 3P DISC SW
    • Freight Class Code : 06168002
    • Harmonization Code : 8536509901
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : HBL7810
    • Sub Class Code : A16A240
    • Material - Mounting Hardware : Screw Mounting
    • Material : Stainless Steel
    • Series : Standard Toggle
    • Base Unit of Measure : EA
    • BOX SIZE : 5.048x12.488x4.048 (in)
    • Carton - Gross Weight per Pack : 5.500 lb.
    • Carton - Number of Sub Packs : 30
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585202792
    • Carton - Total Units : 10 EA
    • Case - Total Units : 30 EA
    • Case Weight : 16.500 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : Yes
