TeSys GV2 motor starter, reduced flush mounting enclosure, for TeSys GV2ME, NEMA 1 and IP41

TeSys GV2 motor starter, reduced flush mounting enclosure, for TeSys GV2ME, NEMA 1 and IP41

SQDGV2MP03 GV2MP03 3389110446982
26.62 / EA
http://schema.org/OutOfStock
Mayer-DDS-TeSys GV2 motor starter, reduced flush mounting enclosure, for TeSys GV2ME, NEMA 1 and IP41-2
  • Certifications: CE, UKCA
  • Depth: 98 mm
  • Height: 133 mm
  • Net Weight: 0.115 kg
  • Warranty Length: 18 mth
  • Width: 93 mm

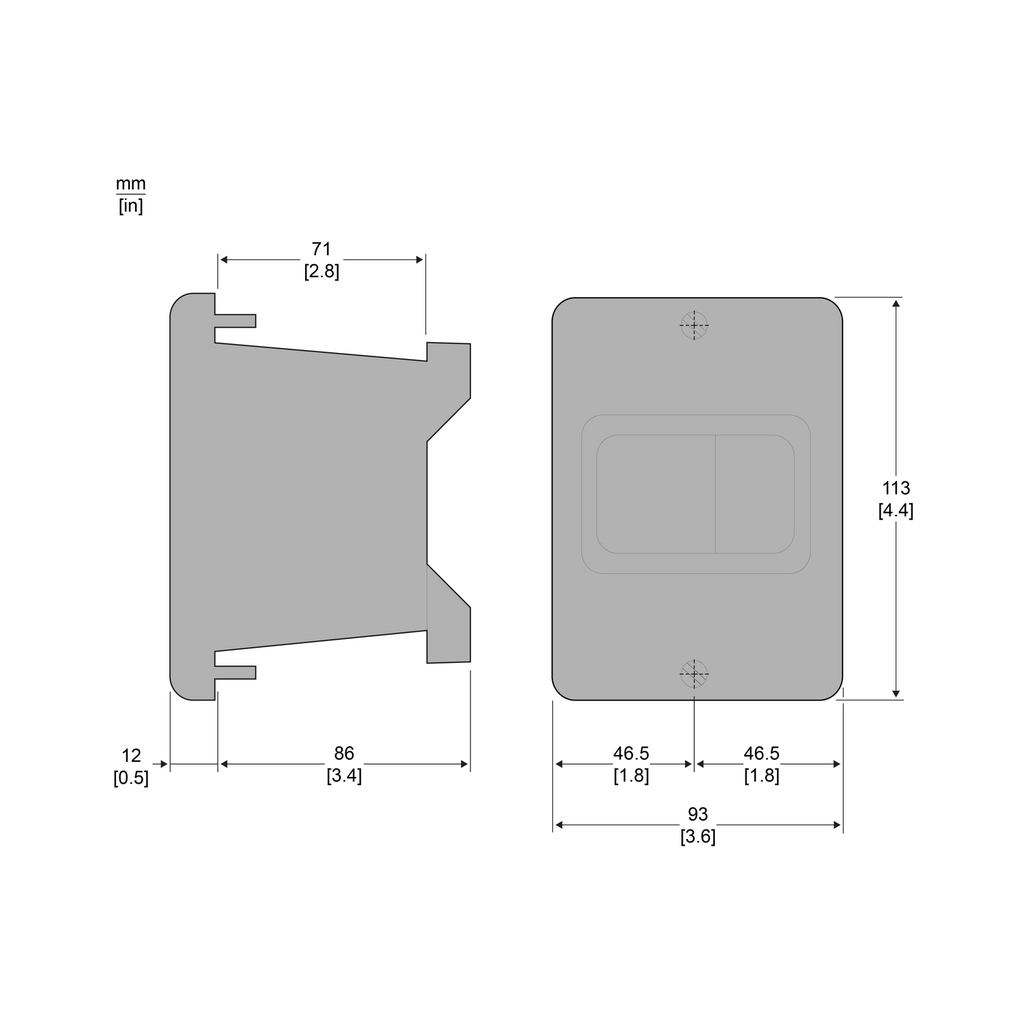

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2 motor starter protector and a LC1D IEC contactor assembled together into one device. This enclosure is for GV2ME manual starters and protectors with or without accessories Enclosure is flush mounting with front face reduced. Auxiliary contacts can only be added on the right hand side of the GV2ME. The enclosure rating is NEMA 1 and IP41. Enclosure is 5.24 inches tall, 3.66 inches wide and 3.86 inches deep. This enclosure is not UL listed, but is CSA certified.
QTY
  • Product Description
  • Specifications
TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2 motor starter protector and a LC1D IEC contactor assembled together into one device. This enclosure is for GV2ME manual starters and protectors with or without accessories Enclosure is flush mounting with front face reduced. Auxiliary contacts can only be added on the right hand side of the GV2ME. The enclosure rating is NEMA 1 and IP41. Enclosure is 5.24 inches tall, 3.66 inches wide and 3.86 inches deep. This enclosure is not UL listed, but is CSA certified.
  • Environment
    • Product Certifications : UKCA || CE
    • Ip Degree Of Protection : IP41 front face
    • Environmental Characteristic : standard environment
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111273EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 133 mm
    • Net Weight : 0.115 kg
    • Width : 93 mm
    • Depth : 98 mm
    • Auxiliary Mounting Location : right
  • Specifications
    • Accessory / Separate Part Category : mounting accessory
    • Product Or Component Type : enclosure
    • Enclosure/Cubicle Description : reduced flush mounting
    • Range : TeSys
    • Product Compatibility : GV2ME
    • Device Short Name : GV2MP
