Reduced flush mounting enclosure, for TeSys GV2ME motor starter, IP55

Reduced flush mounting enclosure, for TeSys GV2ME motor starter, IP55

SQDGV2MP04 GV2MP04 3389110446999
47.42 / EA
http://schema.org/OutOfStock

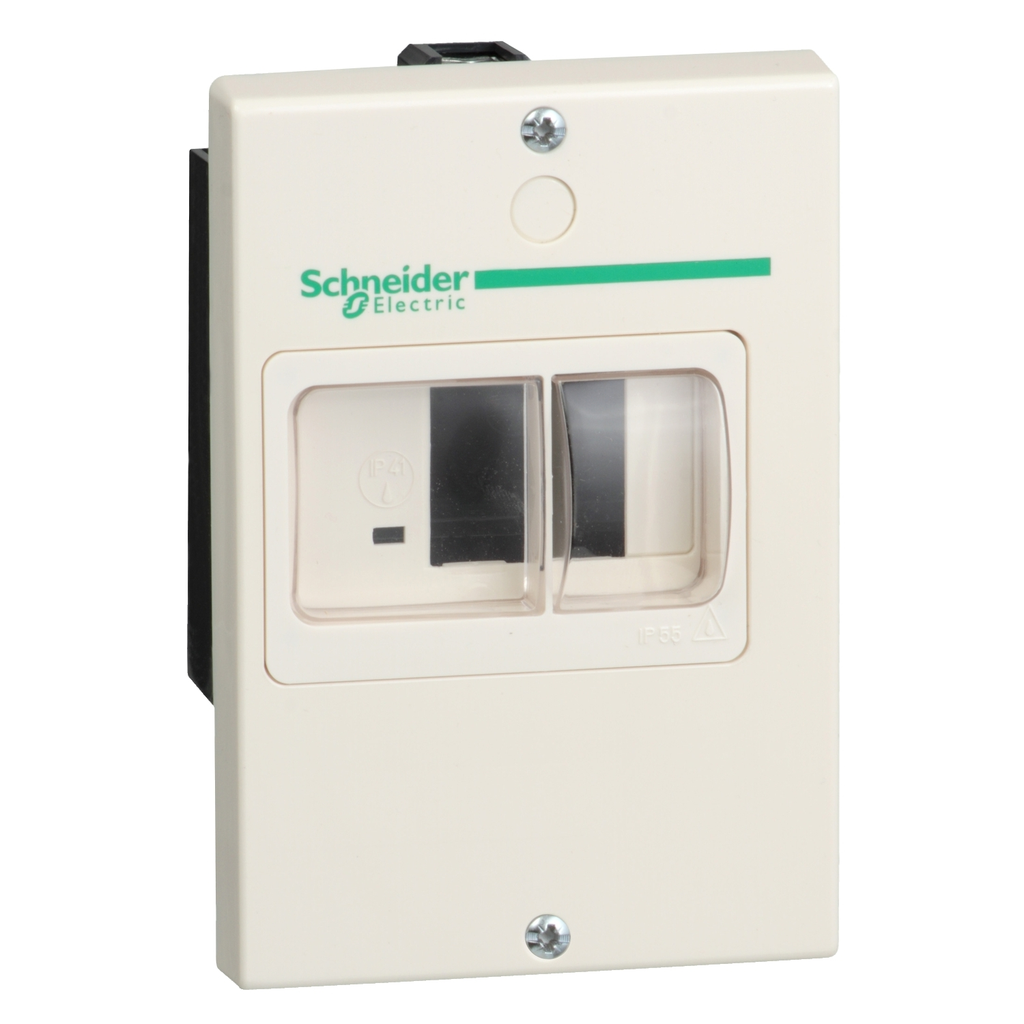

Mayer-DDS-Reduced flush mounting enclosure, for TeSys GV2ME motor starter, IP55-1
  • Certifications: CE, UKCA
  • Depth: 98 mm
  • Height: 133 mm
  • Net Weight: 0.13 kg
  • Warranty Length: 18 mth
  • Width: 93 mm
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, front face reduced, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on RH side of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
QTY
  • Product Description
  • Specifications
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, front face reduced, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on RH side of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
  • Environment
    • Product Certifications : UKCA || CE
    • Ip Degree Of Protection : IP55 front face
    • Environmental Characteristic : standard environment
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111273EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 133 mm
    • Net Weight : 0.13 kg
    • Width : 93 mm
    • Depth : 98 mm
    • Auxiliary Mounting Location : right
  • Specifications
    • Accessory / Separate Part Category : mounting accessory
    • Product Or Component Type : enclosure
    • Enclosure/Cubicle Description : reduced flush mounting
    • Range : TeSys
    • Product Compatibility : GV2ME
    • Device Short Name : GV2MP
