Flush mounting enclosure for TeSys GV2ME, IP55

MANUAL STARTER ENCLOSURE IP55

SQDGV2MP02 GV2MP02 3389110213621
56.75 / EA
http://schema.org/OutOfStock

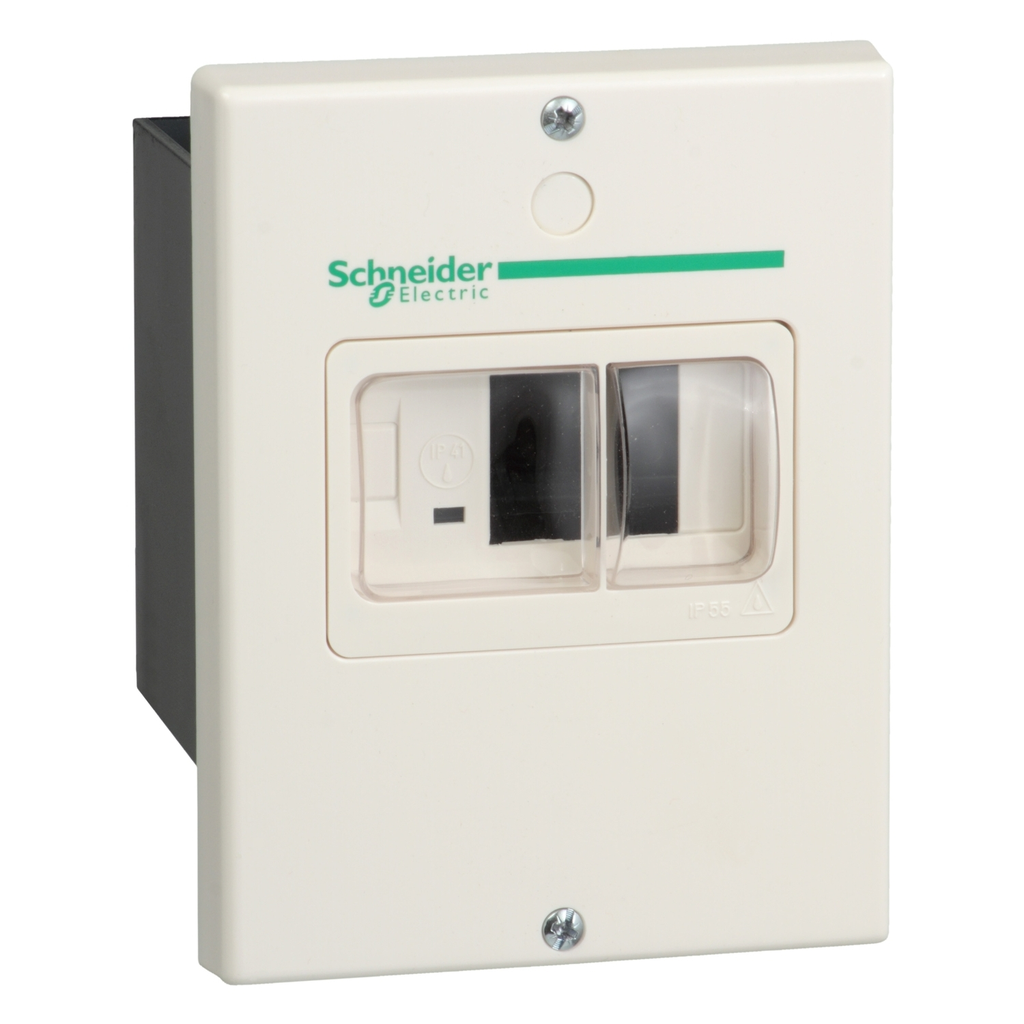

Mayer-DDS-Flush mounting enclosure for TeSys GV2ME, IP55-1
  • Country of Origin: Czechia
  • Depth: 83 mm
  • Height: 140 mm
  • Net Weight: 0.13 kg
  • Warranty Length: 18 mth
  • Weight: 0.13 kg
  • Width: 106.5 mm
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
QTY
  • Product Description
  • Features
  • Specifications
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UKCA || CE
    • Ip Degree Of Protection : IP55 front face
    • Environmental Characteristic : standard environment
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2107010
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Scip Number : 04104e70-ba29-493c-b2cc-b5837d1f879b
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2107010
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 107 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 107.10222911585338
  • Complementary
    • Height : 140 mm
    • Net Weight : 0.13 kg
    • Width : 106.5 mm
    • Depth : 83 mm
    • Auxiliary Mounting Location : right || left
  • Specifications
    • Country of Origin : Czechia
    • Width : 106.5 mm
    • Height : 140 mm
    • Weight : 0.13 kg
    • Accessory / Separate Part Category : mounting accessory
    • Product Or Component Type : enclosure
    • Enclosure/Cubicle Description : flush mounting
    • Range : TeSys
    • Product Compatibility : GV2ME
    • Device Short Name : GV2MP
