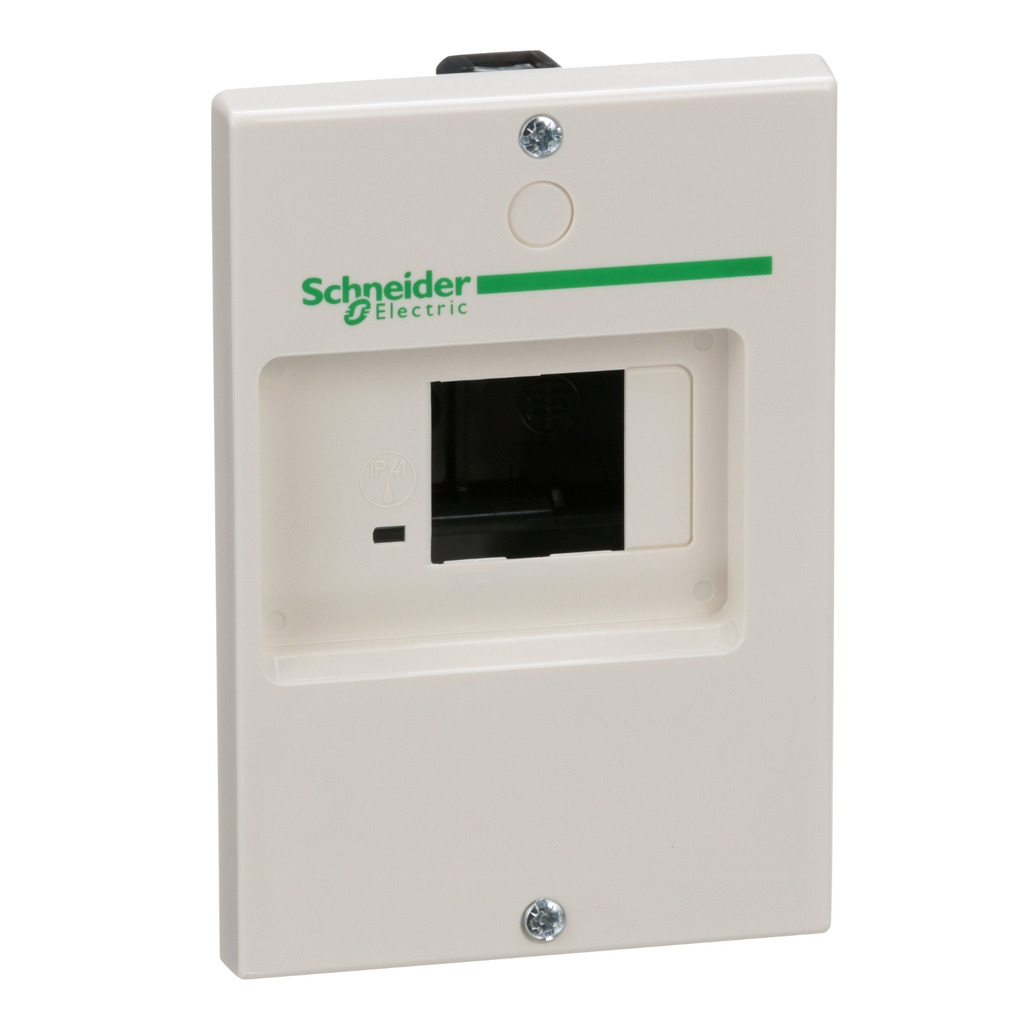

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.

• Features
• Enclose GV2ME to protect from short circuits and overloads by Control, Isolation and Protection
• Stable installation with strong reliability
• Sustainability compliant
• Use with complementary circuit breaker and pushbutton allow the construction of safety direct-on-line starters
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.03472602979129257, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1702364521788197
• Carbon Footprint Of The Installation Phase A5 : 0.005918356672421865, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6413261837068863
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.160559640010947
• Auxiliary Mounting Location : left, right
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : GV2MP
• Device Short Name : GV2MP
• Environmental Characteristic : standard environment
• Package Weight Lbs : 217.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosure
• Range : TeSys
• Range Of Product : TeSys GV2
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : Flush mounting enclosure for TeSys GV2ME, IP41
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP1112073EN
• Pep Verification Date : 2025-08-11
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed1-EN -2012 12 11
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
• Functional Unit Unit : unit
• Enclosure Cubicle Description : flush mounting
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Compliant
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 4.0127666623603675
• Environmental Disclosure : ENVPEP1112073EN
• IP Degree Of Protection : IP41 front face
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : GV2ME
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1112073EN
• Pep Verification Date : 2025-08-11
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed1-EN -2012 12 11
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : enclosure
• Range Of Product : TeSys GV2
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 83 mm
