SQUARE D

NEMA Motor Starter, Type S, nonreversing, enclosure, for 8536SE, NEMA Size 3, NEMA 1

CONTACTOR+STARTER ENCLOSURE 85

SQD9991SEG8 9991SEG8 785901759096
346.46 / EACH
http://schema.org/OutOfStock

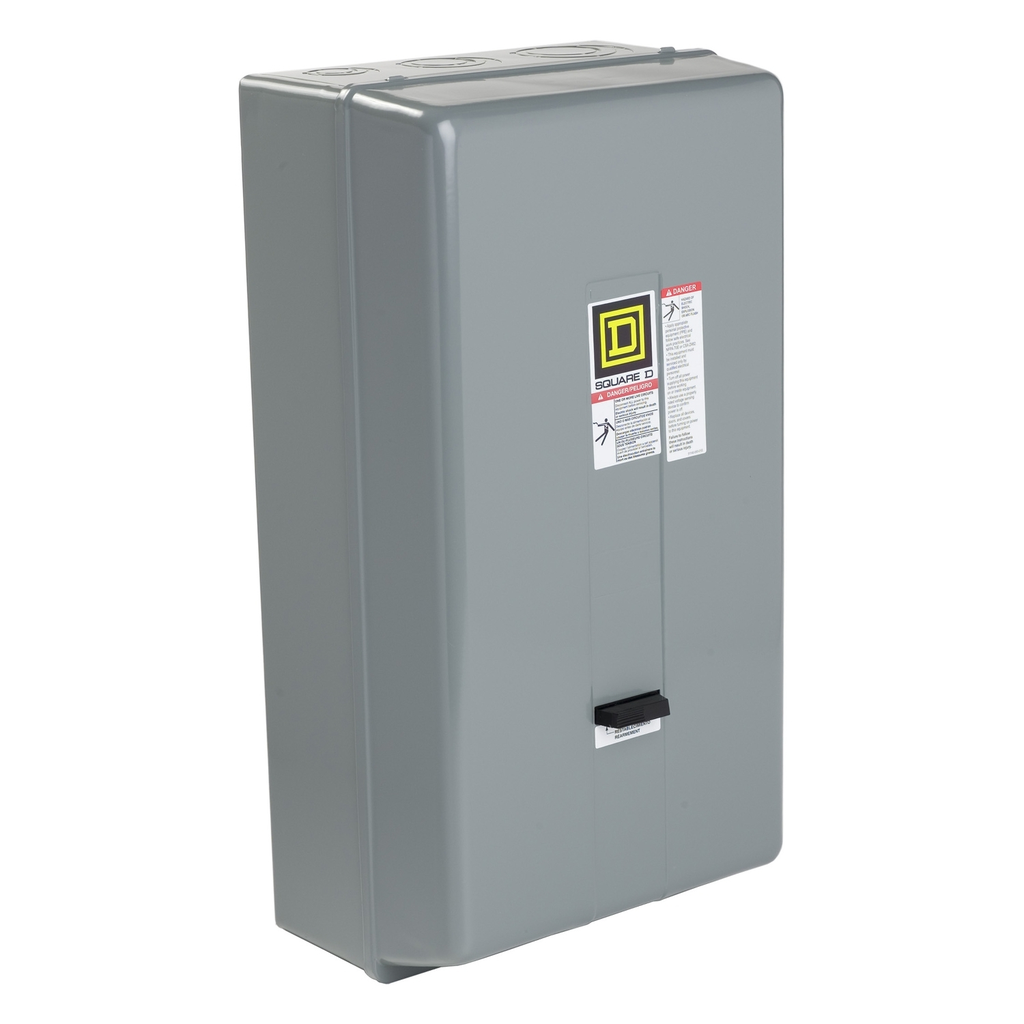

Mayer-DDS-NEMA Motor Starter, Type S, nonreversing, enclosure, for 8536SE, NEMA Size 3, NEMA 1-1
  • Country of Origin: USA
  • Depth: 8 in
  • Height: 21.81 in
  • Warranty Length: 18 mth
  • Width: 11.44 in
Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 3. This NEMA 1 sheet steel enclosure brushed finish. Four 3/8 inch screws are used to mount this enclosure. Enclosure is 21.81 inches tall, 11.44 inches wide and 8.00 inches deep.
QTY
  • Product Description
  • Specifications
Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 3. This NEMA 1 sheet steel enclosure brushed finish. Four 3/8 inch screws are used to mount this enclosure. Enclosure is 21.81 inches tall, 11.44 inches wide and 8.00 inches deep.
  • Specifications
    • Country of Origin : United States
    • Width : 11.44 in
    • Height : 21.81 in
    • Product Or Component Type : enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Height : 21.81 in
    • Nema Size : 3
    • Width : 11.44 in
    • Depth : 8.00 in
  • Environmental data
    • Take-Back : No
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Eu Rohs Directive : Under investigation
