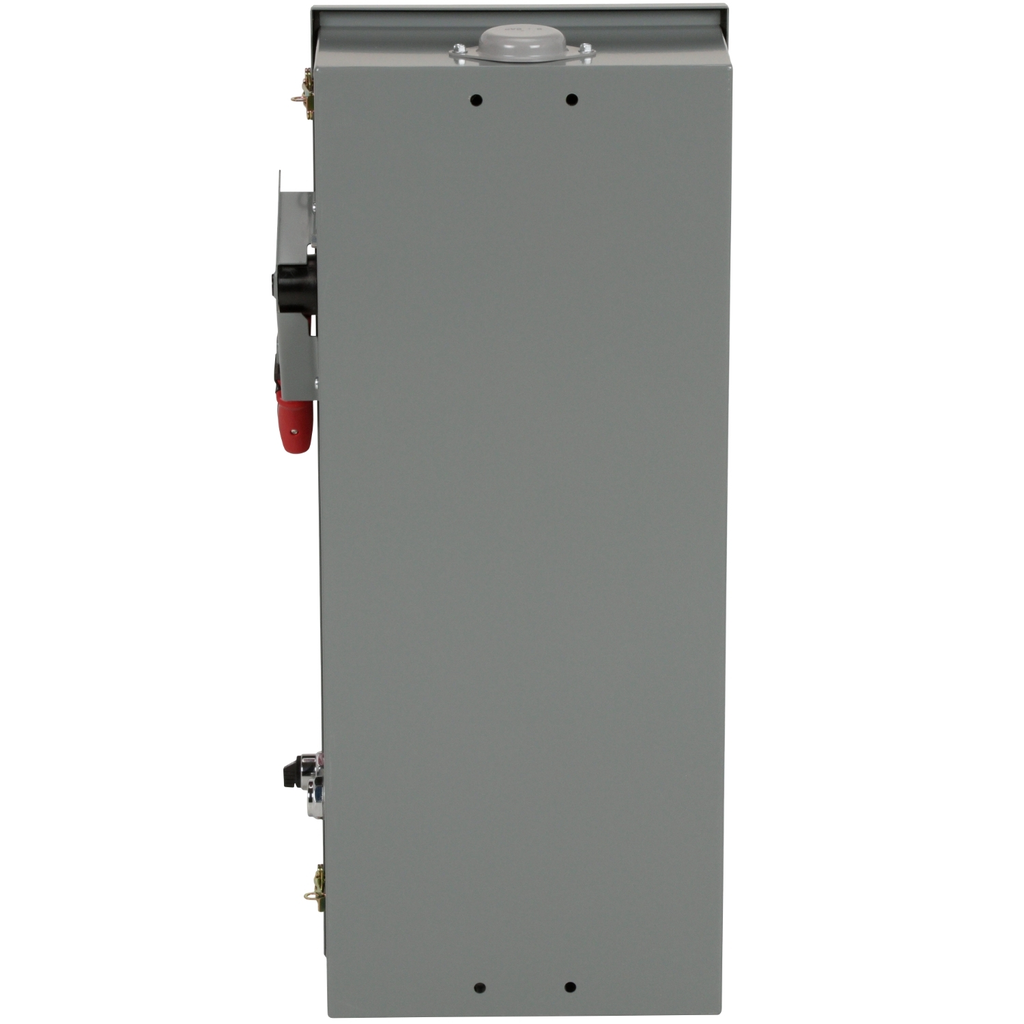

Pump Panel, NEMA Type S, Well Guard, Size 1, 27A, 10HP, 5kA SSCR, 30A fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R

PUMP PANEL 480VAC 27AMP NEMA +

SQD8940SSC4010 8940SSC4010 785901011781
2124.59 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pump Panel, NEMA Type S, Well Guard, Size 1, 27A, 10HP, 5kA SSCR, 30A fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R-2
  • Country of Origin: Mexico
  • Number of Poles: 3
  • Warranty Length: 18 mth
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxiliary equipment. These panels use Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch for Class H or K fuses. This panel has a 3 pole NEMA Size 1 non-reversing starter that has a 27 ampere rating. This NEMA Size 1 starter has maximum of 3 HP, 5 HP, 7.5 HP and 10 HP ratings three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 39.05 inches tall, 13.73 inches wide and 9.70 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxiliary equipment. These panels use Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch for Class H or K fuses. This panel has a 3 pole NEMA Size 1 non-reversing starter that has a 27 ampere rating. This NEMA Size 1 starter has maximum of 3 HP, 5 HP, 7.5 HP and 10 HP ratings three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 39.05 inches tall, 13.73 inches wide and 9.70 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
  • Control Type
    • selector switch HAND-OFF-AUTO)
    • push-button START)
  • Permissible Voltage
    • 600 V AC
  • Enclosure Type
    • weatherproof enclosure indoor/outdoor
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • UC Control Circuit Voltage
    • 480 V AC 60 Hz
    • 440 V AC 50 Hz
  • Accessories
    • 9999SX6
    • 9999SX7
    • 9999SX8
  • Maximum Horse Power Rating
    • 10-10 hp 480 V AC, 3 phase
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Thermal Overload Type
    • Motor Logic solid state class 10/20
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • B2B Bullet Point 1 : Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
    • B2B Bullet Point 2 : Pump panels are extremely customizable with other devices and accessories
    • B2B Bullet Point 3 : Robust design and reliable build for long mechanical life and electrical endurance
    • B2B Bullet Point 4 : Serviceable by replacing contacts and coils rather than replacing the entire product
    • B2B Bullet Point 5 : Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Full VoltageMotor/Line Voltage 480 Vac At 50/60 HzPower Rating 3, 5, 7 1/2, 10 Hp3 PhaseDisconnect Type FusibleDisconnect Rating 30 AmpereOverloads Class 10 Ambient Temperature CompensatedCoil Voltage 440 V At 50 Hz, 480 V At 60 Hz
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2542
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Short Name : class 8940 type SS
    • Energy Efficiency Optimized : False
    • Number Of Poles : 3
    • Package Weight Lbs : 26.308 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range : Square D
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=562289&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Nema Size : 1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : Mexico
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
